Product Info
- Manufacturer:Boltswitch
- Sub-Category:Bolted Pressure
Description
T117WOL

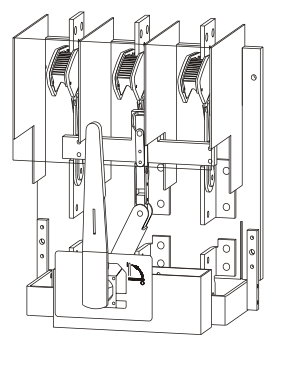

T117WOL is a 1 pole 800 amp 240 volt fusible bolted pressure switch manufactured by Boltswitch, Inc. This heavy-duty disconnect switch features bolted pressure contacts with quick-make, quick-break operators designed for reliable load break performance in industrial and commercial applications. T117WOL accommodates Class T fuses and is rated for use on circuits capable of delivering 200,000 RMS symmetrical amperes short circuit current. The switch features visible silver-plated copper contacts, dead-front construction, and a tease-proof operating mechanism with provisions for padlocking in the open position. Optional shunt trip operators rated 120 VAC (with alternate 24, 48, 125, or 250 VDC coil ratings) are available for this amperage class.
- Amperage: 800 Amp
- Voltage: 240 Volt AC, 125 Volt DC
- Poles: 1 Pole (Double Break)
- Contact Type: Bolted Pressure
- Fuse Class: Class T
- Short Circuit Rating: 200,000 RMS Symmetrical Amperes
- Operator: Quick-Make, Quick-Break Manual
- Construction: Dead Front
- Certifications: UL Listed
- Manufacturer: Boltswitch, Inc., Crystal Lake, Illinois
Specifications
- Part Number: T117WOL
- Manufacturer : Boltswitch
- Brand : Boltswitch
- Category : Switch
- Item Subcategory : Bolted Pressure
- Family : T Series
- Type : T
- Voltage : 240
- Amperage : 800
- Phase : 1
- Poles : 1
- AIC rating : 200kA@240V
- Fuse Class : T
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : 1
- Compatible Frames : SFHA
Product Data
- Weight : 250
