Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- General Electric
- Sub-Category
- Rating Plug
- Series
- Spectra Series
- Frame
- SRPE
- Rated current
- 100
- Max current rating
- 100
- Poles
- 3
- Frame Size
- 100
- Amperage Maximum
- 100
- Amperage Minimum
- 100
- Trip Type
- MICROVERSATRIP-PLUS,MICROVERSATRIP-PM
- UPC
- 783164213126
- GTIN
- 00783164213126
- Dimensions
- 4.25" X 3.15" X 2"
Show all specifications (1 more)
- Weight
- 0.15 lb
Product description & additional details

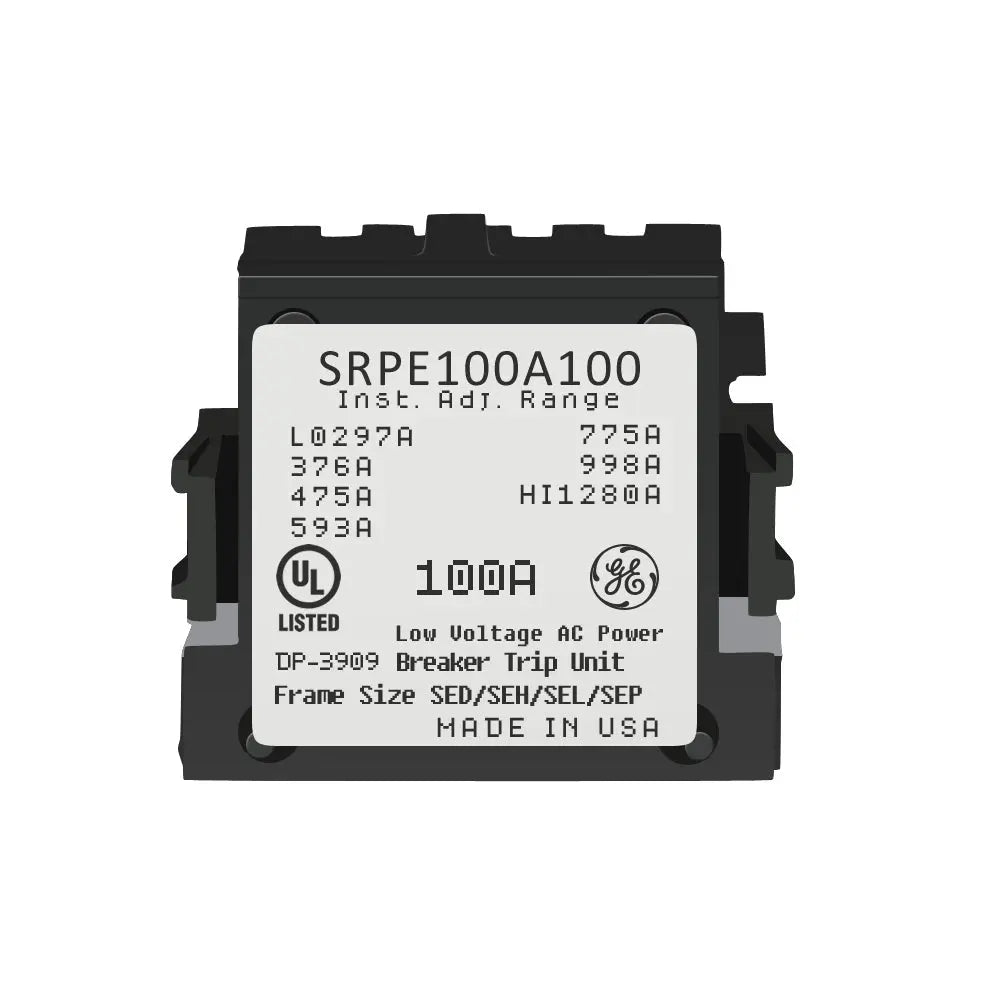

SRPE100A100
SRPE100A100 is a General Electric rating plug designed for Spectra, Power Break, and Power Break II circuit breakers, providing precise amperage configuration for optimal protection.
This UL-listed, interchangeable trip electronic rating plug sets the long-time trip point of compatible circuit breakers to 100A, ensuring your electrical system matches the National Electric Code requirements for cable and bus bar sizing. It is engineered for easy installation and flexibility across the permissible current ratings of the SE150 frame.
Key Specifications
- Amperage: 100A
- Voltage: 480VAC (typical application; verify with your breaker)
- Poles: 3
- Mounting Type: Snap-in, breaker mounting
- Interrupt Rating: Not specified in available data
- Series/Frame: Spectra Series, SE150 frame
- Trip Unit: Interchangeable electronic rating plug
- Certifications: UL Listed (File #E11592), CSA Certified (File #LR40350)
- Dimensions: 4 1/4" x 3 1/4" x 2"
- Weight: 0.030 lbs
- UPC: 783164213126
- GSA Compliance: No
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: SRPE100A100
- Manufacturer : General Electric
- Brand : General Electric
- Category : Circuit Breaker
- Item Subcategory : Rating Plug
- Family : Spectra Series
- Type : SRPE
- Amperage : 100
- Poles : 3
- Frame Size : 100
- Amperage Maximum : 100
- Amperage Minimum : 100
- Trip Type : MICROVERSATRIP-PLUS,MICROVERSATRIP-PM
Product Data
- UPC : 783164213126
- GTIN : 00783164213126
- Dimensions : 4.25" X 3.15" X 2"
- Weight : 0.15 lb
