Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
SND6B120LSIG

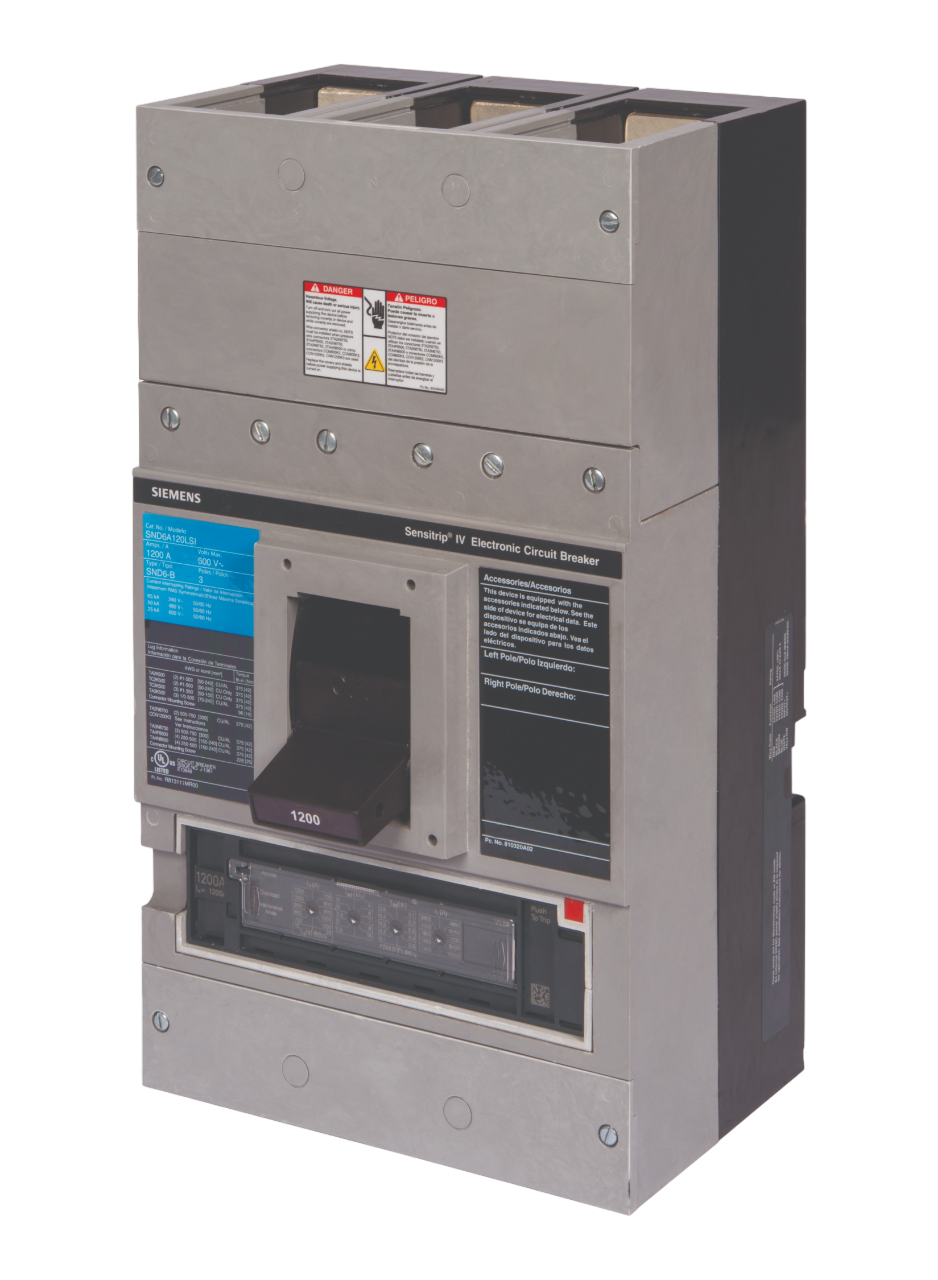

SND6B120LSIG is a Siemens 3-pole molded case circuit breaker rated for 1200 amps and 600 volts AC with a 50kA interrupting rating at 480V.This Siemens SENTRON Sensitrip SND6B120LSIG breaker features a 3-pole design with a 1200A continuous current rating and a 600 VAC voltage rating. It has a 50kA interrupting capacity at 480V and 65kA at 600V, making it suitable for demanding low voltage applications. The breaker includes a standard trip unit and is UL489 certified for safety and reliability.
- Key Specifications
- Amperage: 1200A
- Voltage Rating: 600 VAC
- Number of Poles: 3
- Interrupt Rating: 50kA @ 480V, 65kA @ 600V
- Mounting Type: Molded Case
- Trip Unit: Standard Sensitrip
- Series/Frame: SENTRON SND
- Certifications: UL489
- Feed-Thru Connection: Yes
- Part Number: SND6B120LSIG
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : SND
- Voltage : 600
- Amperage : 1200
- Phase : 3
- Poles : 3
- AIC rating : 50kA@480V
- Connection : Feed-Thru
- Functions : LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault
- Protection : Solid State
- UPC : 804766396953
- GTIN : 00804766396953
- Country of Origin : Mexico
- Dimensions : 8.00 x 9.00 x 16.00 inch
- Weight : 61.5
