Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description

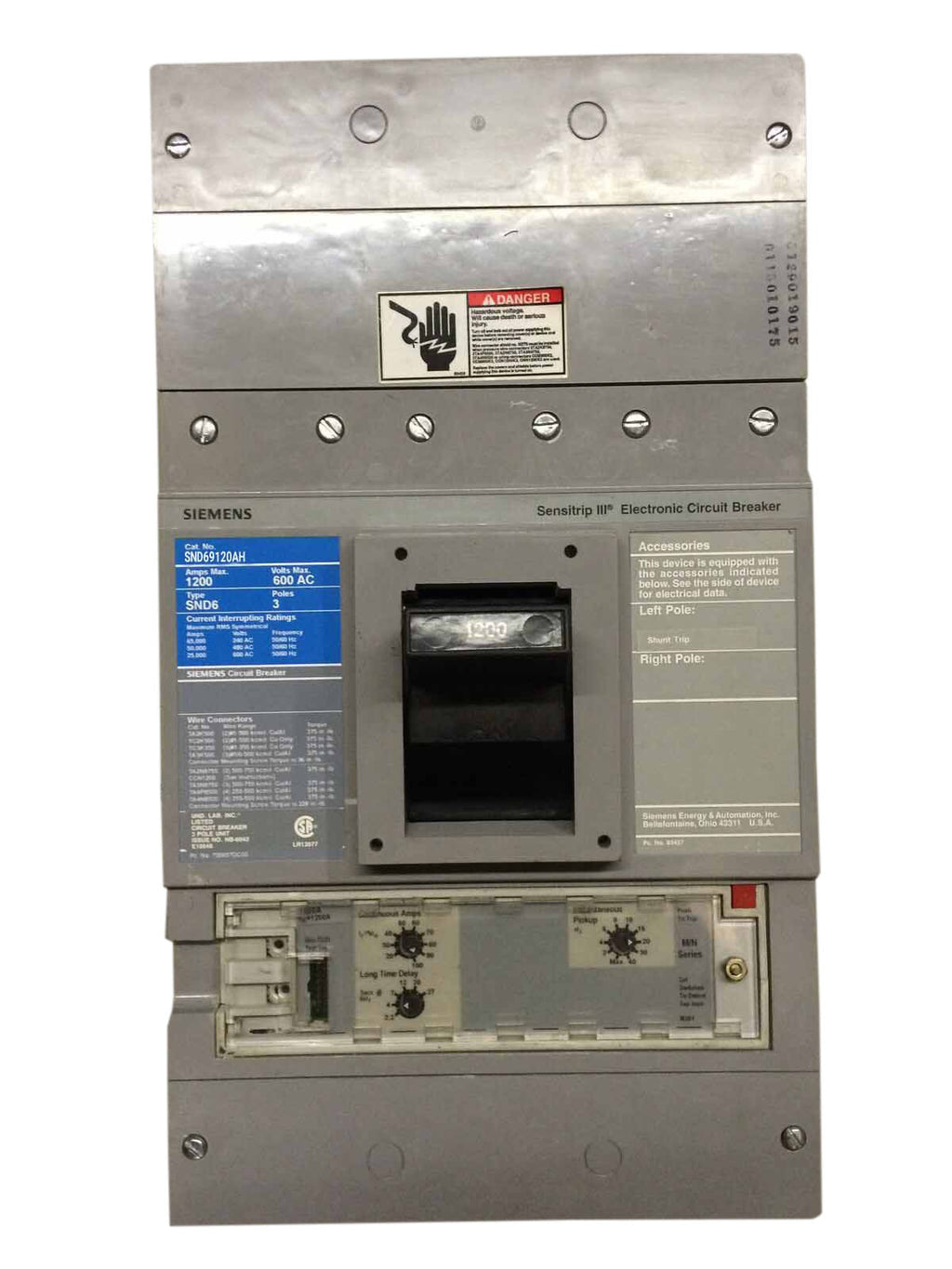

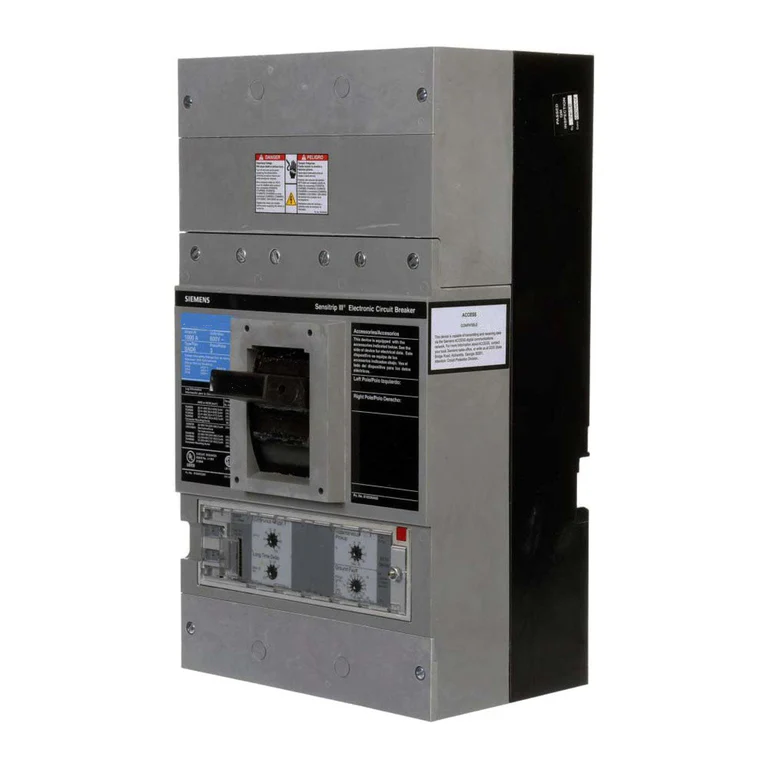

SND69120AH
SND69120AH is a Siemens 1200 amp, 600 volt, 3 pole bolt-on molded case circuit breaker designed for reliable power distribution protection.This Siemens Sentron Series SND69120AH circuit breaker features a 35kA interrupting rating at 480V, solid state trip unit with long time and instantaneous trip functions, and is 100% rated for continuous operation. It is suitable for reverse fed applications and meets UL 489 and IEC 60947-2 standards. The breaker is bolt-on mounted and designed for three-phase AC systems.
- Amperage: 1200A
- Voltage: 600VAC
- Poles: 3
- Interrupt Rating: 35kAIC @ 480V
- Mounting Type: Bolt-On
- Series/Frame: Sentron SND
- Trip Unit: Solid State with Long Time and Instantaneous Functions
- Suitable for Reverse Fed Applications
- Certifications: UL 489, IEC 60947-2
- Lugs Not Included
- Weight: Approximately 61 lbs
Specifications
- Part Number: SND69120AH
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : SND
- Voltage : 600
- Amperage : 1200
- Phase : 3
- Poles : 3
- AIC rating : 35kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Frame Size : ND Frame
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Solid State
Product Data
- UPC : 783643252998
- GTIN : 00783643252998
- Country of Origin : Mexico
- Weight : 71
- Wire Size : 250KCM to 500KCM, Cu/Al
