Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
SND69100AG

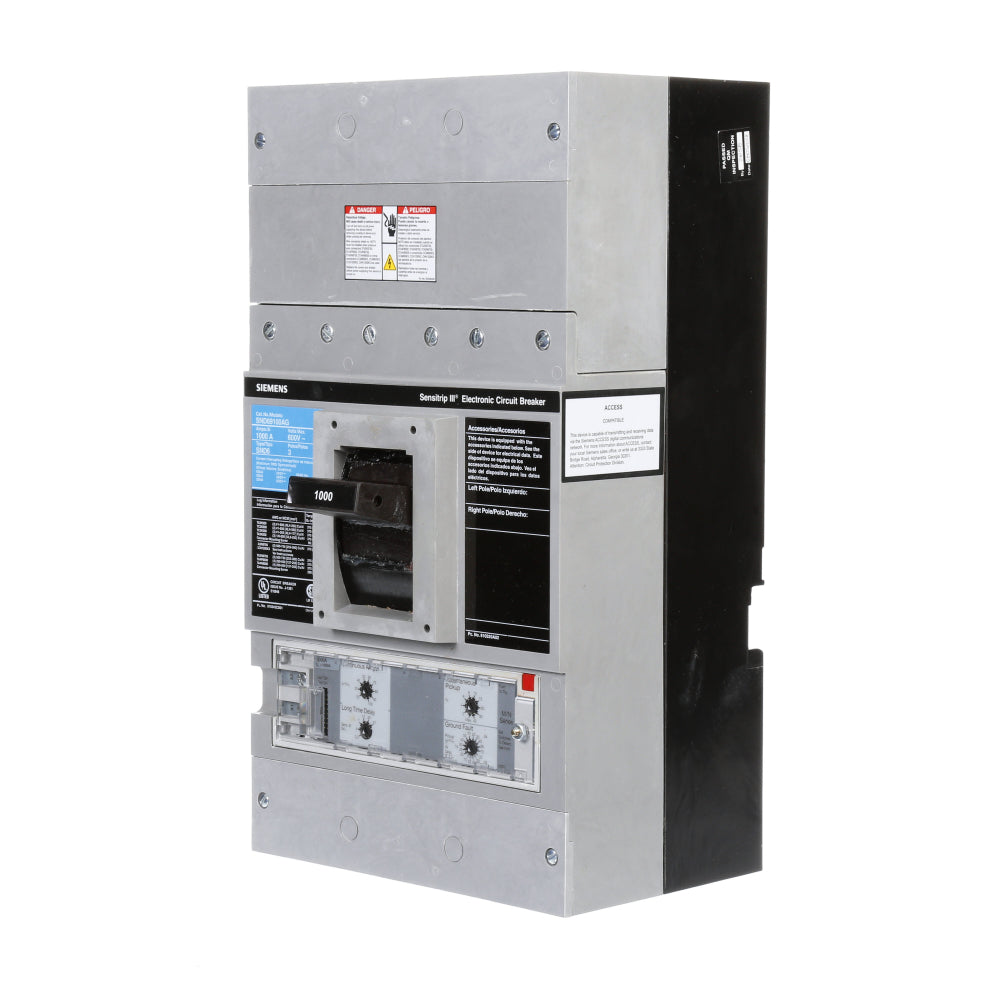

SND69100AG is a 3-pole molded case circuit breaker manufactured by Siemens for industrial power distribution applications. This Sentron Series breaker is rated for 1000 amperes at 600 volts AC and features an electronic Sensitrip trip unit with adjustable long-time and instantaneous functions. The breaker is designed for bolt-on mounting and meets UL 489 and IEC 60947-2 standards. Key Specifications
- Part Number: SND69100AG
- Manufacturer: Siemens
- Amperage: 1000 Amp
- Voltage: 600 VAC
- Poles: 3
- Frame: ND6
- Mounting: Bolt-On
- Trip Unit: Sensitrip Electronic with LIG Adjustable Function
- Interrupting Rating: 50 kAIC at 600V, 65 kAIC at 480V
- Standards: UL 489, IEC 60947-2
- Temperature Rating: 40 Degrees C
Specifications
- Part Number: SND69100AG
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : SND
- Voltage : 600
- Amperage : 1000
- Phase : 3
- Poles : 3
- AIC rating : 35kA@480V
- Connection : Bolt-On
- Functions : LIG - Long-Time, Instantaneous and Ground Fault
- Frame Size : ND Frame
- Protection : Solid State
Product Data
- UPC : 783643251793
- GTIN : 00783643251793
- Country of Origin : Mexico
- Weight : 71
