Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
SND69120AG

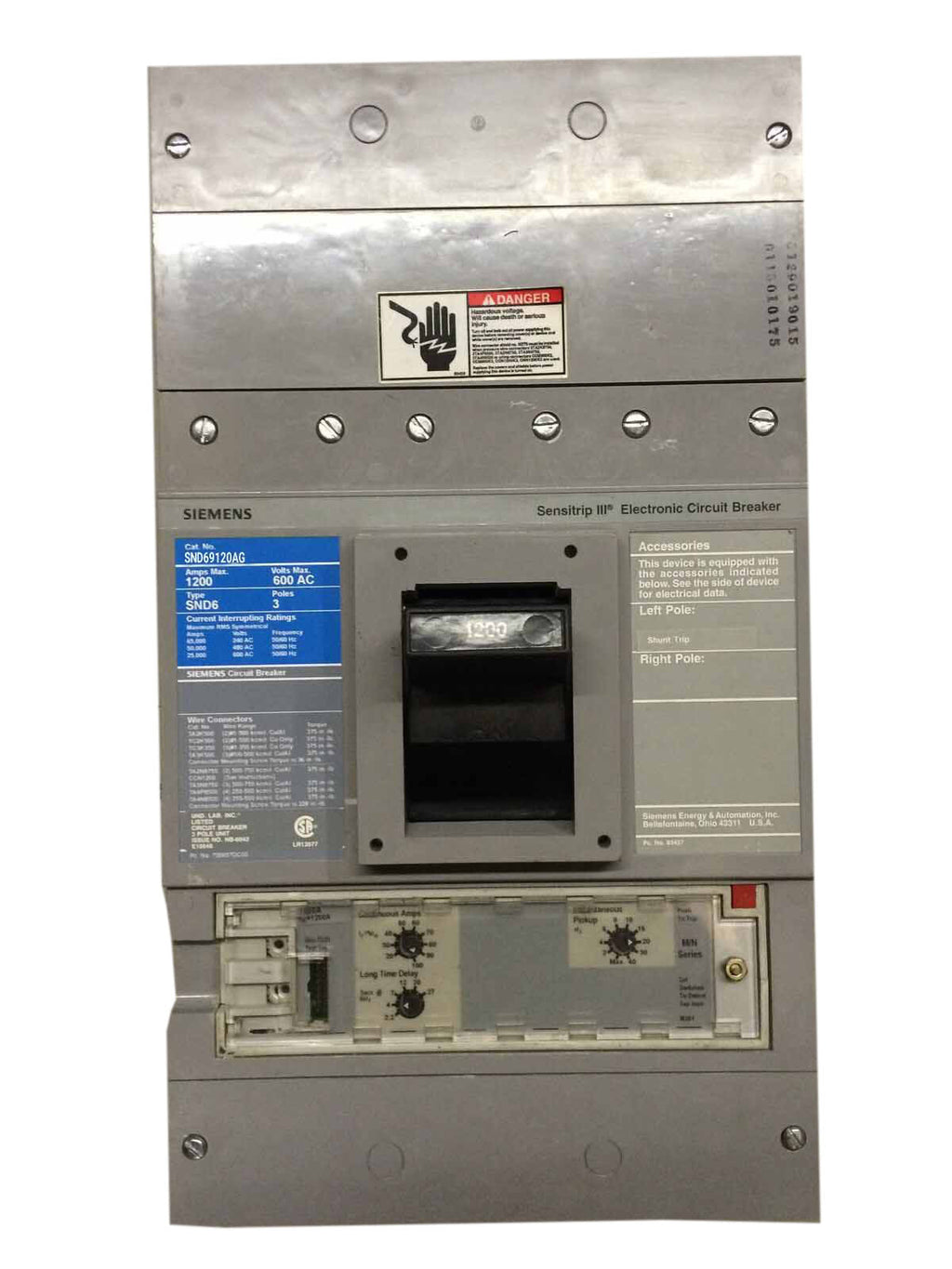

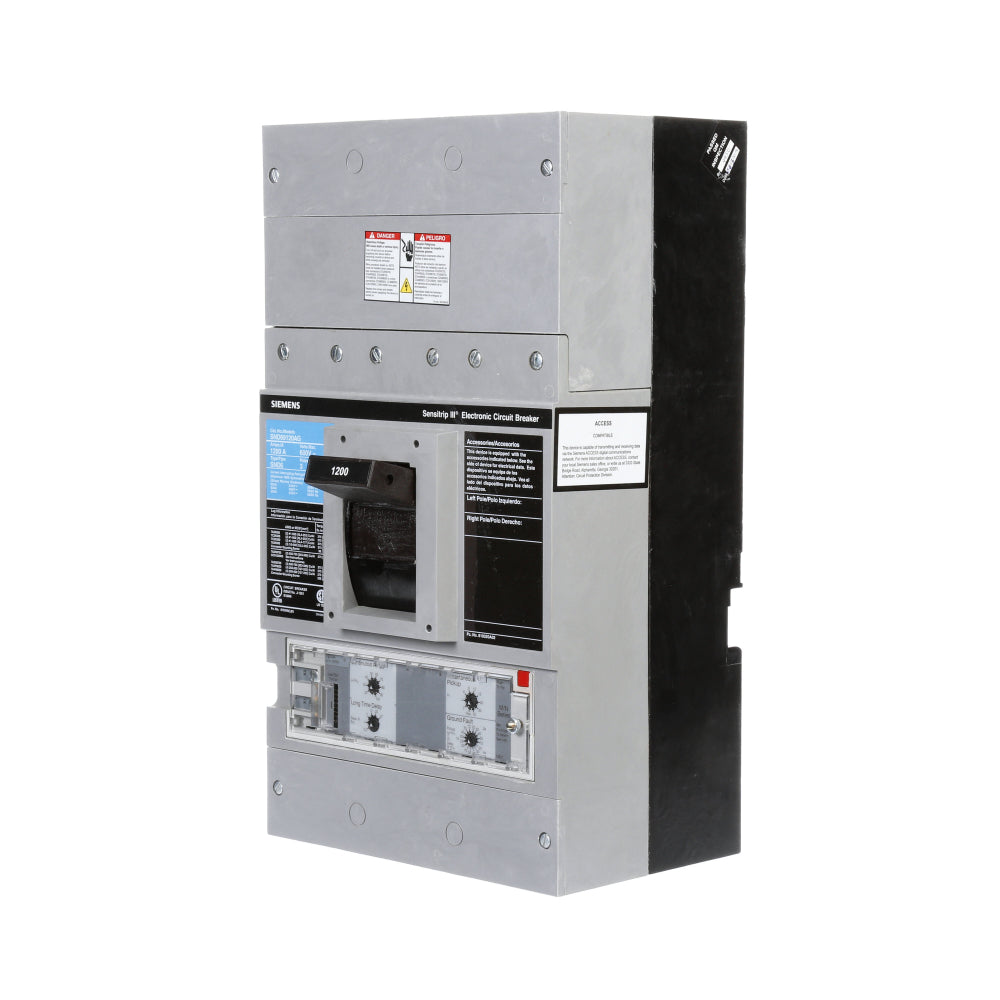

SND69120AG is a Siemens 3 pole molded case circuit breaker rated for 1200 amps and 600 volts with bolt-on mounting.
This Siemens Sentron SND series breaker features a standard ND6 frame designed for low voltage applications. It has a 25kA interrupting rating at 600V and 50kA at 480V, meeting UL 489 and IEC 60947-2 standards. The breaker includes a non-interchangeable LIG trip unit and is rated for operation at 40 degrees Celsius ambient temperature.
- Key Specifications
- Amperage: 1200A
- Voltage: 600V AC
- Poles: 3
- Frame Type: ND6 (SND series)
- Interrupt Rating: 25kA at 600V, 50kA at 480V
- Mounting Type: Bolt-On
- Trip Unit: Non-interchangeable LIG
- Standards: UL 489, IEC 60947-2
- Ambient Temperature Rating: 40°C
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: SND69120AG
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : SND
- Voltage : 600
- Amperage : 1200
- Phase : 3
- Poles : 3
- AIC rating : 35kA@480V
- Connection : Bolt-On
- Functions : LIG - Long-Time, Instantaneous and Ground Fault
- Frame Size : ND Frame
- Protection : Solid State
Product Data
- UPC : 783643251809
- GTIN : 00783643251809
- Country of Origin : Mexico
- Weight : 71
