Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
SMD69600ANT

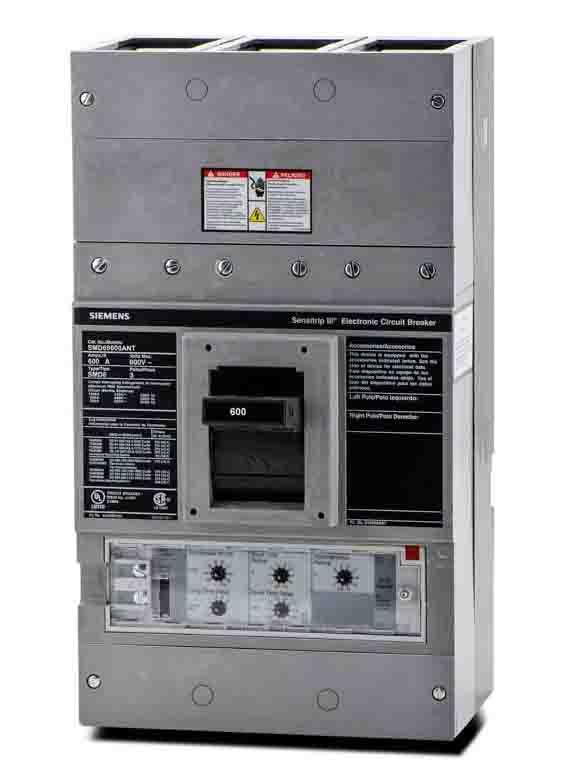

SMD69600ANT is a Siemens 600 Amp, 600 Volt, 3 pole molded case circuit breaker designed for reliable low voltage power distribution protection.This Siemens SMD69600ANT breaker features a robust MD frame with a bolt-on mounting type, an advanced electronic trip unit for precise tripping, and a high interrupting capacity rated at 25kAIC at 600V and 50kAIC at 480V. It complies with UL 489 and IEC 60947-2 standards, making it suitable for demanding industrial and commercial electrical systems.
- Key Specifications
- Amperage: 600A
- Voltage Rating: 600V AC
- Poles: 3
- Mounting Type: Bolt-On
- Interrupting Capacity: 25kAIC @ 600V, 50kAIC @ 480V
- Frame/Series: MD Frame
- Trip Unit: Electronic Trip Unit (ETU)
- Certifications: UL 489, IEC 60947-2
- Type: Molded Case Circuit Breaker
- Phase: 3
Specifications
- Part Number: SMD69600ANT
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : SMD
- Voltage : 600
- Amperage : 600
- Phase : 3
- Poles : 3
- AIC rating : 35kA@480V
- Connection : Bolt-On
- Functions : LSI - Long-Time, Short-Time and Instantaneous
- Frame Size : MD Frame
- Protection : Solid State
Product Data
- UPC : 783643251458
- GTIN : 00783643251458
- Country of Origin : Mexico
- Weight : 71
- Certification : Ul listed
