Product Info
- Manufacturer:Siemens
- Sub-Category:Bus Plug Part
Description
SLVBH4610G

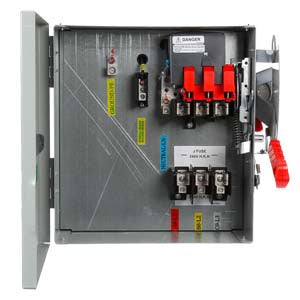

SLVBH4610G is a Siemens 30 Amp, 600 Volt, 3-Pole fusible bus plug designed for Sentron II busway systems with horizontal mounting.This heavy-duty fusible switch features a 3-phase, 4-wire configuration with an interrupting rating of 200kA at 480V. It accepts Class H, J, K, and R fuses and includes an internal ground. The enclosure is rated IP40 and finished with ANSI 61 gray polyester urethane powder paint on aluminum. It is UL, CSA, and IEC approved.
- Amperage: 30 Amps
- Voltage Rating: 600 VAC
- Poles: 3
- Phase: 3-Phase, 4-Wire
- Mounting Type: Horizontal
- Interrupting Rating: 200 kA @ 480V
- Fuse Type: Class H/J/K/R
- Series: Sentron II (SLVBH)
- Enclosure Rating: IP40
- Internal Ground: Yes
- Approvals: UL, CSA, IEC
- Enclosure Material: Aluminum with ANSI 61 gray powder paint
Specifications
- Part Number: SLVBH4610G
- Manufacturer : Siemens
- Brand : Siemens
- Category : Bus Plug
- Item Subcategory : Bus Plug Part
- Family : Sentron Low-Amp
- Type : SLVBH
- Voltage : 600
- Amperage : 30
- Phase : 3
- AIC rating : 200kA@480V
- Fuse Class : R, H, K
- Wire : 4
Product Data
- UPC : 783643549395
- GTIN : 00783643549395
- Country of Origin : Mexico
- Dimensions : 17.717 x 12.992 x 14.961 inch
- Weight : 35.076
