Product Info
- Manufacturer:General Electric
- Sub-Category:Molded Case
Description
SKPP36AT1000

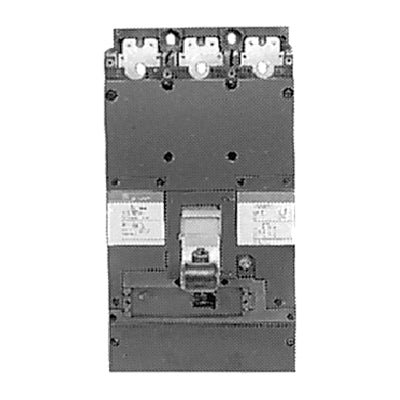

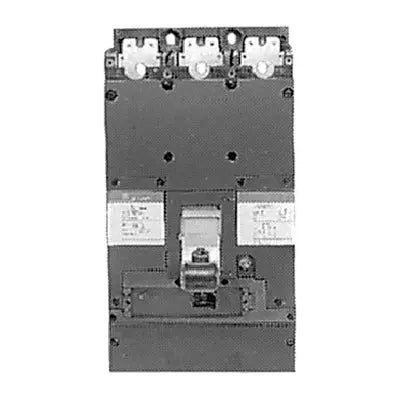

SKPP36AT1000 is a General Electric Spectra RMS series molded case circuit breaker designed for reliable protection in industrial and commercial power distribution systems.This 3-pole, 1000 amp, 600V bolt-on circuit breaker features solid-state trip technology and a MicroVersaTrip® PM trip unit for precise protection and communication capabilities. The breaker is UL listed and supports field-installable accessories such as shunt trip, auxiliary switch, and undervoltage release. It is ambient insensitive and fungusproof, making it suitable for demanding environments.
- Part Number: SKPP36AT1000
- Manufacturer: General Electric
- Series: Spectra RMS
- Frame: SKPP
- Amperage: 1000A
- Voltage: 600V
- Poles: 3
- Mounting Type: Bolt-On
- Interrupt Rating: 100kA @ 480V
- Protection: Solid-State Trip Unit
- Standards: UL, CSA, NOM, IEC
- Accessories: Shunt Trip, Auxiliary Switch, Undervoltage Release
Specifications
- Part Number: SKPP36AT1000
- Manufacturer : General Electric
- Brand : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Spectra Series
- Type : SKPP
- Voltage : 600
- Amperage : 1000
- Phase : 3
- Poles : 3
- AIC rating : 100kA@480V
- Connection : Bolt-On
- Functions : LSI - Long-Time, Short-Time and Instantaneous
- Protection : Solid State
Product Data
- Weight : 57
