Product Info
- Manufacturer:General Electric
- Sub-Category:Molded Case
Description
SKPP36AT0800

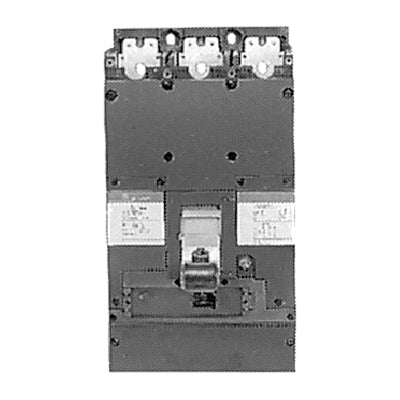

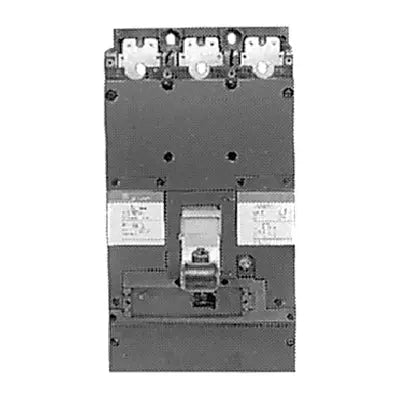

SKPP36AT0800 is a General Electric 3 pole molded case circuit breaker rated for 800 amps and 600 volts with bolt-on mounting.SKPP36AT0800 offers reliable circuit protection with solid state trip functions including long time, short time, and instantaneous trips. It features a 65kA interrupting rating at 480V and is UL listed for industrial applications. This breaker is part of GE's Spectra series and designed for 3-phase electrical systems.
- Key Specifications
- Amperage: 800A
- Voltage Rating: 600VAC
- Poles: 3
- Mounting Type: Bolt-On
- Interrupting Rating: 65kA at 480V
- Trip Unit: Solid State with Long Time, Short Time, Instantaneous
- Series/Frame: SKPP / Spectra Series
- Certifications: UL Listed
- Phase: 3
- Connection Type: Bolt-On
Specifications
- Part Number: SKPP36AT0800
- Manufacturer : General Electric
- Brand : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Spectra Series
- Voltage : 600
- Amperage : 800
- Phase : 3
- Poles : 3
- AIC rating : 100kA@480V
- Connection : Bolt-On
- Functions : LSI - Long-Time Short-Time and Instantaneous
- Protection : Solid State
Product Data
- Weight : 57
