Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
SHPD69140G

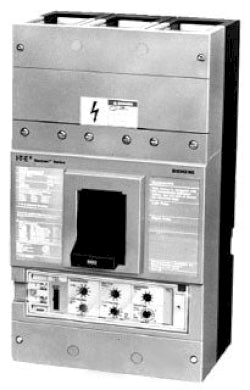

SHPD69140G is a Siemens molded case circuit breaker designed for industrial power distribution applications with solid-state Sensitrip technology. This 3-pole breaker operates at 600 volts AC and is rated for 1400 amperes continuous duty with an SPD frame configuration. The unit features electronic trip protection with adjustable continuous amperage rating, short time delay, and ground fault pickup capabilities, making it suitable for individual enclosures, switchboards, and power distribution panel boards.
- Amperage Rating: 1400A
- Voltage: 600 VAC at 50/60 Hz
- Poles: 3
- Frame Type: SPD
- Interrupting Rating: 50 kAIC at 600V, 65 kAIC at 480V
- Trip Unit: Electronic Sensitrip
- Certifications: UL 489, IEC 60947-2
- Special Features: Line and load side lugs, adjustable continuous amps rating switch, adjustable short time delay, adjustable instantaneous trip switch, adjustable ground fault pickup
- Mounting: Individual enclosures, switchboards, power distribution panel boards
- Weight: 64 lb
Specifications
- Part Number: SHPD69140G
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : SHPD
- Voltage : 600
- Amperage : 1400
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Bolt-On
- Functions : LIG - Long-Time, Instantaneous and Ground Fault
- Frame Size : PD Frame
- Protection : Solid State
Product Data
- UPC : 078364325678
- GTIN : 00783643256781
- Country of Origin : Mexico
- Weight : 71
