Product Info
- Manufacturer:General Electric
- Sub-Category:Molded Case
Description
SGPP36AT0600

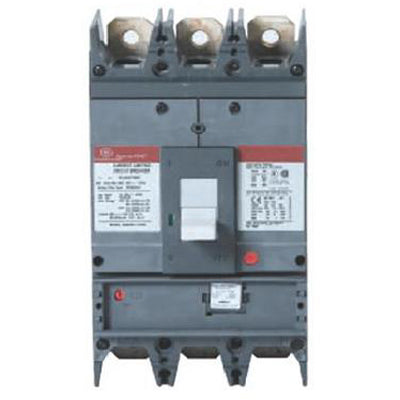

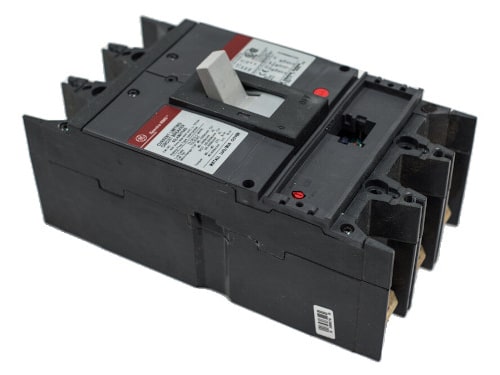

SGPP36AT0600 is a General Electric 600 amp, 600 volt, 3-pole molded case circuit breaker designed for industrial and commercial power distribution.SGPP36AT0600 features a SGLA frame with a solid state Spectra RMS electronic trip unit offering adjustable long time, short time, and instantaneous trip functions. It has a high interrupting rating of 65kA at 480V and 100kA at lower voltages, suitable for reverse feed applications with current limiting capabilities.
- Key Specifications
- Amperage: 600A
- Voltage: 600V AC
- Poles: 3
- Frame Type: SGLA
- Interrupt Rating: 65kA @ 480V, 100kA @ 120/240V
- Trip Unit: Spectra RMS electronic trip, adjustable
- Mounting Type: Bolt-On
- Suitable for Reverse Feed: Yes
- Current Limiting: Yes
- Certifications: HACR compliant
- Lugs: Not included
Specifications
- Part Number: SGPP36AT0600
- Manufacturer : General Electric
- Brand : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Spectra Series
- Type : SGPP
- Voltage : 600
- Amperage : 600
- Phase : 3
- Poles : 3
- AIC rating : 100kA@480V
- Connection : Bolt-On
- Functions : Long Time, Short Time and Instantaneous Trip
- Protection : Solid State
Product Data
- UPC : 783164068337
- Weight : 20
