2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:General Electric
- Sub-Category:Molded Case
Description
SGLB36BB0400

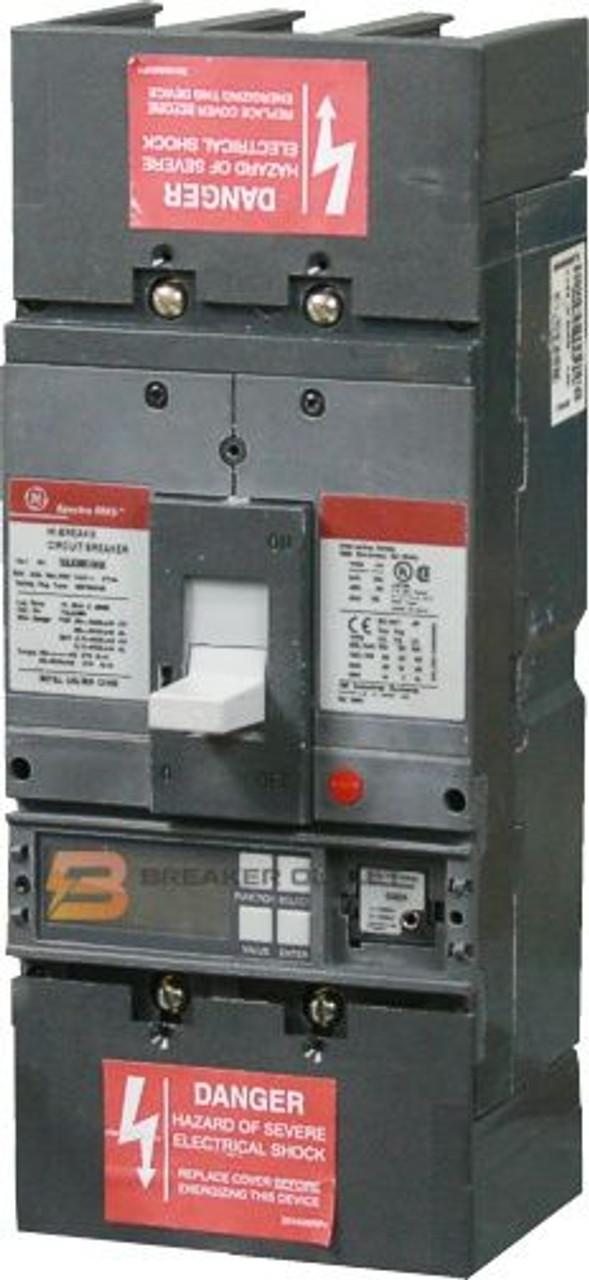

SGLB36BB0400 is a General Electric Spectra Series 3 pole, 400A, 600V molded case circuit breaker with bolt-on mounting and a 65kA interrupting rating at 480V. This solid state breaker features a digital, RMS sensing trip unit with LSIT functions for reliable protection in demanding applications. The SGLB36BB0400 is designed for high interrupting capacity and current limiting, suitable for reverse fed installations. It includes a front-mounted, field-installable rating plug for easy ampere rating changes. The breaker is UL489 listed and supports a wide range of accessories for enhanced flexibility.
- Part Number: SGLB36BB0400
- Manufacturer: General Electric
- Series/Frame: Spectra SGLB
- Amperage: 400A
- Voltage: 600V AC
- Poles: 3
- Mounting Type: Bolt-On
- Interrupt Rating: 65kA @ 480V
- Phase: 3 Phase
- Interrupting Capacity: High
- Current Limiting: Yes
- Trip Unit: Solid State, RMS Sensing, LSIT
- Certifications: UL489 Listed
- Accessories: Compatible with auxiliary switches, shunt trips, UV releases
Specifications
- Part Number: SGLB36BB0400
- Manufacturer : General Electric
- Brand : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Spectra Series
- Type : SGLB
- Voltage : 600
- Amperage : 400
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Bolt-On
- Functions : LSIT - Long-Time, Short-Time, Instantaneous and Targets
- Protection : Solid State
Product Data
- Weight : 20
- Certification : UL
Accesories
