Product Info
- Manufacturer:General Electric
- Sub-Category:Molded Case
Description
SGLA36AI0600

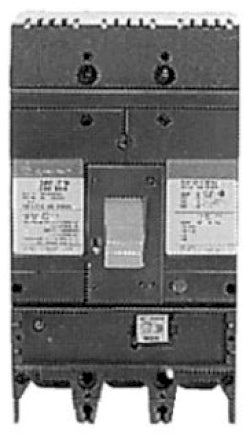

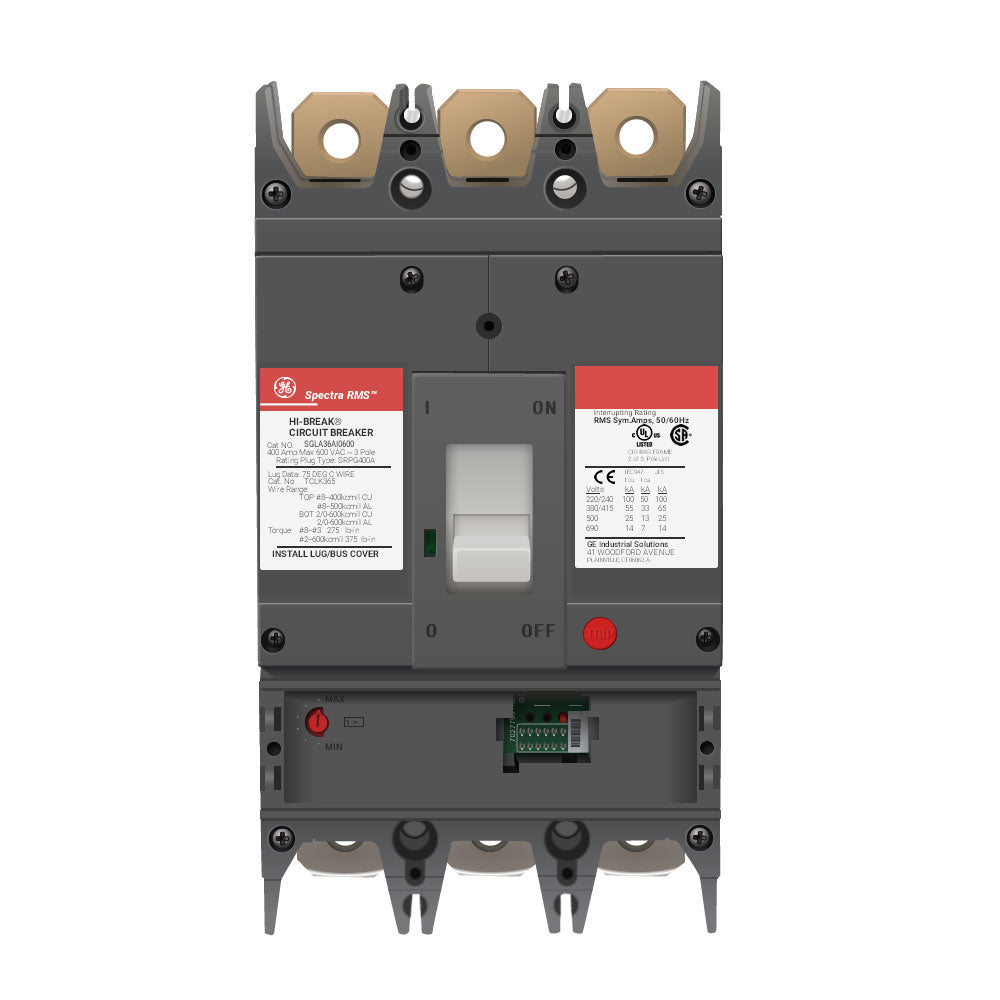

SGLA36AI0600 is a General Electric 3 pole, 600 Volt, 600 Amp bolt-on circuit breaker with magnetic-only trip functionality.This molded case circuit breaker from the Spectra Series family features a magnetic trip unit with adjustable instantaneous trip, suitable for motor circuit protection. It has a 65kA interrupting rating at 480V AC and supports reverse feed. The breaker is designed for bolt-on mounting and complies with UL and CSA certifications.
- Amperage: 600A
- Voltage: 600V AC
- Poles: 3
- Mounting Type: Bolt-On
- Interrupting Rating: 65kA @ 480V
- Trip Unit: Magnetic Only, Adjustable Instantaneous
- Series/Frame: Spectra SGLA
- Suitable for Reverse Feed: Yes
- Certifications: UL (E11592), CSA (LR40350)
- Type: Molded Case Circuit Breaker
- Application: Motor Circuit Protector (MCP)
Specifications
- Part Number: SGLA36AI0600
- Manufacturer : General Electric
- Brand : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Spectra Series
- Type : SGLA
- Voltage : 600
- Amperage : 600
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Bolt-On
- Functions : I - Instantaneous
- Protection : Magnetic Only
Product Data
- UPC : 783164211719
- GTIN : 00783164211719
- Weight : 20
