Product Info
- Manufacturer:General Electric
- Sub-Category:Molded Case
Description
SELA36AT0100

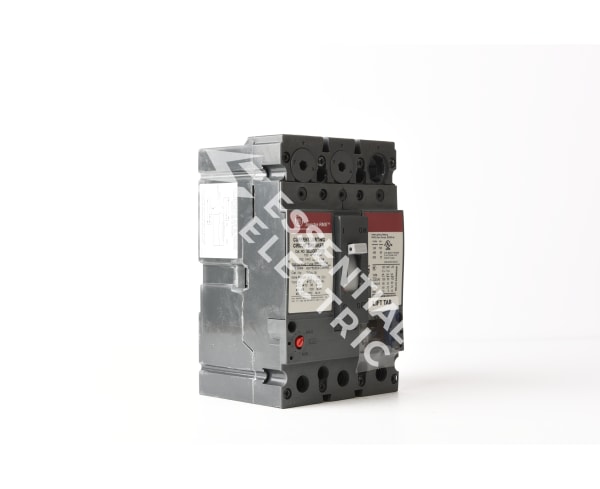

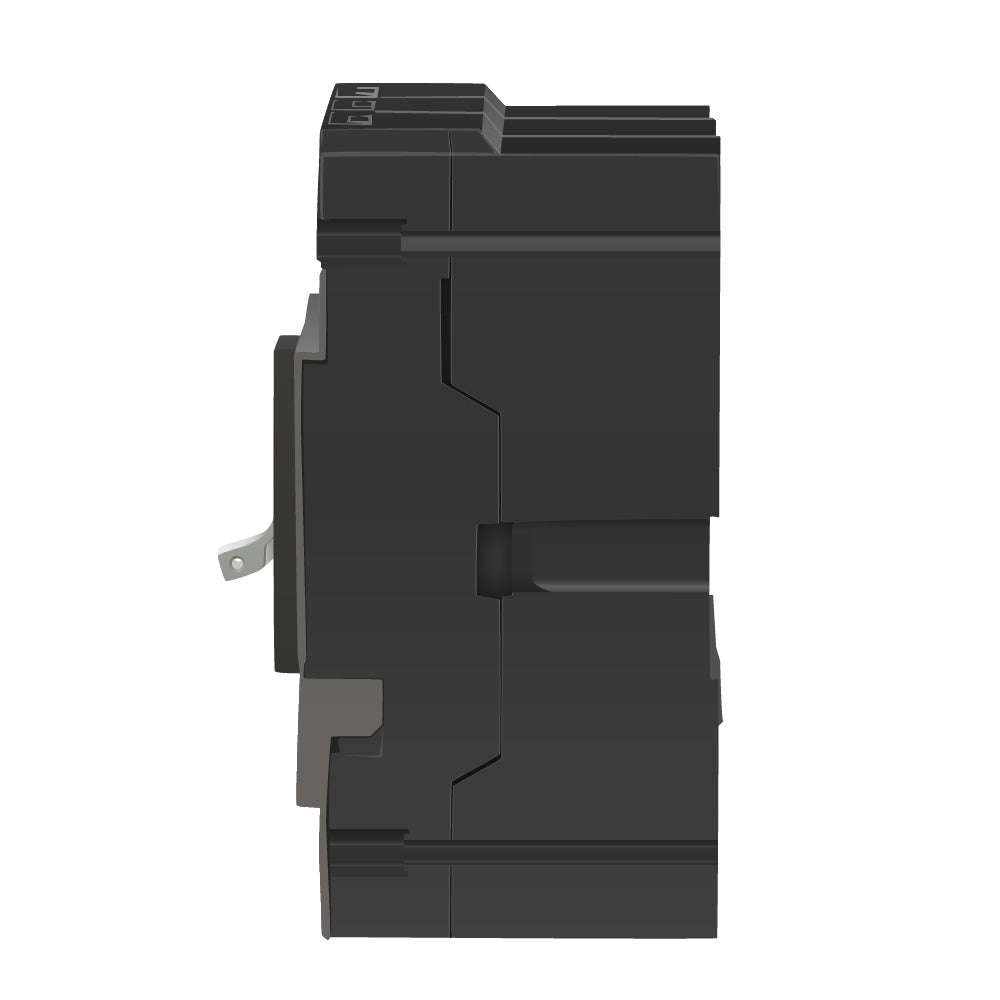

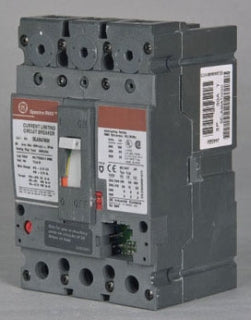

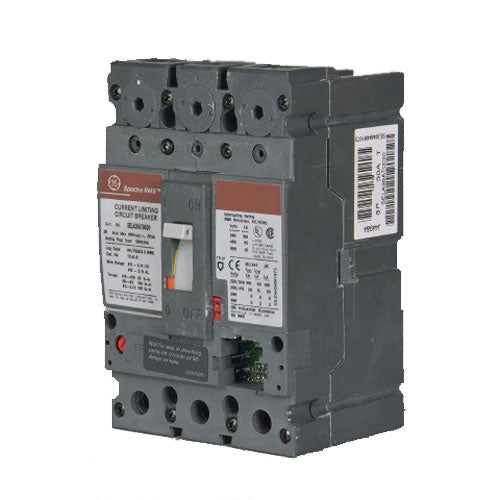

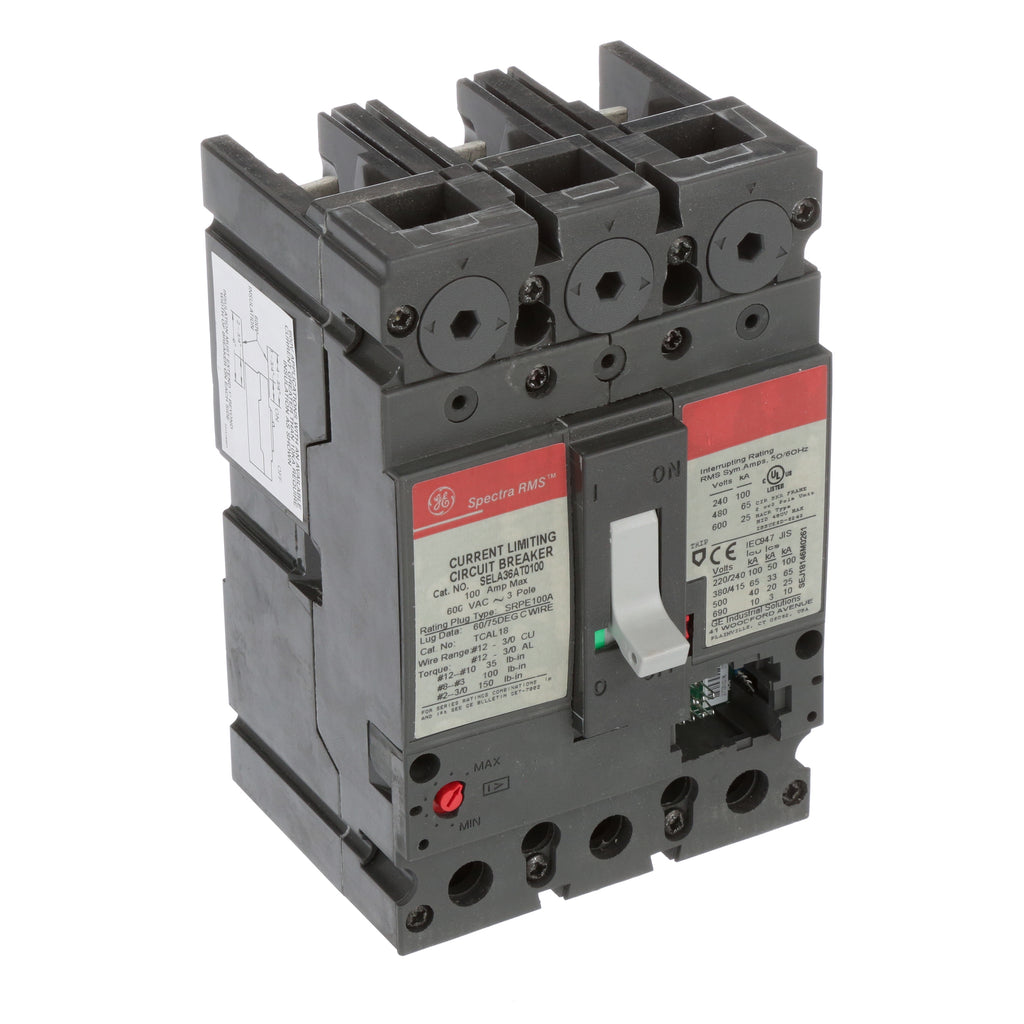

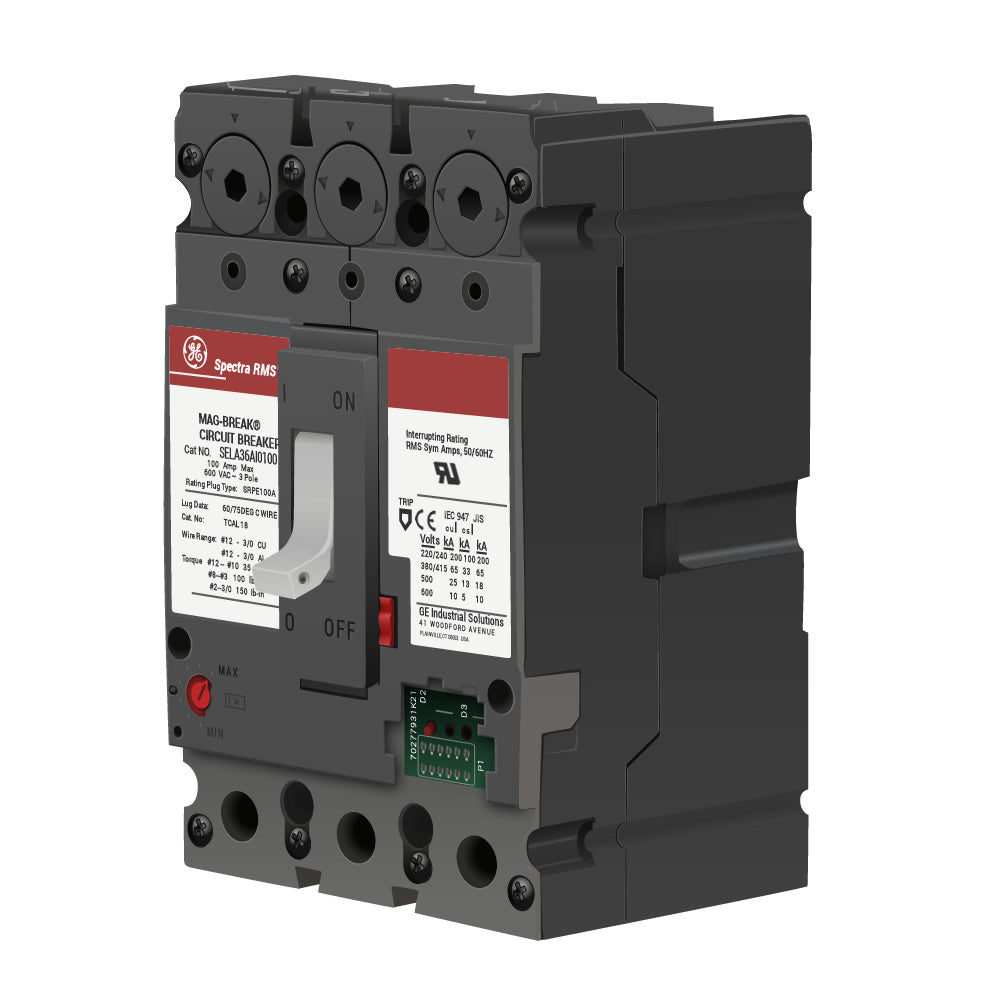

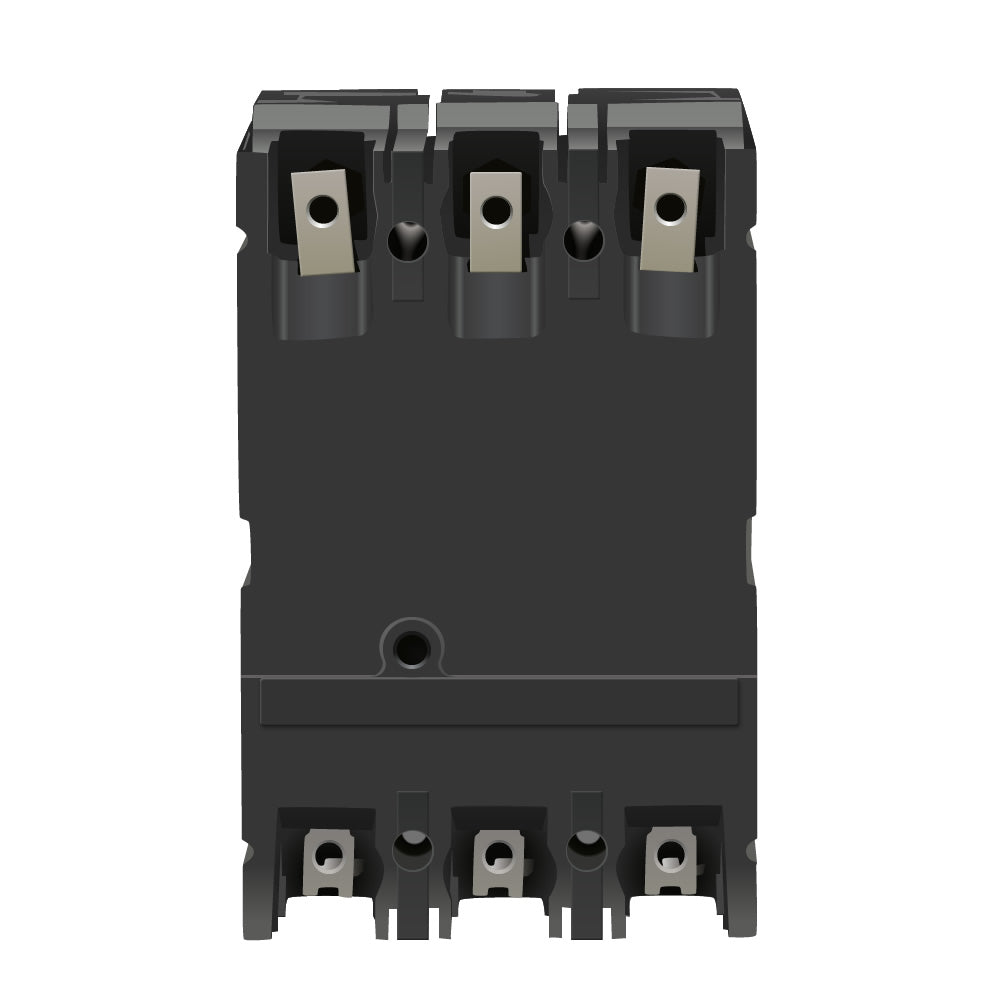

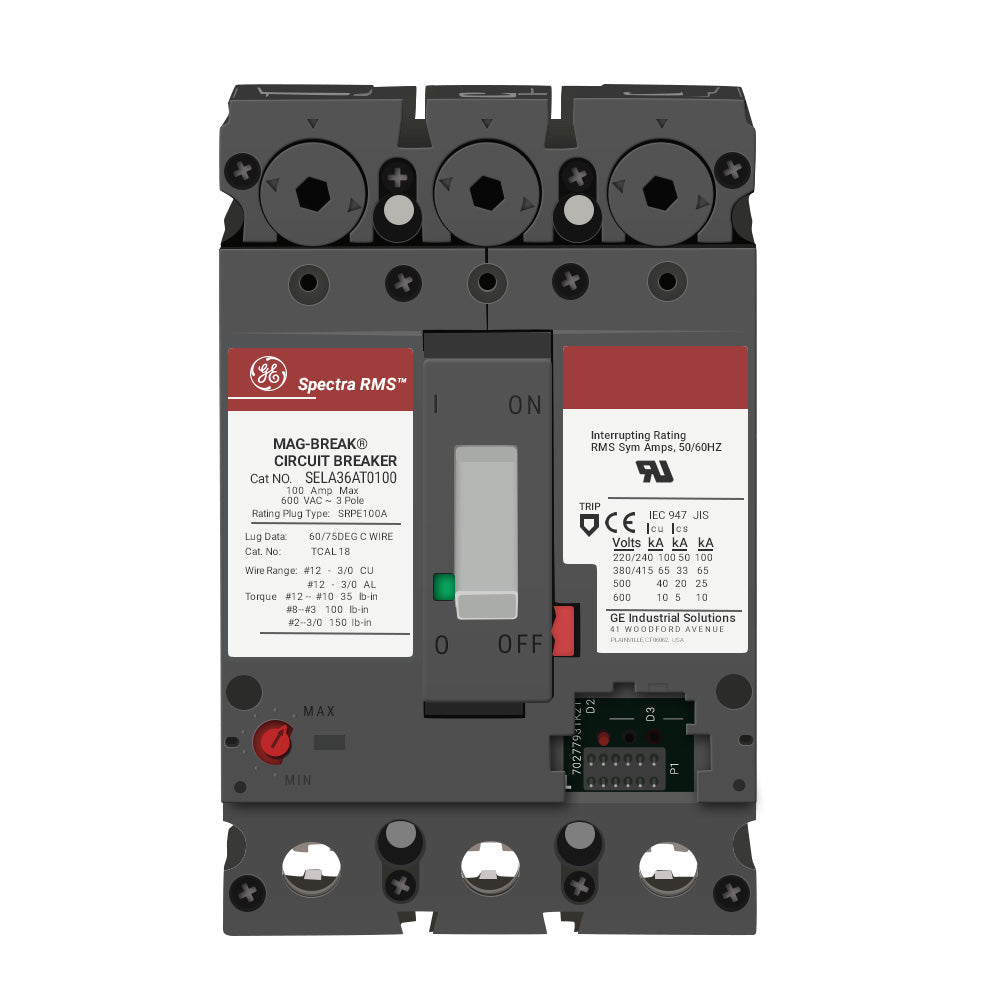

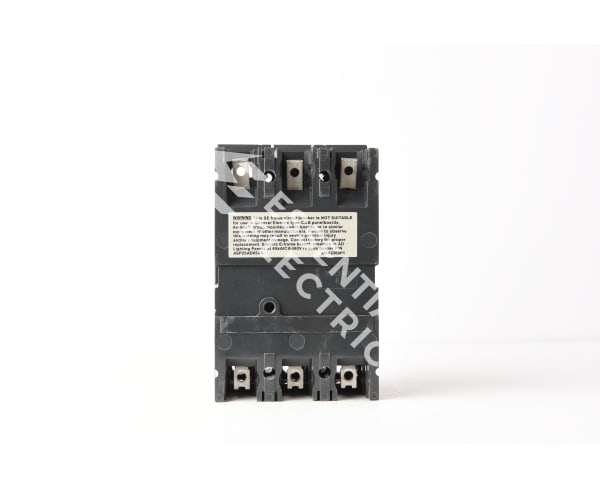

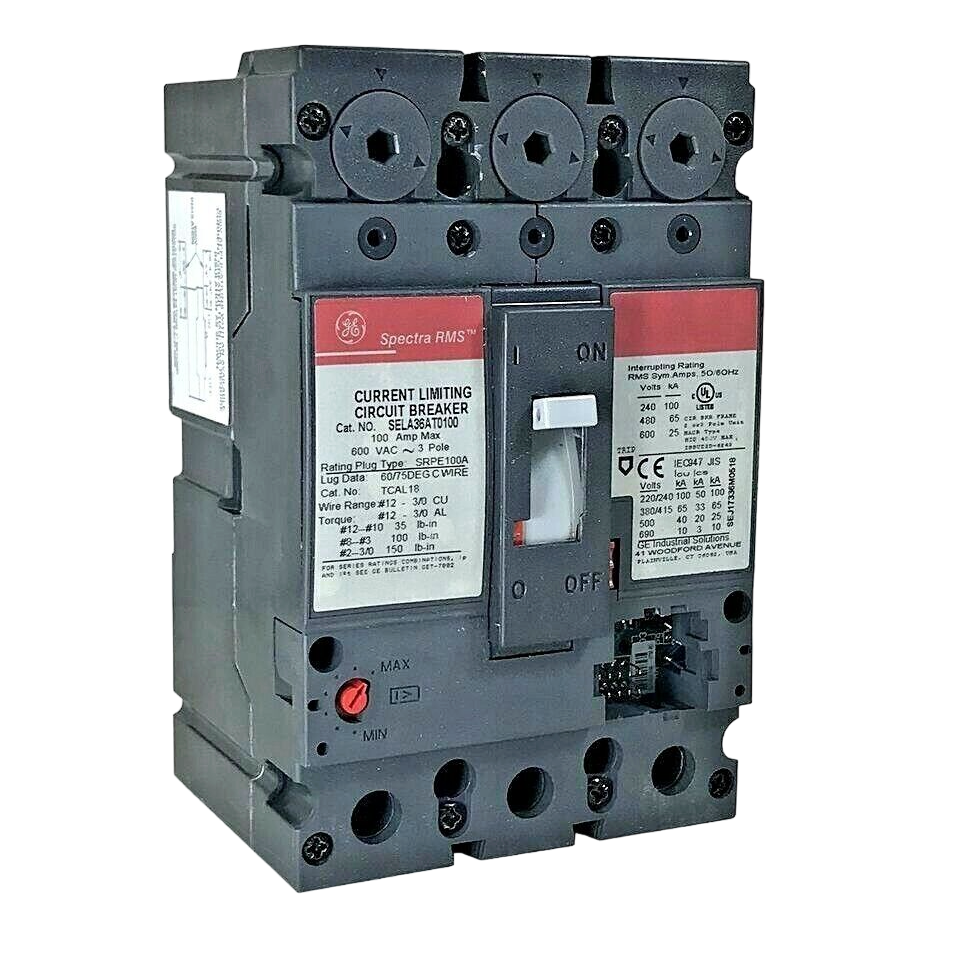

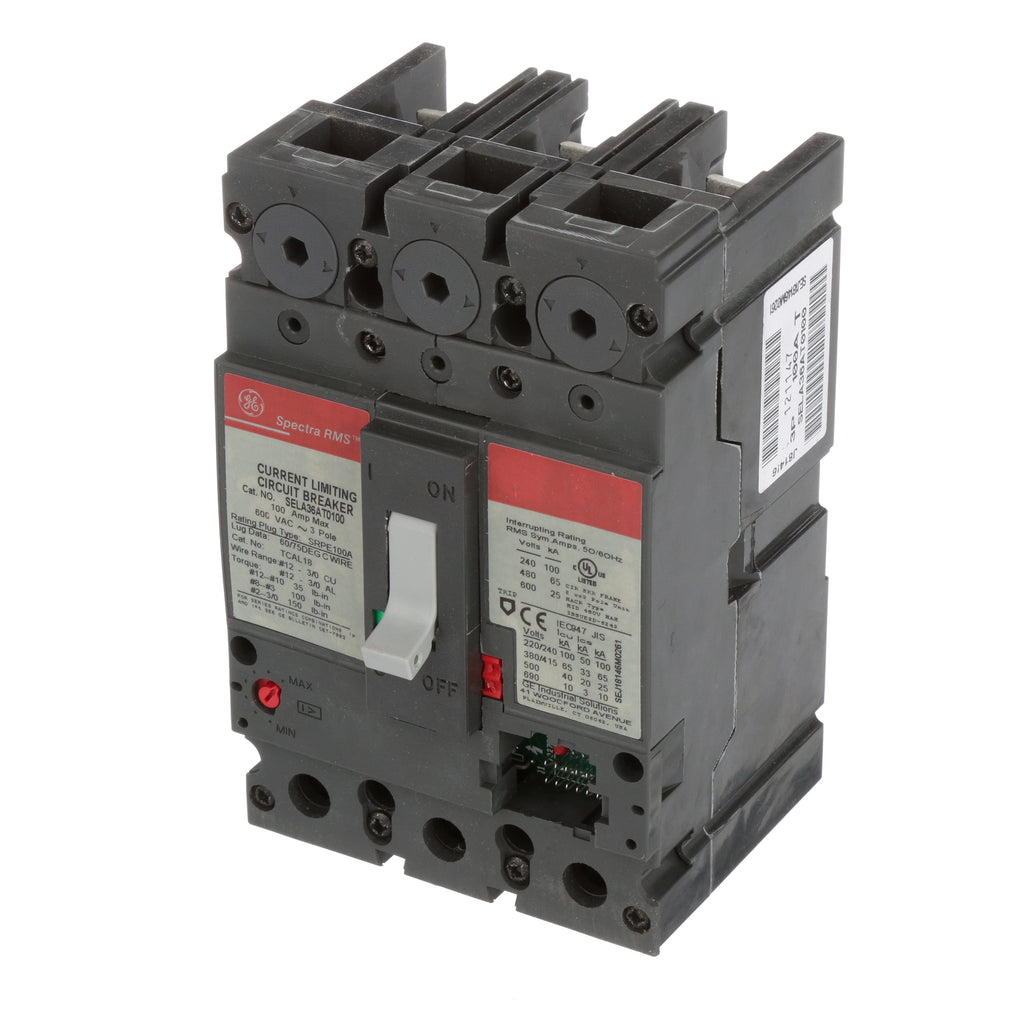

SELA36AT0100 is a General Electric 3-pole, 100 amp molded case circuit breaker designed for reliable power distribution protection.This molded case circuit breaker features a SE frame type with a 600 volt rating and a high interrupting capacity of up to 100 kiloamperes at 240 VAC. It uses a digital solid-state Spectra RMS trip system with adjustable instantaneous and short-time trip settings. The breaker is bolt-on mounted and UL and CE certified, suitable for industrial and commercial applications requiring robust circuit protection.
- Manufacturer: General Electric
- Part Number: SELA36AT0100
- Amperage: 100 A
- Voltage Rating: 600 VAC
- Poles: 3
- Frame Type: SE (SE150)
- Interrupting Rating: 100 kA at 240 VAC, 65 kA at 480 VAC, 25 kA at 600 VAC
- Trip Unit: Spectra RMS digital solid-state
- Mounting Type: Bolt-On
- Certifications: UL, CE
- Dimensions: 6.31" H x 4.12" W x 3.38" D
- Suitable for reverse feed
Specifications
- Part Number: SELA36AT0100
- Manufacturer : General Electric
- Brand : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Spectra Series
- Type : SELA
- Voltage : 600
- Amperage : 100
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Bolt-On
- Functions : LSI - Long-Time, Short-Time and Instantaneous
- Protection : Solid State
Product Data
- UPC : 78316421147
- GTIN : 00783164211474
- Dimensions : 6.31" X 4.12" X 3.38"
- Weight : 7 lb
