Product Info
- Manufacturer:General Electric
- Sub-Category:Molded Case
Description
SEHA36AT0100

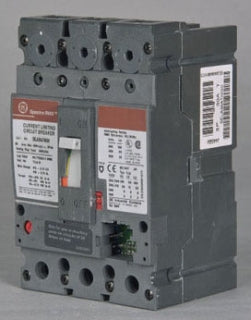

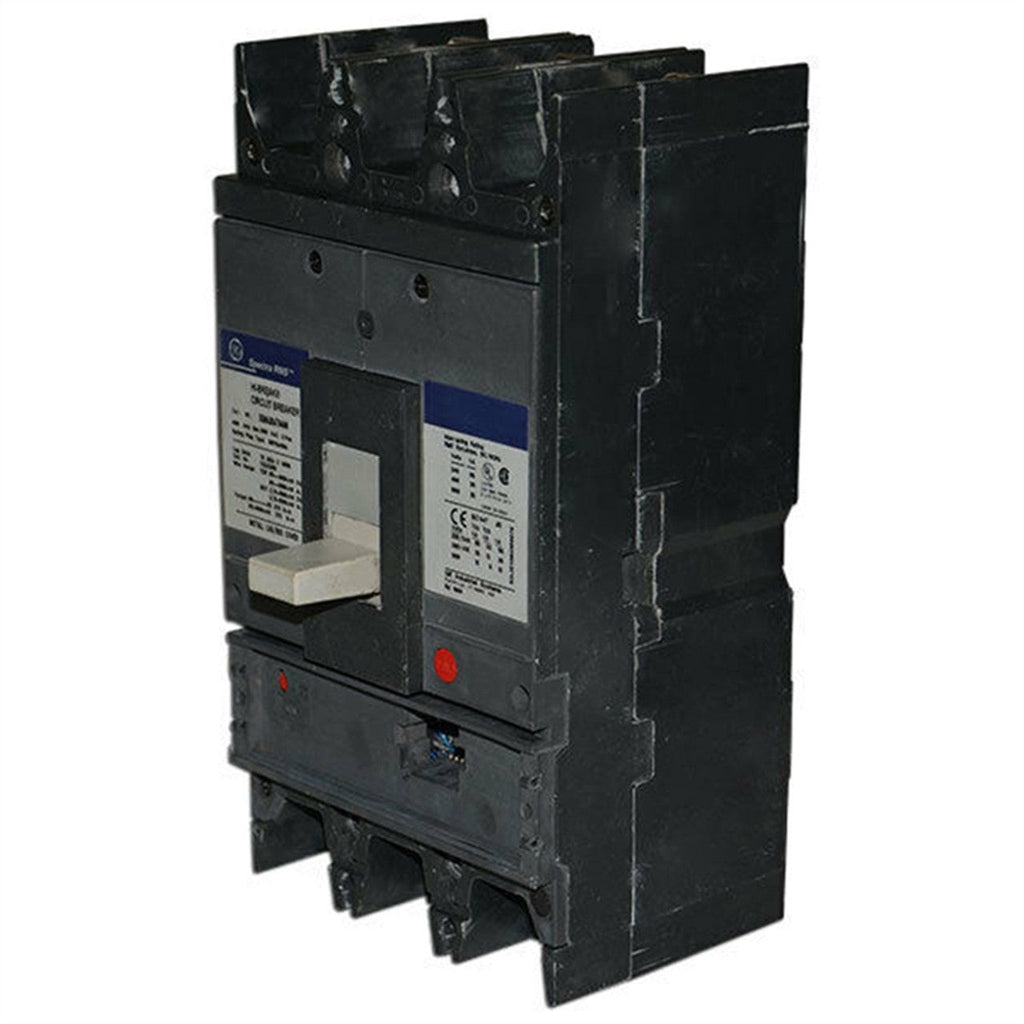

SEHA36AT0100 is a General Electric 3 pole molded case circuit breaker with a 100 amp rating and 600 volt capacity designed for reliable power distribution protection.This Spectra RMS series breaker features a solid-state digital RMS sensing trip system with adjustable instantaneous and tracking short-time trip functions. It is bolt-on mounted, suitable for reverse fed applications, and includes front-mounted rating plugs for ampere rating adjustments. The breaker has an interrupt rating of 18 kA at 600 VAC and is UL listed and CSA certified.
- Amperage: 100 A
- Voltage: 600 VAC
- Poles: 3
- Frame Type: SEHA (SE150)
- Mounting Type: Bolt-on
- Interrupt Rating: 18 kA at 600 VAC
- Trip Unit: Digital solid-state RMS sensing
- Adjustable instantaneous and short-time trip
- Suitable for reverse feed
- UL Listed and CSA Certified
- Dimensions: 4.12" W x 3.38" D x 6.31" H
- UPC: 783164211443
Specifications
- Part Number: SEHA36AT0100
- Manufacturer : General Electric
- Brand : General Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Spectra Series
- Type : SEHA
- Voltage : 600
- Amperage : 100
- Phase : 3
- Poles : 3
- AIC rating : 25kA@480V
- Connection : Bolt-On
- Functions : LSI - Long-Time, Short-Time and Instantaneous
- Protection : Solid State
Product Data
- UPC : 783164211443
- GTIN : 00783164211443
- Dimensions : 13" X 10" X 8"
- Weight : 7 lb
