Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
SCND69120ANGTH

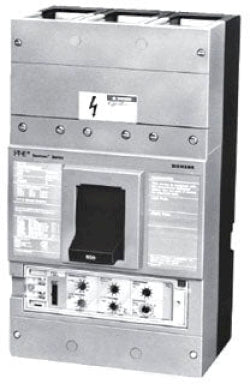

SCND69120ANGTH is a 3-pole, 600 Volt, 1200 Ampere molded case circuit breaker with a 65kA interrupt rating at 600V and 100kA at 480V, featuring LSIG electronic trip unit and SensiTrip functions for reliable overcurrent protection in industrial and commercial applications.This bolt-on circuit breaker is designed for use in Siemens panelboards and switchgear. The SCND6-H frame type provides current-limiting protection with line and load side accessible terminals. The breaker meets UL 489 and IEC 60947-2 standards, ensuring compliance with industry requirements for safety and performance.
- Amperage: 1200A
- Voltage: 600V AC, 50/60 Hz
- Poles: 3
- Frame Type: SCND6-H (SND Frame)
- Interrupt Rating: 65kA @ 600V, 100kA @ 480V
- Trip Unit: LSIG Electronic with SensiTrip
- Mounting: Bolt-On
- Current Limiting: Yes
- Certifications: UL 489, IEC 60947-2
Specifications
- Part Number: SCND69120ANGTH
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : SCND
- Voltage : 600
- Amperage : 1200
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Bolt-On
- Functions : LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault
- Frame Size : ND Frame
- Protection : Solid State
Product Data
- UPC : 078364325332
- GTIN : 00783643253322
- Country of Origin : Mexico
- Weight : 71
