Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
SCMD69700ANT

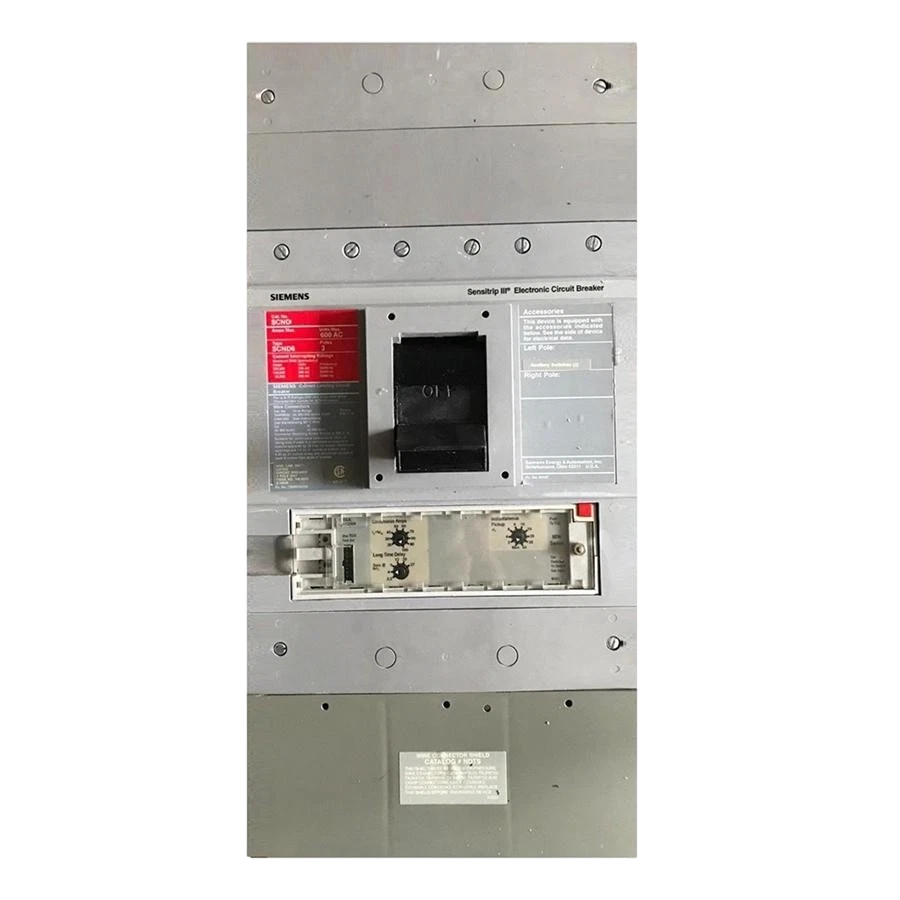

SCMD69700ANT is a 3 pole, 600 volt, 700 ampere rated molded case circuit breaker from Siemens designed for industrial power distribution applications. This current limiting, electronic trip unit breaker features the SMD frame and is suitable for use in main and feeder applications with reverse feed capability per UL 489. The breaker delivers reliable overcurrent protection with solid state technology and is part of the Sentron Series family of circuit protection products. Key Specifications
- Manufacturer: Siemens
- Part Number: SCMD69700ANT
- Poles: 3
- Amperage Rating: 700 Amps
- Voltage Rating: 600 VAC at 50/60 Hz
- Frame Size: SMD
- Trip Unit: Electronic, Current Limiting
- Interrupting Rating: 35,000 AIC at 600V
- Mounting: Bolt-On
- Certification: UL 489
Specifications
- Part Number: SCMD69700ANT
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : SCMD
- Voltage : 600
- Amperage : 700
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Bolt-On
- Functions : LSI - Long-Time, Short-Time and Instantaneous
- Frame Size : MD Frame
- Protection : Solid State
Product Data
- UPC : 078364325170
- GTIN : 00783643251700
- Country of Origin : Mexico
- Weight : 71
