Product Info
- Manufacturer:General Electric
- Sub-Category:Breaker Type
Description
SB38SEDG

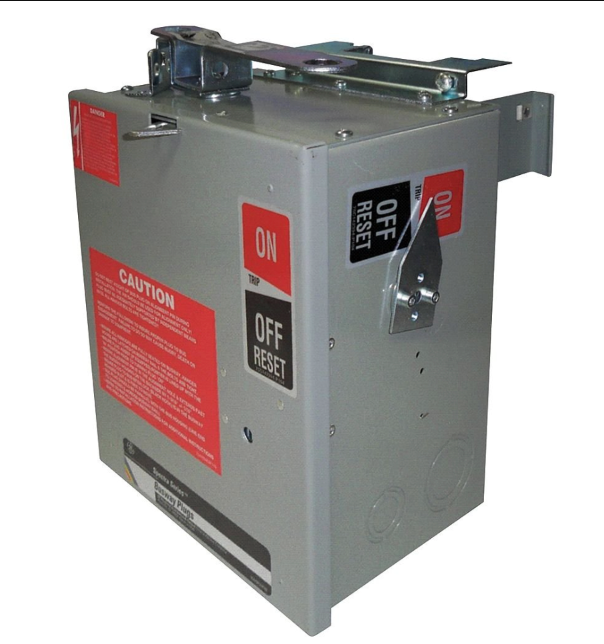

SB38SEDG is a General Electric molded case circuit breaker bus plug designed for industrial power distribution applications. This SEDA-type bus plug integrates a molded case circuit breaker rated at 14kAIC at 480-volts and is suitable for use up to 600-volts AC, providing reliable overcurrent protection and switching capability for busway systems. The unit features a compact design optimized for fast, safe installation with plug-assist positioning locators.
- Amperage Rating: 80A
- Voltage Rating: 480V (suitable up to 600V AC)
- Poles: 3-pole
- Breaker Type: SEDA molded case circuit breaker
- Interrupt Rating: 14kAIC at 480V
- Enclosure Rating: NEMA 1
- Depth: 8 inches
- Country of Origin: USA
- Compatible with Flex-A-Power Type DH Busway systems
Specifications
- Part Number: SB38SEDG
- Manufacturer : General Electric
- Brand : General Electric
- Category : Bus Plug
- Item Subcategory : Breaker Type
- Family : Spectra
- Type : SB
- Voltage : 600
- Amperage : 80
- Phase : 3
- AIC rating : 18kA@480V
- Wire : 3
Product Data
- Weight : 35
