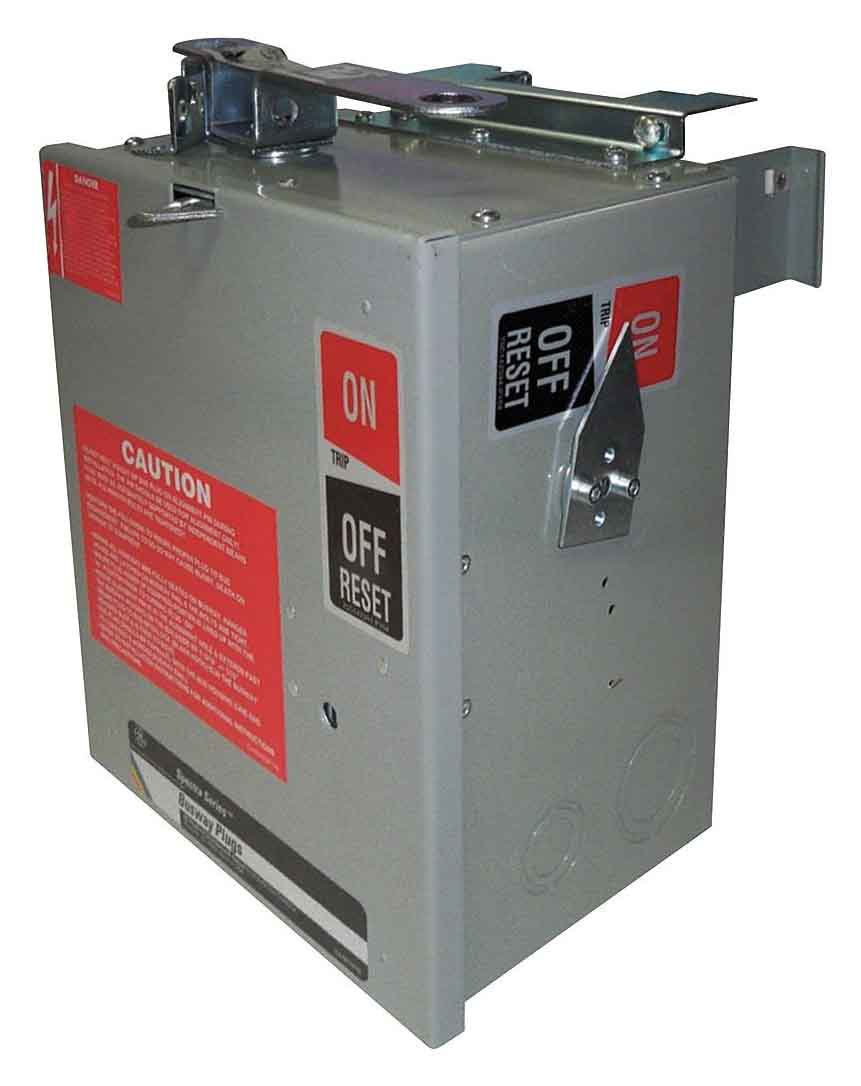

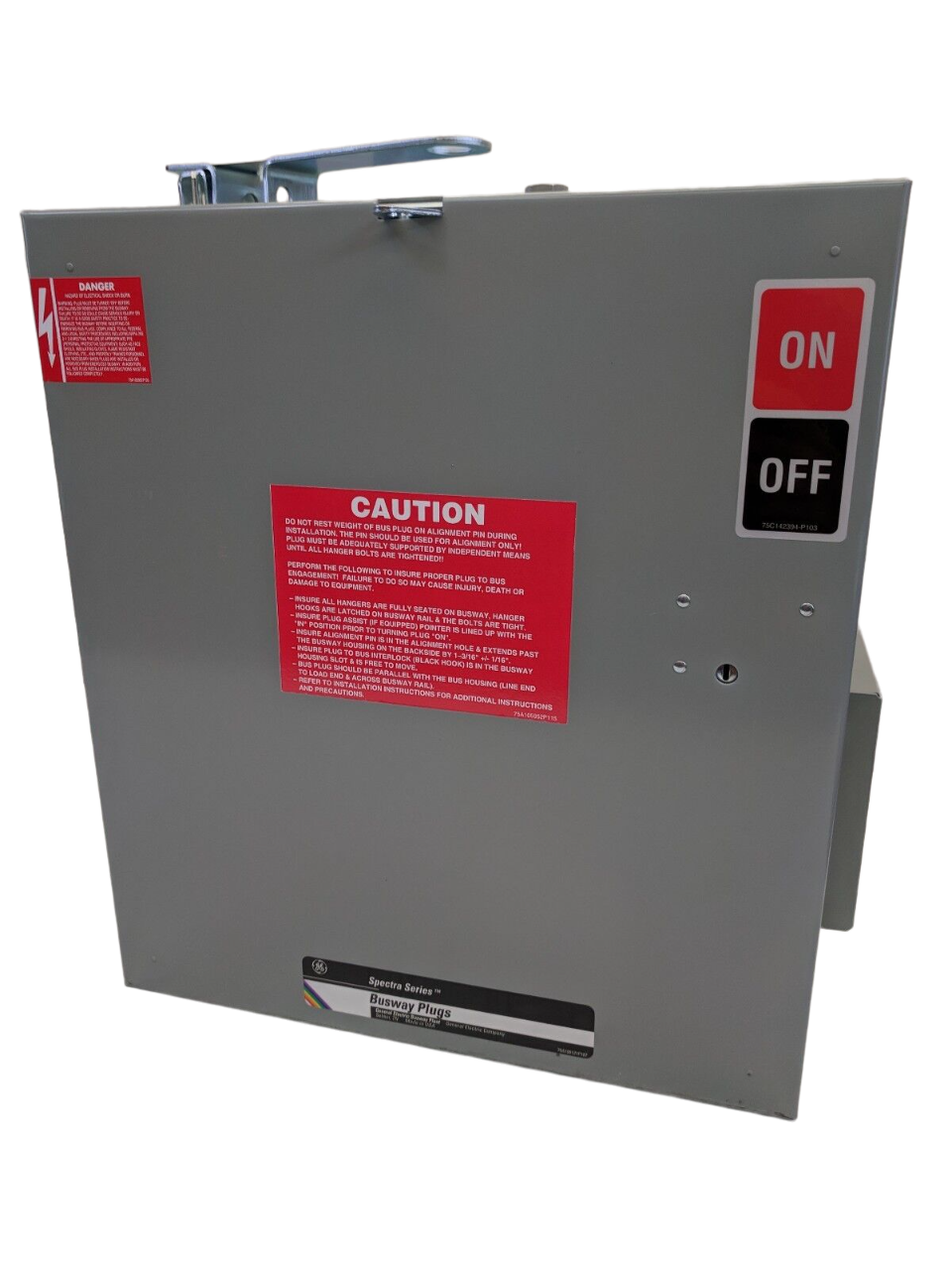

Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- General Electric
- Sub-Category
- Fusible
- Series
- Spectra Series
- Frame
- SB
- Rated current
- 200
- Voltage
- 480/600 AC
- Phases
- 3
- Interrupting rating
- 200kA@480V
- Wires
- 3
- Fuse class
- H,R
- Country of origin
- United States
- UPC
- 783175004560
- GTIN
- 00783175004560
- Dimensions
- 16 in x 18-3/4 in
Show all specifications (2 more)
- Weight
- 52 lb
- Certification
- UL Listed
Product description & additional details
SB364RG
SB364RG is a General Electric Spectra Series fusible bus plug designed for use with 3 phase, 3 wire busway systems. This unit provides reliable circuit protection and easy plug-in installation for industrial power distribution applications. The SB364RG bus plug features a 200 amp current rating, 480/600 volt AC voltage rating, and is equipped with a ground connection. It is a 3 pole, 3 wire fusible plug with a QMR interrupter switch and accepts Class H fuse clips. The unit is compatible with GE Spectra SB plug-in bus duct systems and is rated for 200kA interrupting capacity at 480V.
- Part Number: SB364RG
- Manufacturer: General Electric
- Series: Spectra
- Amperage: 200A
- Voltage: 480/600VAC
- Poles: 3
- Wire Configuration: 3 Wire with Ground
- Interrupt Rating: 200kA @ 480V
- Fuse Type: Class H
- Switch Type: QMR Interrupter
- Mounting: Plug-in for GE Spectra SB Busway
- Application: Industrial Power Distribution
Specifications
- Part Number: SB364RG
- Manufacturer : General Electric
- Brand : General Electric
- Category : Bus Plug
- Item Subcategory : Fusible
- Family : Spectra Series
- Type : SB
- Voltage : 480/600 AC
- Amperage : 200
- Phase : 3
- AIC rating : 200kA@480V
- Fuse Class : H,R
- Wire : 3
Product Data
- UPC : 783175004560
- GTIN : 00783175004560
- Country of Origin : United States
- Dimensions : 16 in x 18-3/4 in
- Weight : 52 lb
- Certification : UL Listed
Return eligibility: what to know before ordering
Return requests must be made within 30 days of shipping and require authorization. Used, installed, energized, or tested items are not eligible. A restocking fee of up to 35% may apply. Review the full policy before purchase.
Product-specific restrictions apply. International orders are non-cancellable and non-refundable under the policy.
Warranty supplied by Essential Electric
Warranty coverage is provided by Essential Electric, subject to the product and policy terms. Essential Electric is an independent supplier. Surplus or discontinued inventory may not qualify for the original manufacturer’s warranty.
