Product Info
- Manufacturer:General Electric
- Sub-Category:Fusible
Description
SB324RGJ

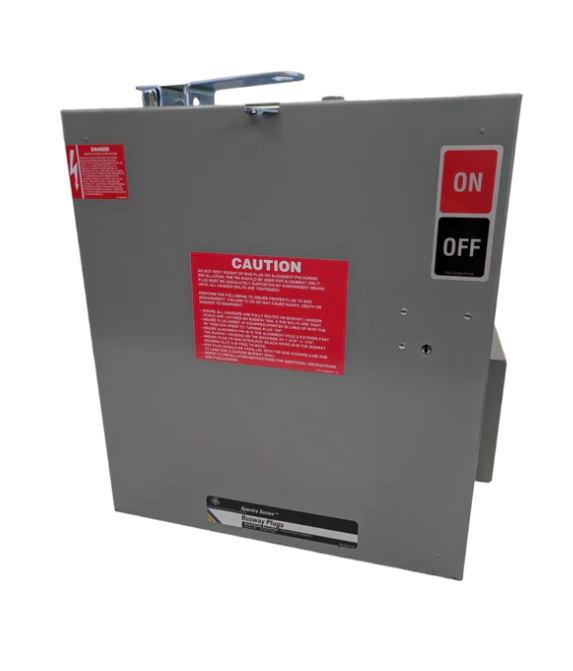

SB324RGJ is a General Electric fusible bus plug designed for use with the Spectra SB series busway, rated at 200 amps and 240 volts AC.This 3-pole, 3-wire bus plug features a fusible design compatible with Class H and R fuses, providing reliable overcurrent protection. It is intended for 3-phase electrical systems and includes a NEMA 1 enclosure rating. The SB324RGJ supports a high interrupt rating of 200kA at 240V, ensuring robust performance in demanding industrial or commercial power distribution applications. It is UL listed for safety and quality assurance.
- Key Specifications
- Amperage: 200A
- Voltage: 240V AC
- Number of Poles: 3
- Phase/Wire: 3 Phase, 3 Wire with Ground
- Fusible: Yes
- Fuse Class: H, R
- Series/Frame: Spectra SB
- Interrupt Rating: 200kA @ 240V
- Enclosure Rating: NEMA 1
- Certifications: UL Listed
- Part Number: SB324RGJ
- Manufacturer : General Electric
- Brand : General Electric
- Category : Bus Plug
- Item Subcategory : Fusible
- Family : Spectra Series
- Type : SB
- Voltage : 240
- Amperage : 200
- Phase : 3
- AIC rating : 200kA@240V
- Fuse Class : J
- Wire : 3
- Weight : 48
