Product Info
- Manufacturer:ABB
- Sub-Category:Molded Case
Description

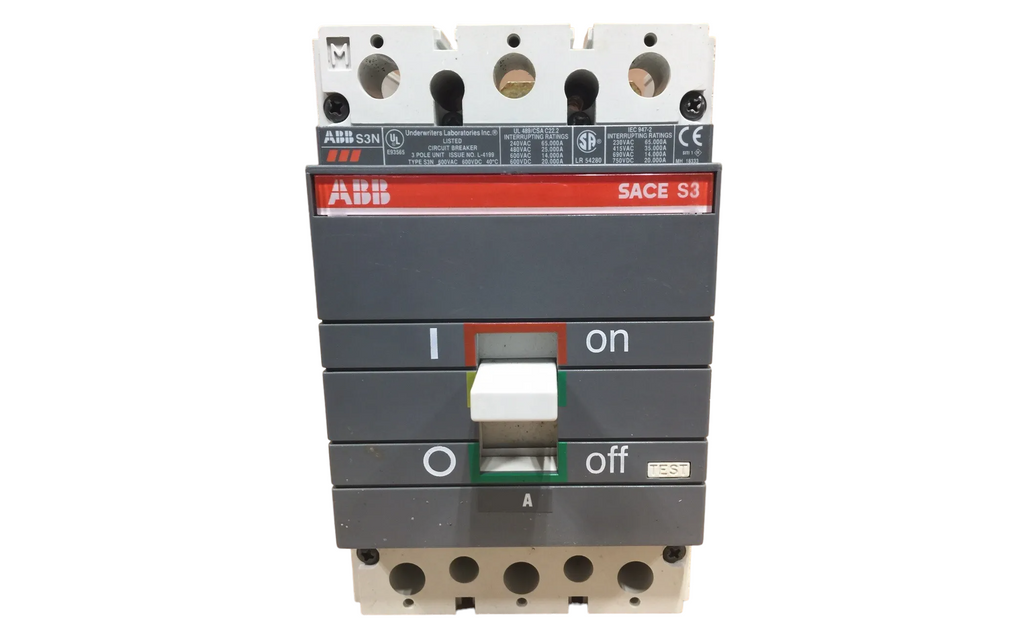

S3N090TW
S3N090TW is a 90-ampere, 3-pole molded case circuit breaker from ABB's Tmax series designed for industrial power distribution and motor protection applications. This thermal-magnetic trip unit breaker delivers reliable overcurrent and short-circuit protection in compact dimensions suitable for panel mounting. The S3 frame accommodates ratings from 15 to 225 amperes with non-interchangeable trip mechanisms for precise application matching. Key Specifications
- Amperage Rating: 90A
- Number of Poles: 3
- Rated Voltage: 480VAC, 50/60Hz
- Frame Size: TS3 225A
- Interrupt Rating: 14 to 20 kA
- Trip Unit: Thermal-Magnetic
- Dimensions: 6.7 in H x 4.13 in W x 4.07 in D
- Weight: 6.75 lbs
- Certifications: UL 489, CSA C22.2, IEC 60947-2
- Mounting: Fixed version with front terminals
Specifications
- Part Number: S3N090TW
- Manufacturer : ABB
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : SACE Isomax
- Type : S3N
- Voltage : 600
- Amperage : 90
- Phase : 3
- Poles : 3
- AIC rating : 25kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Frame Size : S3
- Protection : Thermal Magnetic
Product Data
- Weight : 7
