Product Info
- Manufacturer:ABB
- Sub-Category:Molded Case
Description
S203-K40

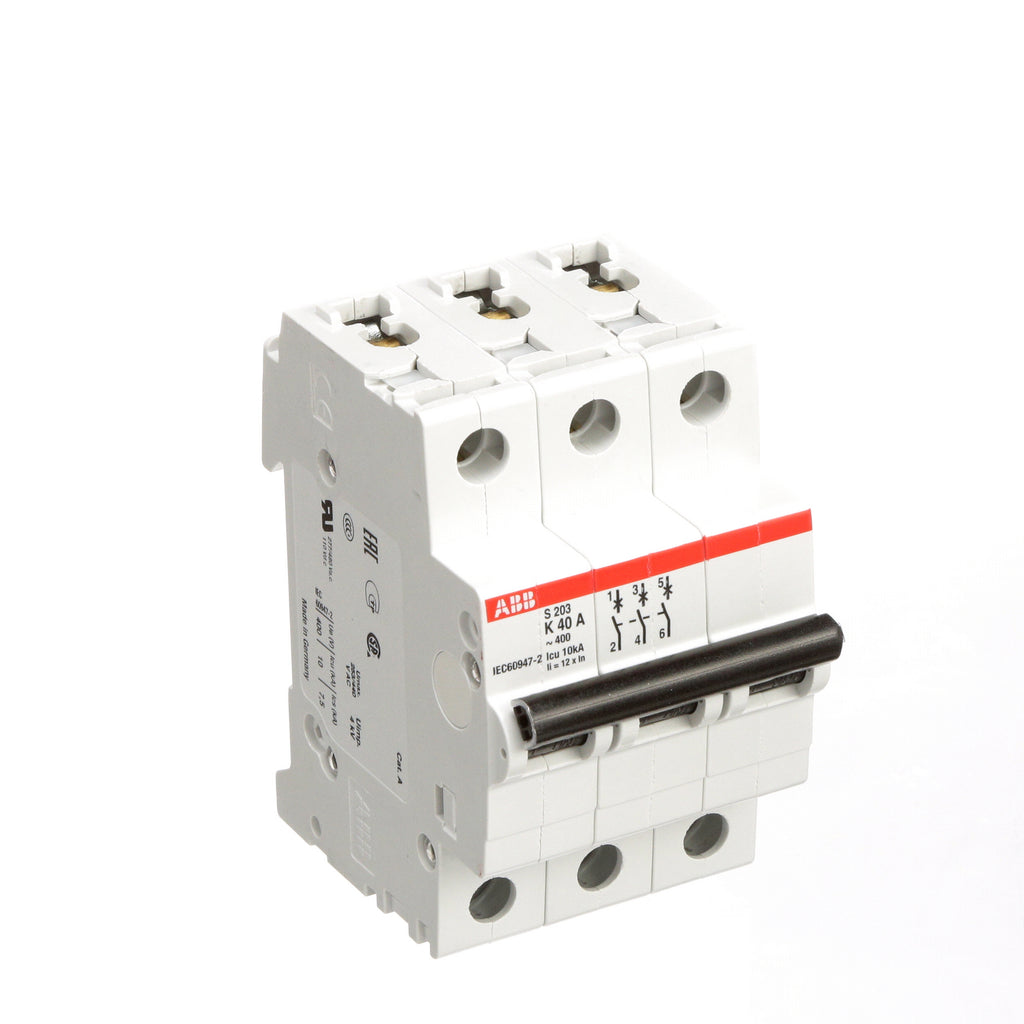

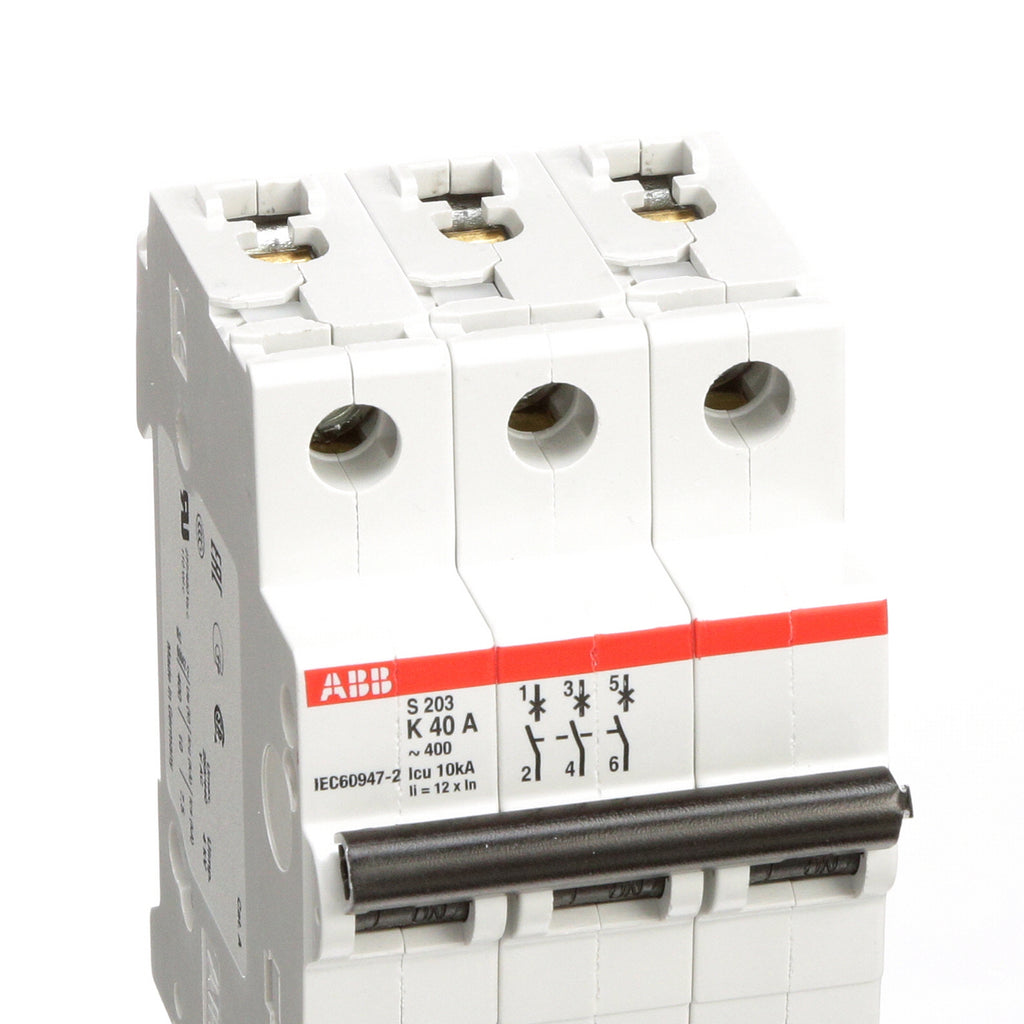

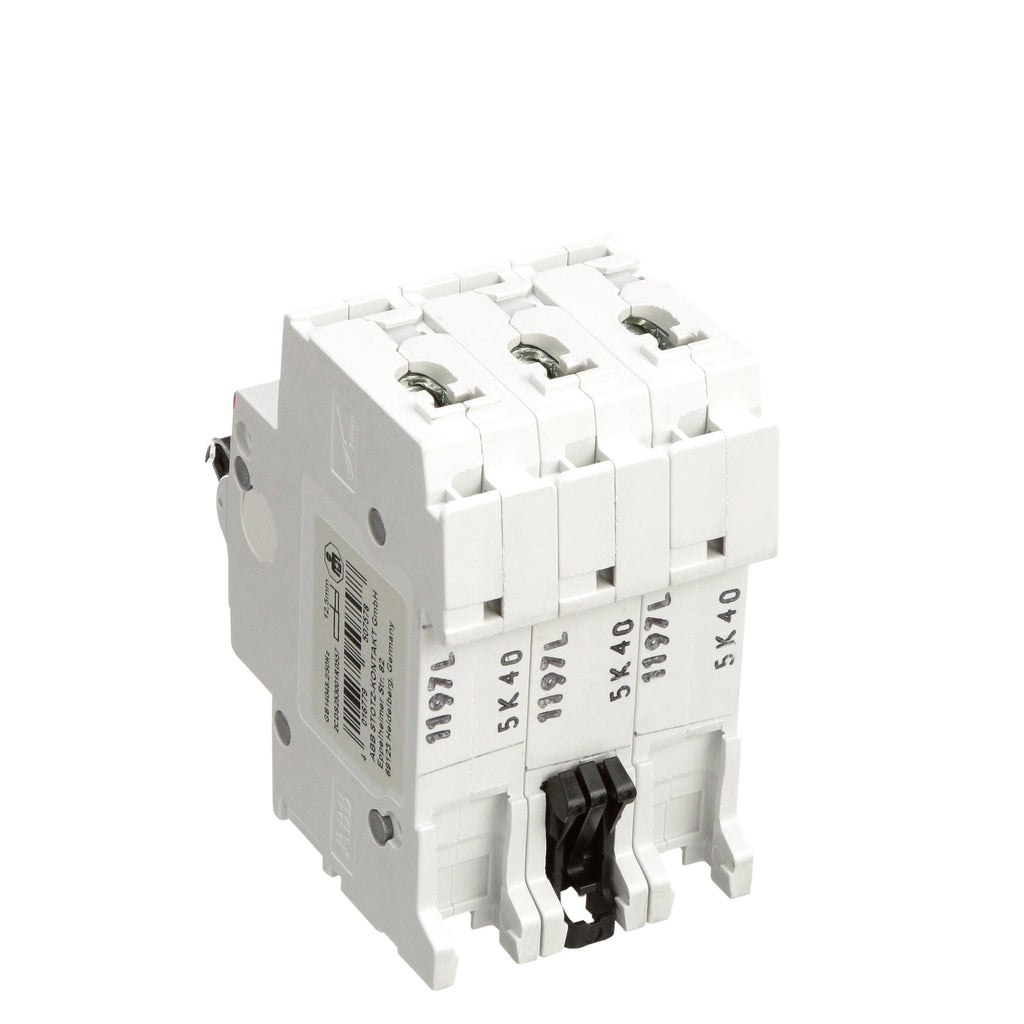

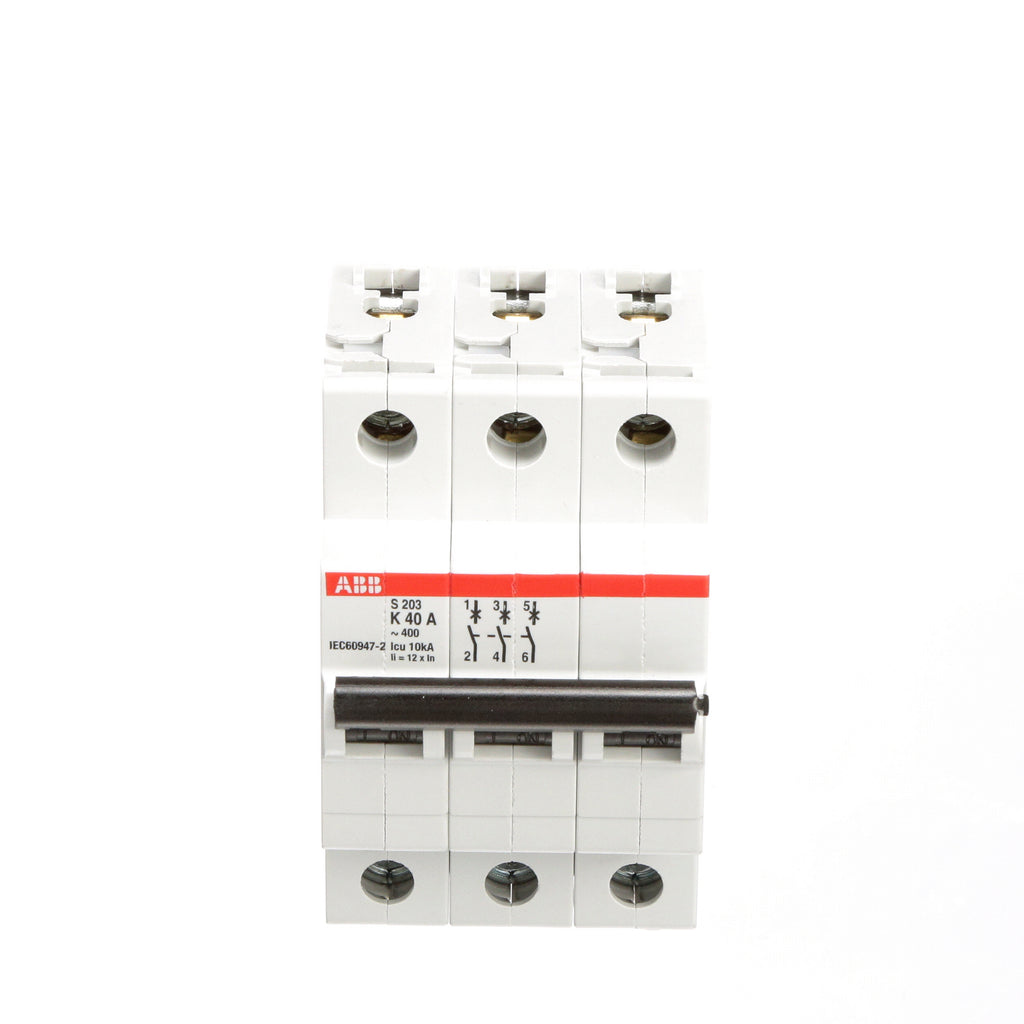

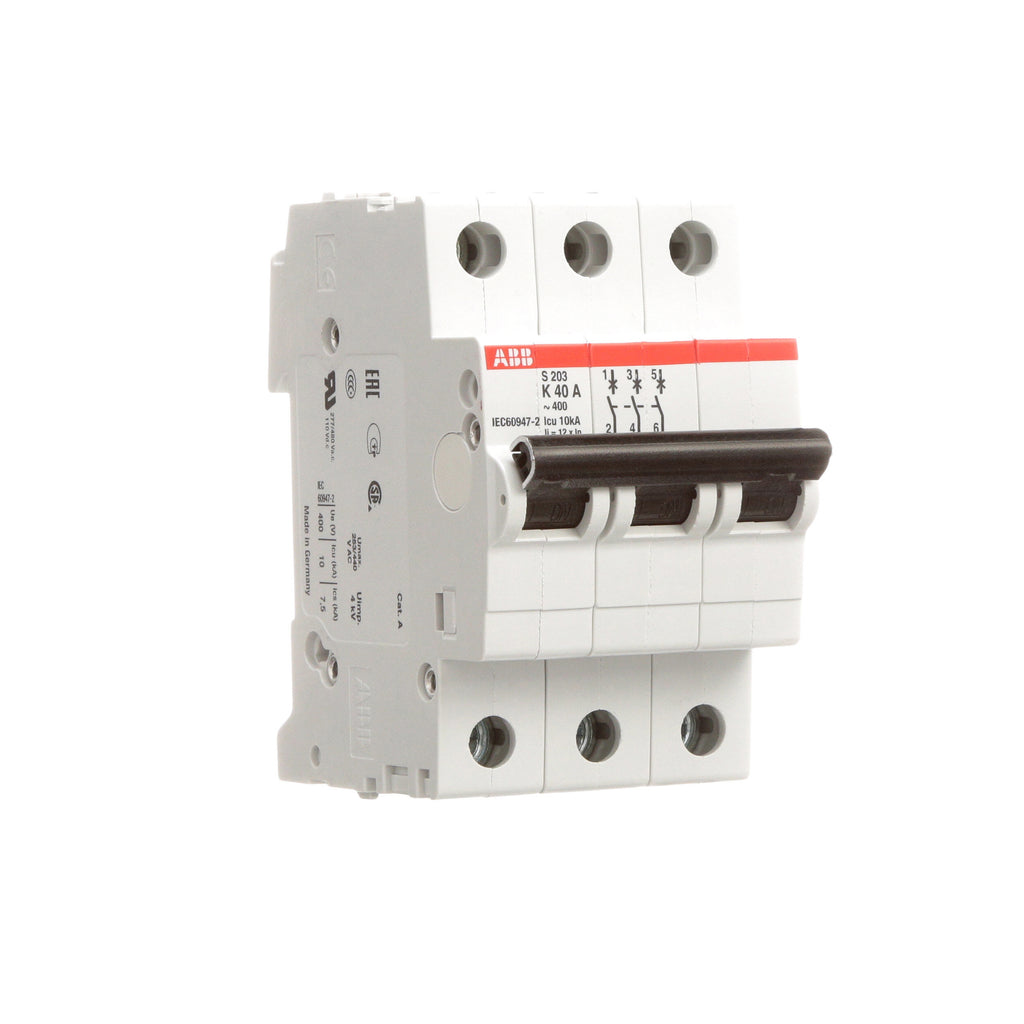

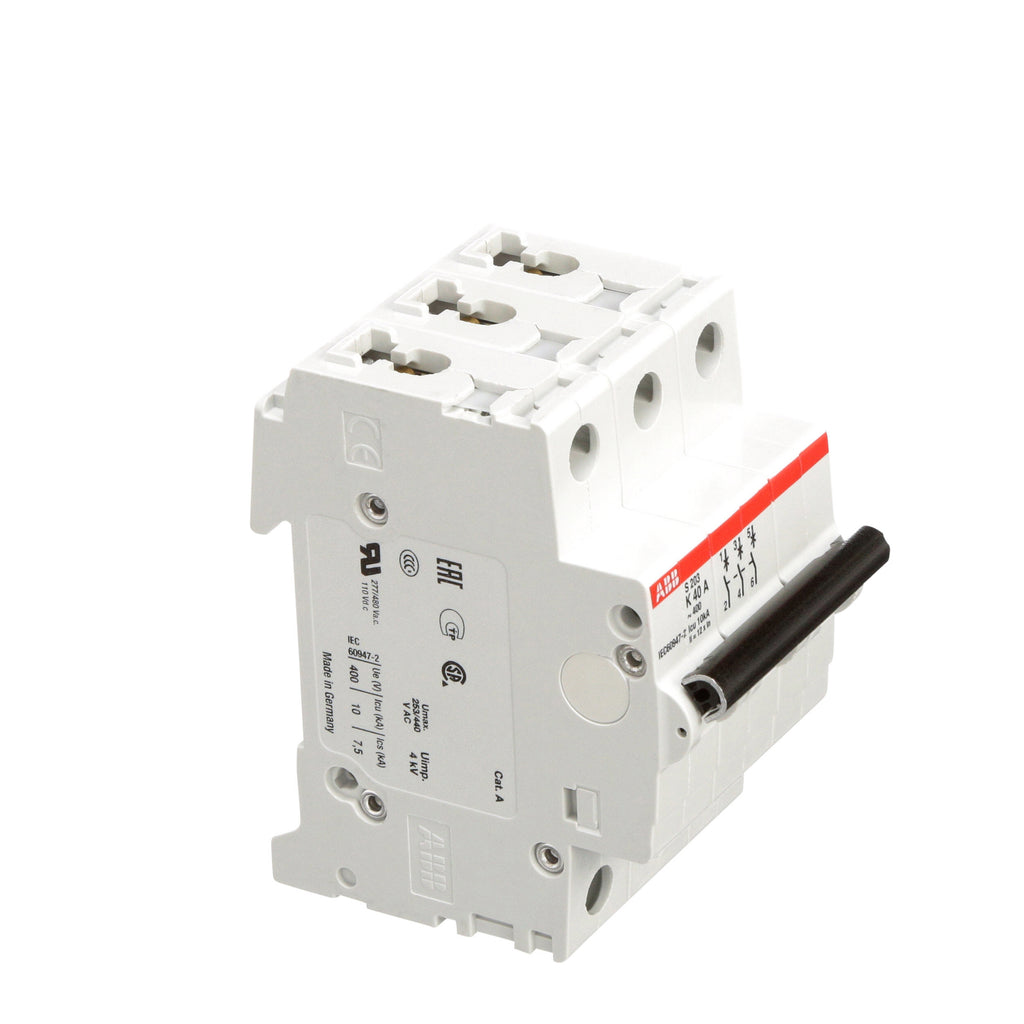

S203-K40 is a 3-pole, 40 amp circuit breaker from ABB designed for 480 Volt applications with thermal magnetic trip unit and DIN rail mounting.The S203-K40 circuit breaker features a 6 kA interrupting rating at 480V, suitable for protecting electrical circuits in commercial and industrial environments. It complies with UL 1077, CSA C22.2 No.235, and CE certifications, ensuring reliable and safe operation. The breaker uses the S200 series frame with a K trip characteristic, ideal for motor and general circuit protection.
- Key Specifications
- Amperage: 40 Amps
- Voltage Rating: 480Y/277 VAC
- Number of Poles: 3
- Mounting Type: DIN Rail
- Interrupting Rating: 6 kA at 480V
- Series/Frame: S200 Series
- Trip Unit: Thermal Magnetic, K Characteristic
- Certifications: UL 1077, CSA C22.2 No.235, CE
Specifications
- Part Number: S203-K40
- Manufacturer : ABB
- Brand : ABB
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : S 200 Series
- Type : S203-K
- Voltage : 480
- Amperage : 40
- Phase : 3
- Poles : 3
- AIC rating : 6kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 01677950757
- GTIN : 04016779507578
- Dimensions : Depth / Length 69 mm X Height 88 mm X Width 52.5 mm
- Weight : 2
- Certification : EN IEC UL
