Product Info
- Manufacturer:ABB
- Sub-Category:Molded Case
Description
S202-K60

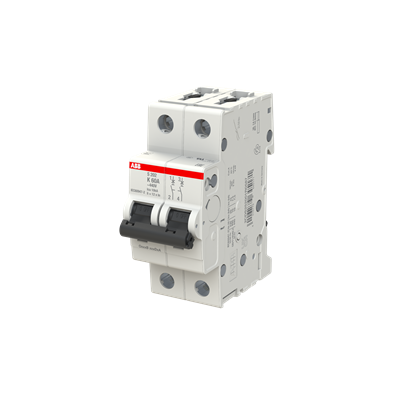

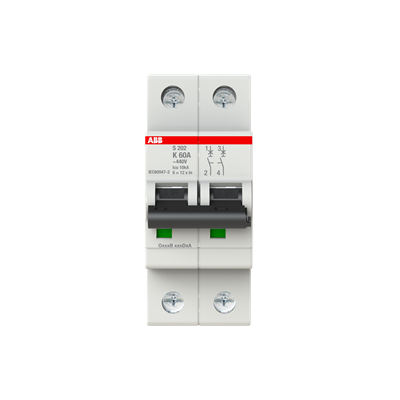

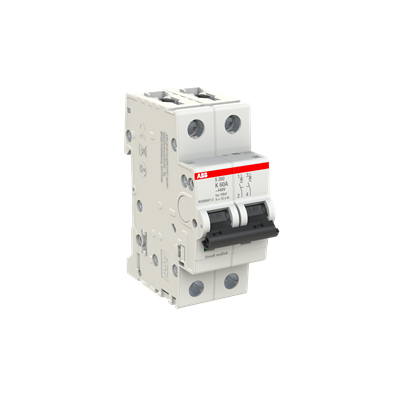

S202-K60 is a 2-pole, 60 amp miniature circuit breaker from ABB designed for reliable circuit protection in commercial and industrial applications.This ABB S202-K60 breaker features a K-type trip curve suitable for motor and general-purpose protection, supports 480Y/277V AC voltage, and mounts on a DIN rail. It has a 6kA interrupt rating at 480V, thermal magnetic trip unit with long time and instantaneous trip functions, and is UL 1077 recognized for safety compliance.
- Manufacturer: ABB
- Amperage: 60A
- Voltage: 480Y/277V AC
- Poles: 2
- Trip Curve: K-Type
- Interrupt Rating: 6kA at 480V
- Mounting Type: DIN Rail
- Frame/Series: S202
- Trip Unit: Thermal Magnetic
- Certifications: UL 1077 Recognized
- Suitable for reverse feed
- Compact supplementary circuit protection
Specifications
- Part Number: S202-K60
- Manufacturer : ABB
- Brand : ABB
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : S 200 Series
- Type : S202-K
- Voltage : 480
- Amperage : 60
- Phase : 1
- Poles : 2
- AIC rating : 6kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 01677964517
- GTIN : 04016779645171
- Dimensions : Depth / Length 69 mm X Height 88 mm X Width 35 mm
- Weight : 0.55
- Certification : EN IEC UL
