Product Info
- Manufacturer:ABB
- Sub-Category:Molded Case
Description

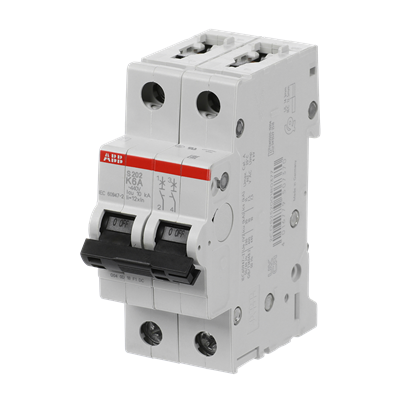

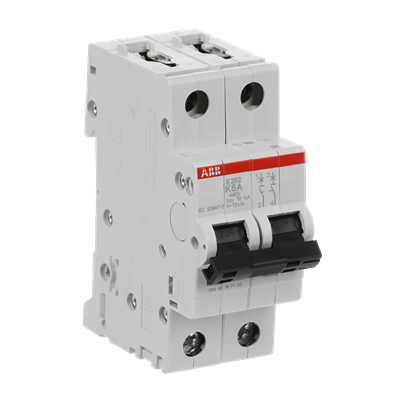

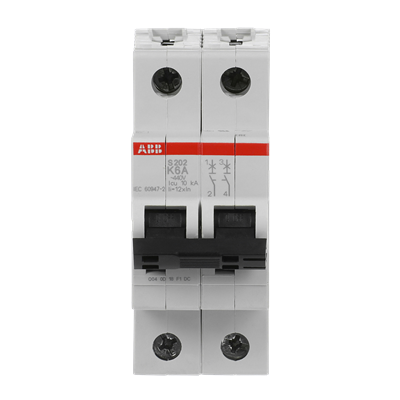

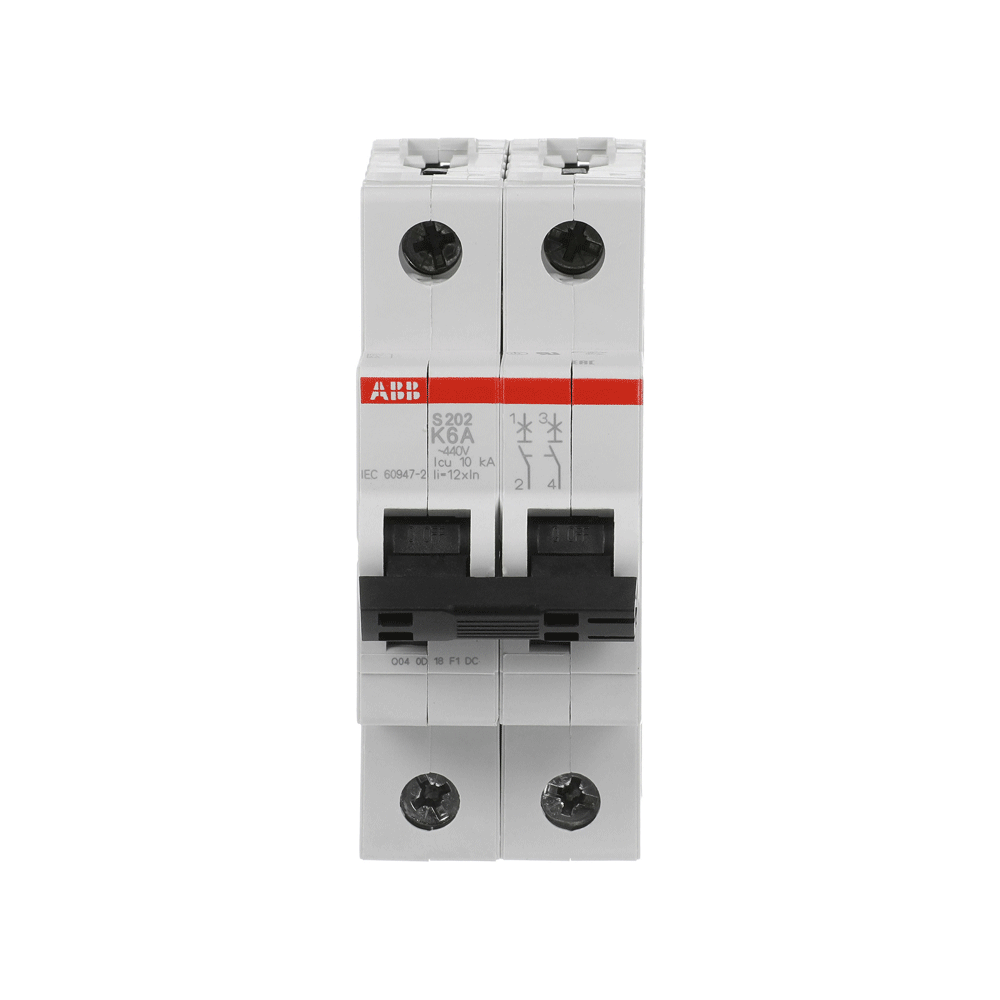

S202-K6
S202-K6 is a 6 amp, 480 Volt, 2 pole miniature circuit breaker from ABB's S202 frame series designed for reliable overcurrent protection.The S202-K6 features a thermal magnetic trip unit with K-curve tripping characteristics, suitable for both long-time overload and instantaneous short circuit protection. It supports bolt-on mounting and is rated for 6kA interrupting capacity at 480V AC. This breaker is current limiting and suitable for reverse feed applications, meeting IEC/EN 60947-2, UL489, and CSA 22.2 No. 5 certifications.
- Key Specifications
- Amperage: 6A
- Voltage: 480V AC
- Poles: 2
- Frame Type: S202
- Interrupt Rating: 6kA @ 480V
- Trip Unit: Thermal Magnetic, K-Curve
- Mounting Type: Bolt-On
- Suitable for Reverse Feed
- Standards: IEC/EN 60947-2, UL489, CSA 22.2 No. 5
- Contact Position Indication: Red ON / Green OFF
- Terminal Type: Screw Terminals
- Degree of Protection: IP20
Specifications
- Part Number: S202-K6
- Manufacturer : ABB
- Brand : ABB
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : S 200 Series
- Type : S202-K
- Voltage : 480
- Amperage : 6
- Phase : 1
- Poles : 2
- AIC rating : 6kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 662019171036
- GTIN : 04016779507370
- Dimensions : Depth / Length 69 mm X Height 88 mm X Width 35 mm
- Weight : 0.55
- Certification : EN IEC UL
