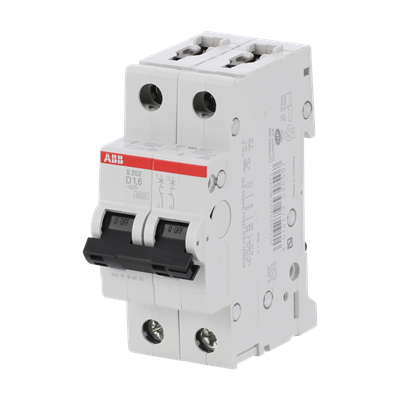

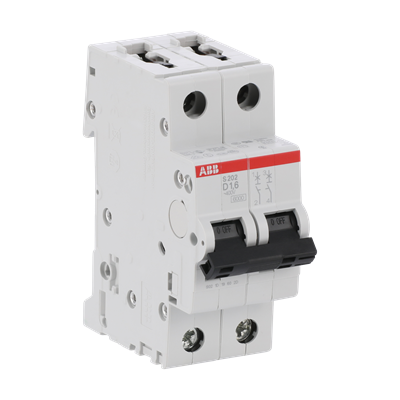

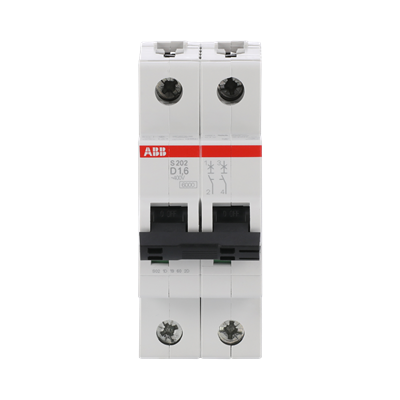

S202-D1.6 - ABB S200 2-Pole 1.6A 480VAC D-Curve DIN Rail Circuit Breaker

S202-D1.6

S202-D1.6 is a miniature circuit breaker from ABB's S200 series designed for branch circuit protection with DIN rail mounting. This 2-pole device features a D-curve trip characteristic and is rated for 1.6A at 230/400V AC or 480Y/277V AC, providing reliable overcurrent and short-circuit protection in industrial and commercial applications. The breaker delivers a 6kA short-circuit breaking capacity and meets multiple international standards including IEC EN 60898-1, IEC EN 60947-2, and UL 1077.

• Current Rating: 1.6A
• Number of Poles: 2
• Rated Voltage: 230/400V AC or 480Y/277V AC
• Trip Characteristic: D
• Short Circuit Breaking Capacity: 6kA
• Mounting: DIN Rail
• Mechanical Life: 20,000 cycles
• Operating Temperature: -25 to 55 degrees Celsius
• IP Rating: IP20
• Wire Connection: 0.75 to 25mm2
• Certifications: UL 1077, IEC EN 60898-1, IEC EN 60947-2

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: S202-D1.6
• Manufacturer : ABB
• Brand : ABB
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : S 200 Series
• Voltage : 480
• Amperage : 1.6
• Phase : 1
• Poles : 2
• AIC rating : 6kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Protection : Thermal Magnetic

Product Data

• UPC : 01677953050
• GTIN : 04016779530507
• Dimensions : Depth / Length 69 mm X Height 88 mm X Width 35 mm
• Weight : 5
• Certification : EN IEC UL
