Product Info
- Manufacturer:ABB
- Sub-Category:Molded Case
Description

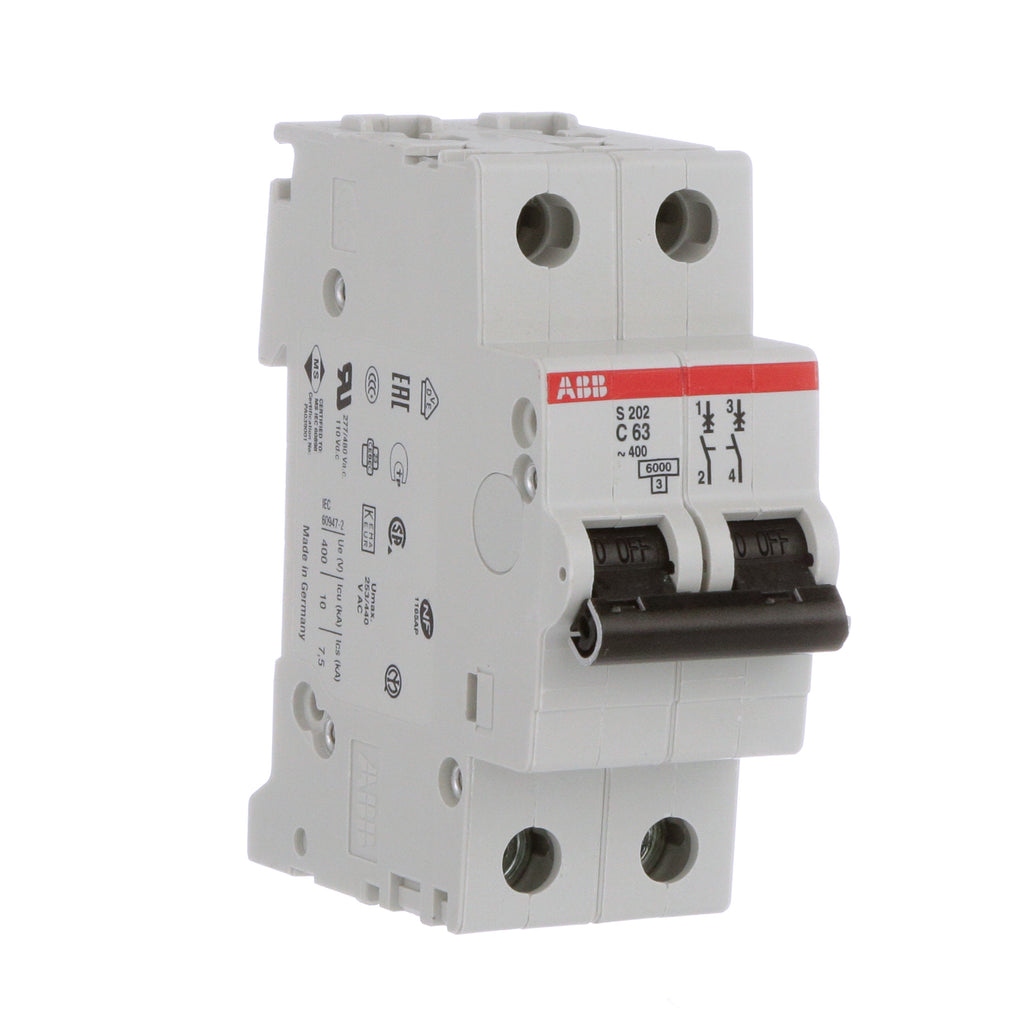

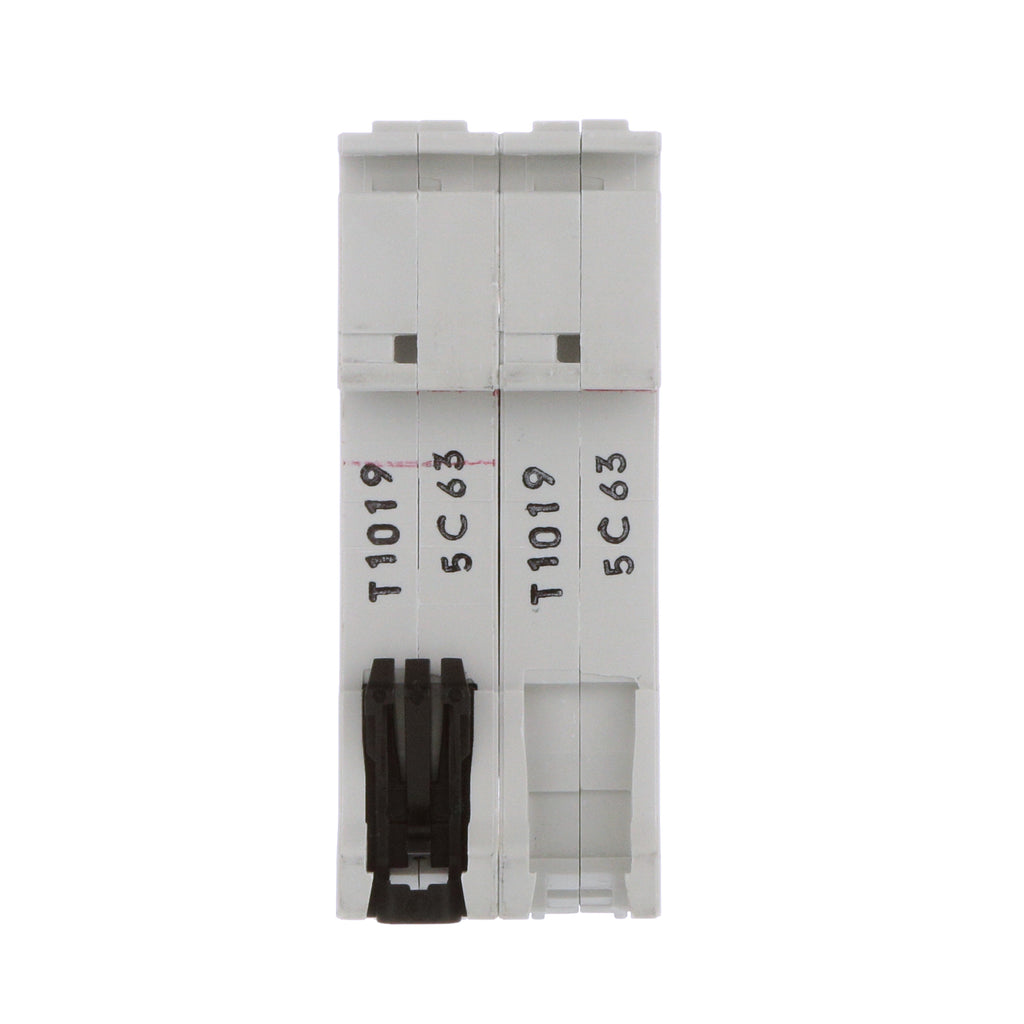

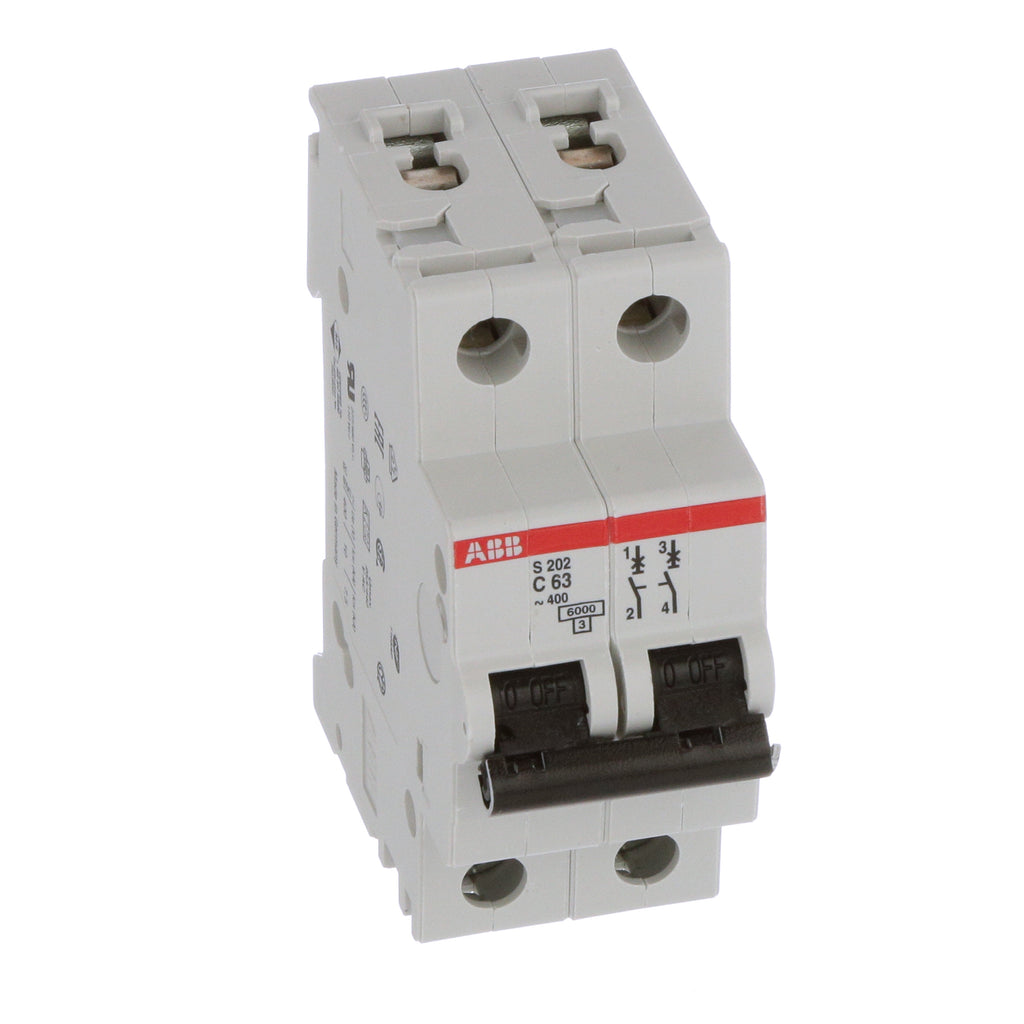

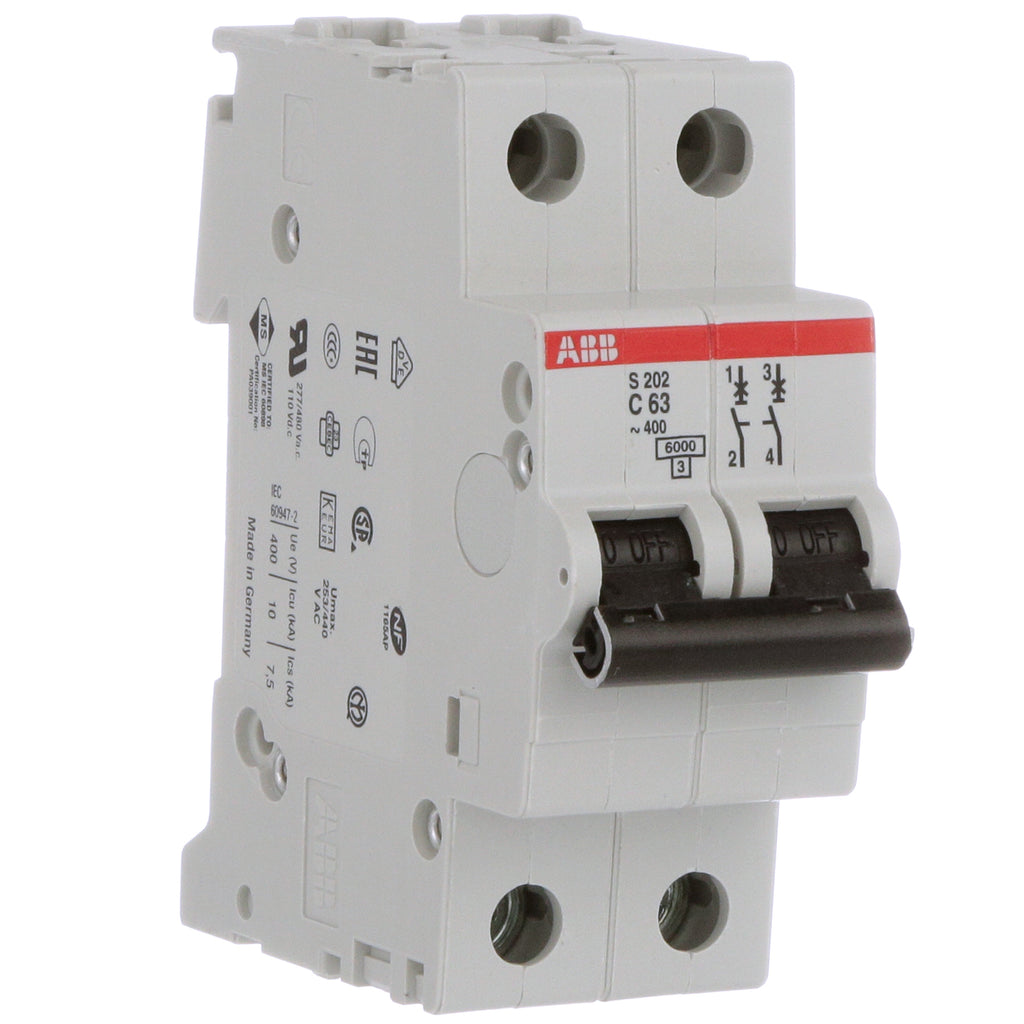

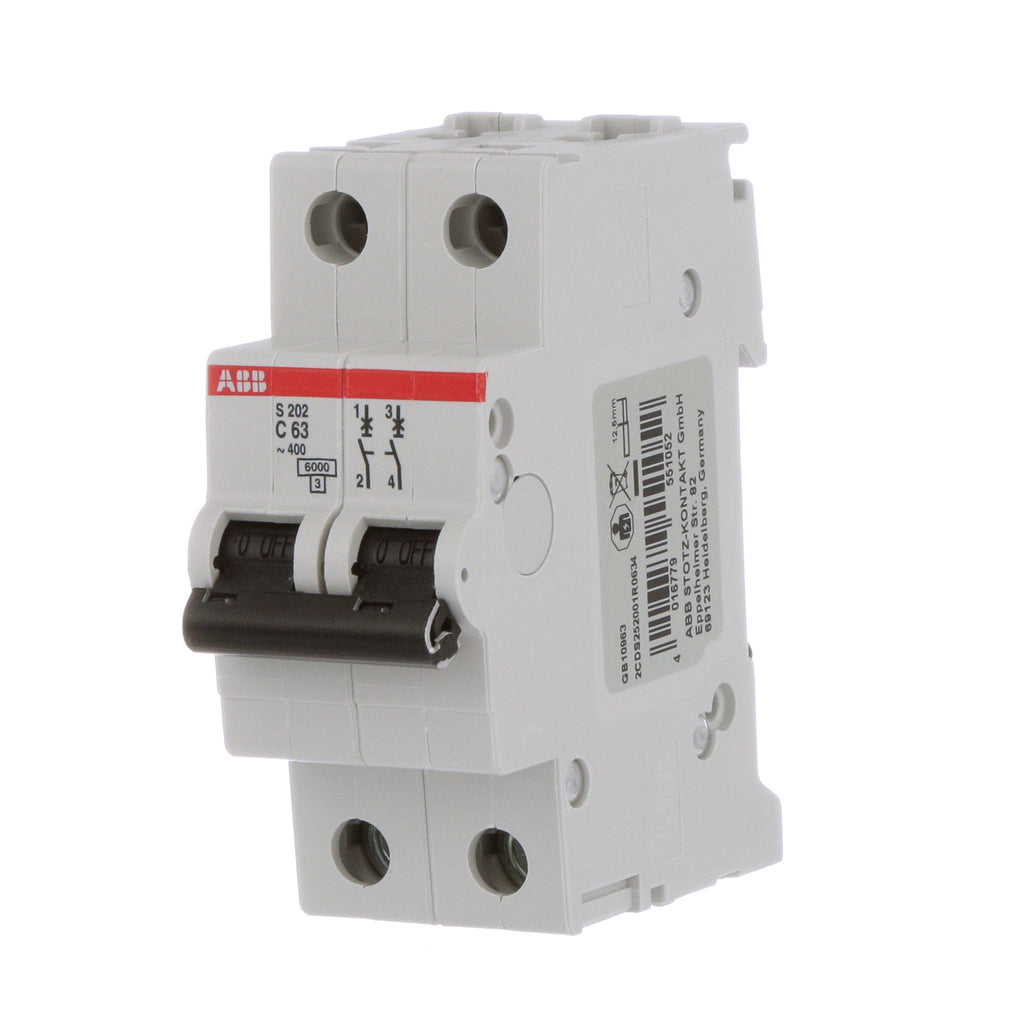

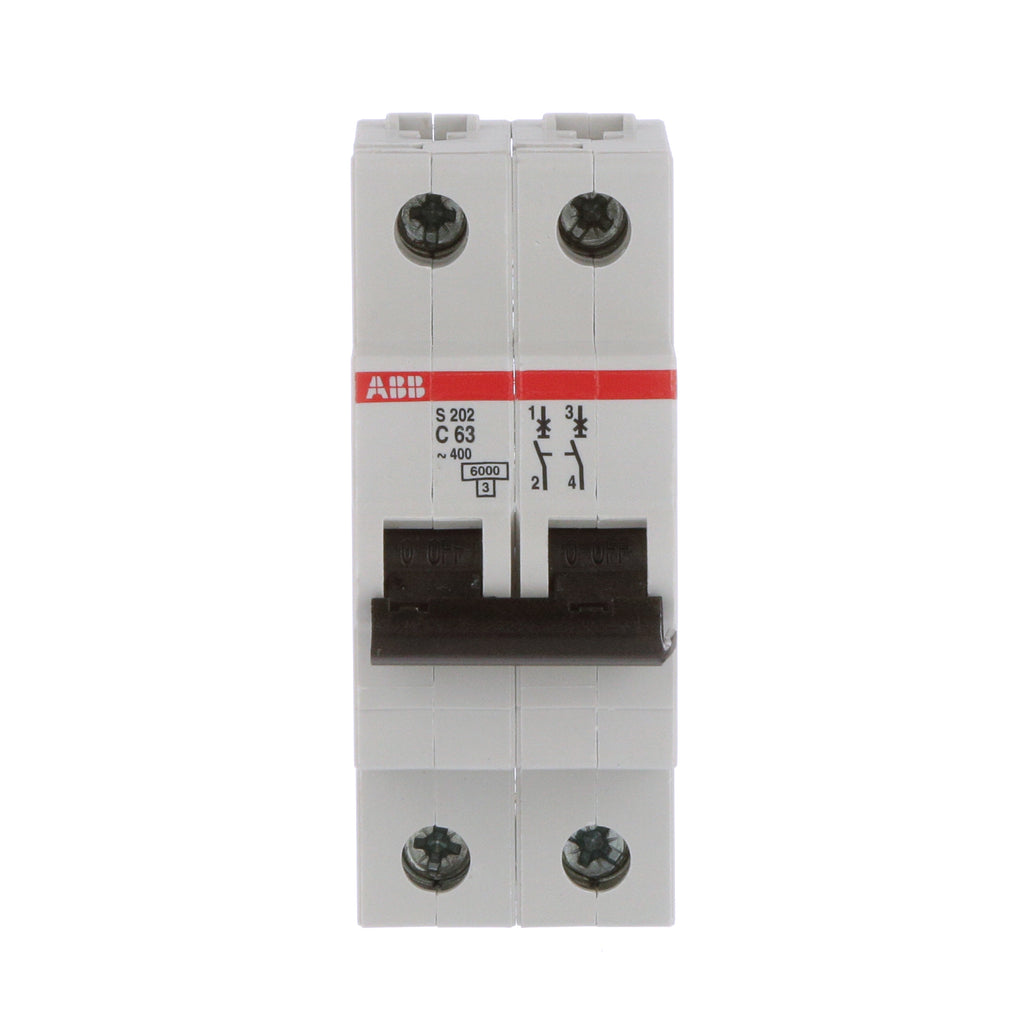

S202-C63
S202-C63 is a 2 pole, 63 amp miniature circuit breaker from ABB designed for reliable circuit protection in electrical installations.This ABB S202-C63 breaker features a C curve trip characteristic, suitable for general purpose protection against overloads and short circuits. It supports a voltage rating of 480Y/277V AC and has an interrupting capacity of 6kA at 480V. The breaker is designed for DIN rail mounting and uses fixed thermal and magnetic trip units for dependable operation. It complies with UL 1077 and IEC standards.
- Key Specifications
- Manufacturer: ABB
- Part Number: S202-C63
- Current Rating: 63 Amps
- Number of Poles: 2
- Voltage Rating: 480Y/277V AC
- Trip Curve: C Curve
- Interrupt Rating: 6kA @ 480V
- Mounting Type: DIN Rail
- Trip Unit: Fixed Thermal / Fixed Magnetic
- Standards: UL 1077, IEC
Specifications
- Part Number: S202-C63
- Manufacturer : ABB
- Brand : ABB
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : S 200 Series
- Type : S202-C
- Voltage : 480
- Amperage : 63
- Phase : 1
- Poles : 2
- AIC rating : 6kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 01677955105
- GTIN : 04016779551052
- Dimensions : Depth / Length 69 mm X Height 88 mm X Width 35 mm
- Weight : 0.6
- Certification : EN IEC UL
