2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:ABB
- Sub-Category:Molded Case
Description
S202-C50

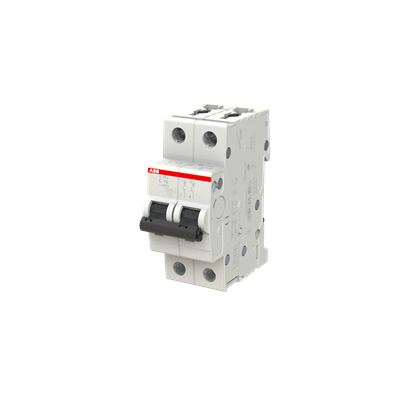

S202-C50 is a 2 pole, 50A miniature circuit breaker from the ABB S200 Series, featuring a thermal magnetic trip curve C and a 6kA interrupt rating. This DIN rail mount circuit breaker is designed for reliable protection in low-voltage applications. The S202-C50 provides current limiting performance with delayed thermal and instantaneous magnetic tripping mechanisms. It is suitable for use in industrial and commercial power distribution systems, offering high electrical and mechanical endurance for long-term reliability.
- Part Number: S202-C50
- Manufacturer: ABB
- Series/Frame: S200 Series
- Amperage: 50A
- Voltage: 480V AC, 480Y/277V AC
- Poles: 2
- Interrupt Rating: 6kA
- Mounting Type: DIN Rail
- Trip Unit: Thermal Magnetic, Curve C
- Electrical Endurance: 10,000 AC cycles
- Mechanical Endurance: 20,000 cycles
- Certifications: UL1077 Recognized
Specifications
- Part Number: S202-C50
- Manufacturer : ABB
- Brand : ABB
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : S 200 Series
- Voltage : 480
- Amperage : 50
- Phase : 1
- Poles : 2
- AIC rating : 6kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 01677955104
- GTIN : 04016779551045
- Dimensions : Depth / Length 69 mm X Height 88 mm X Width 35 mm
- Weight : 5
- Certification : EN IEC UL
