Product Info
- Manufacturer:ABB
- Sub-Category:Molded Case
Description

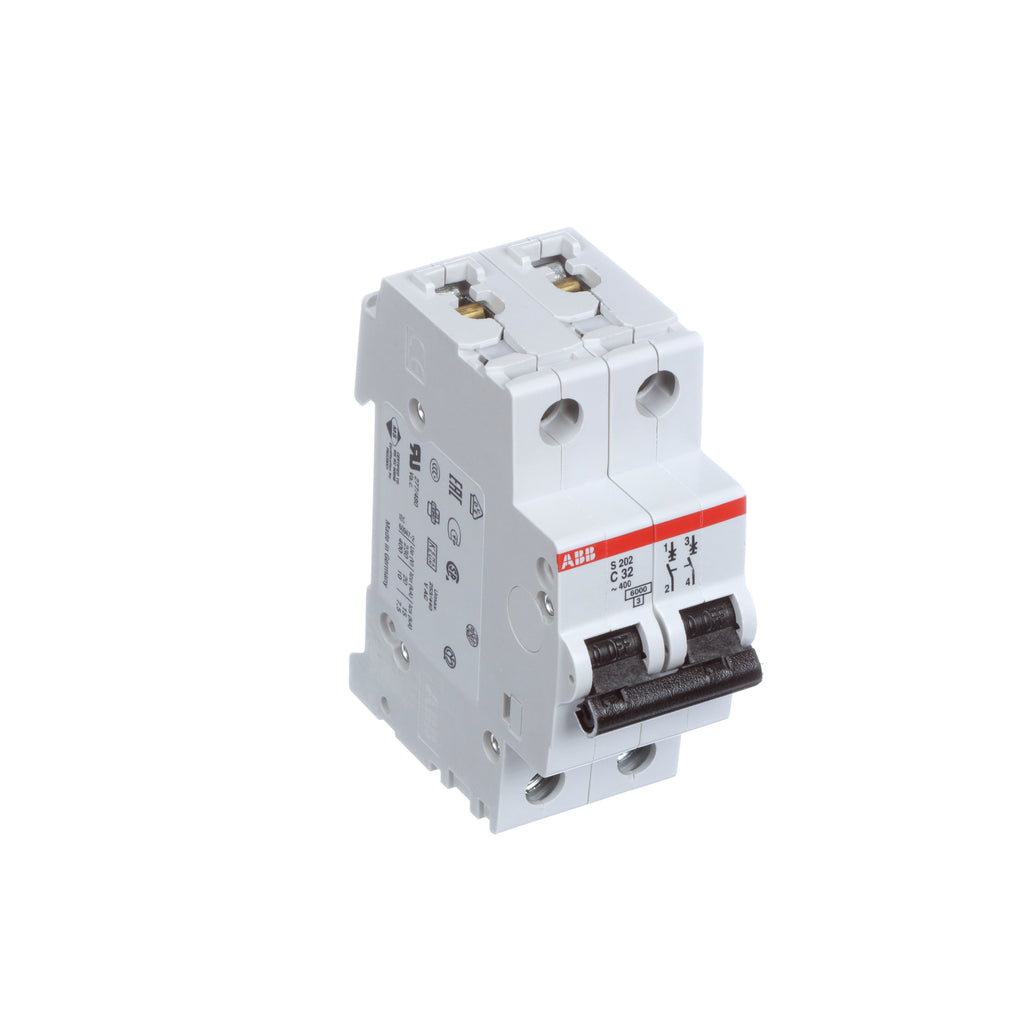

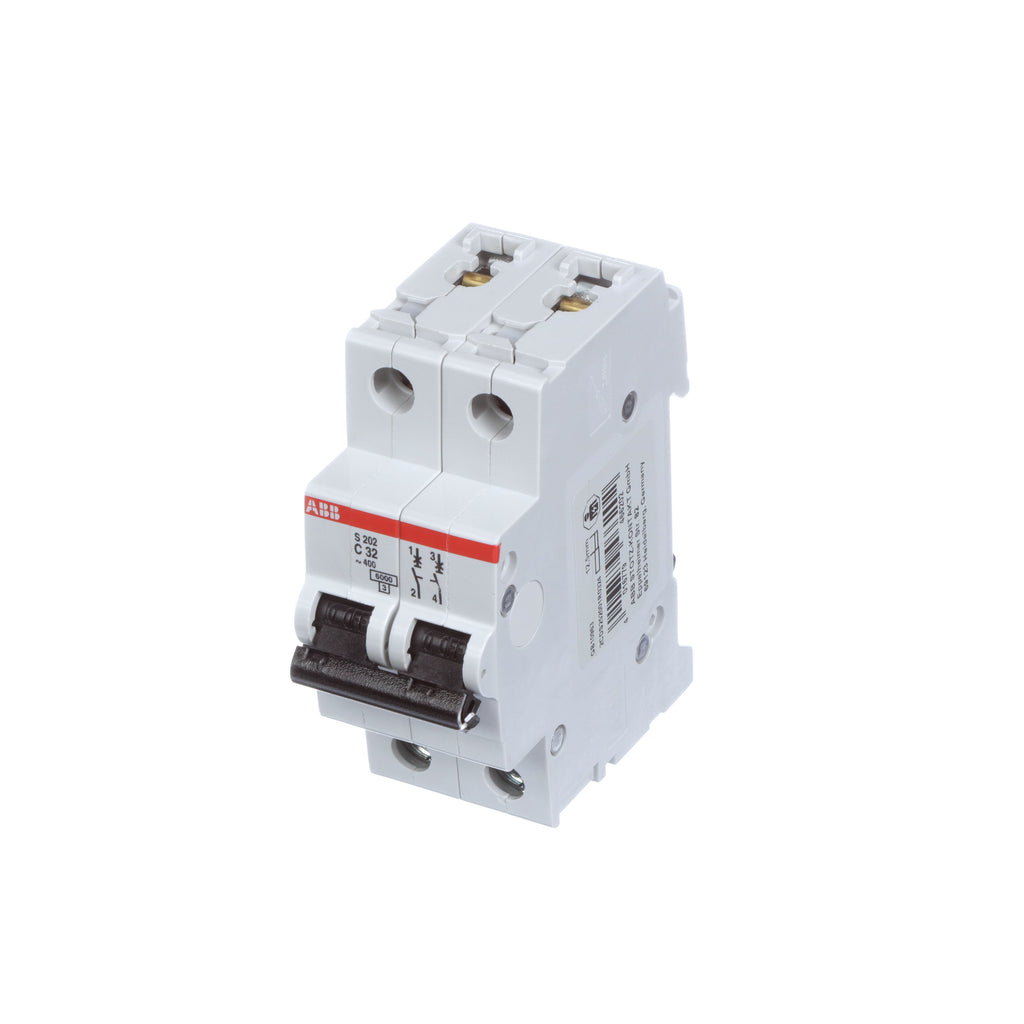

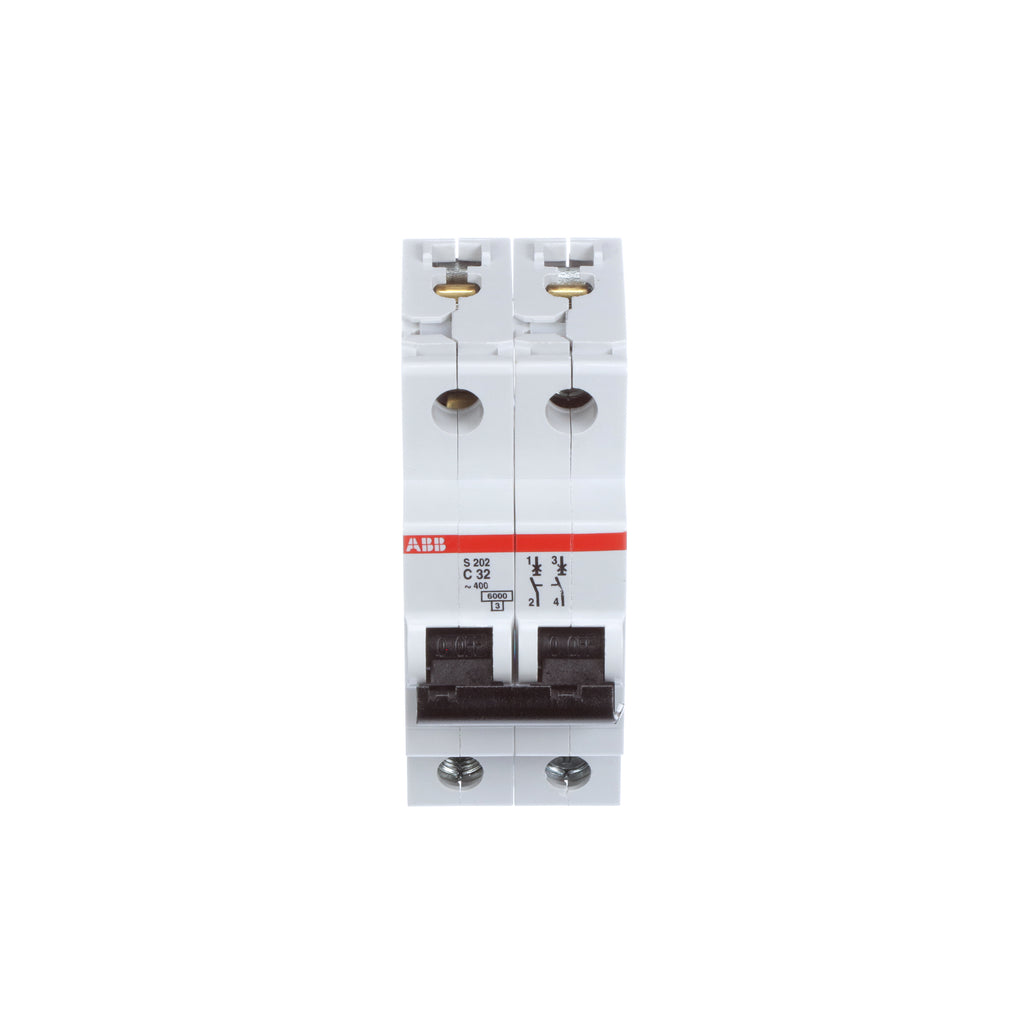

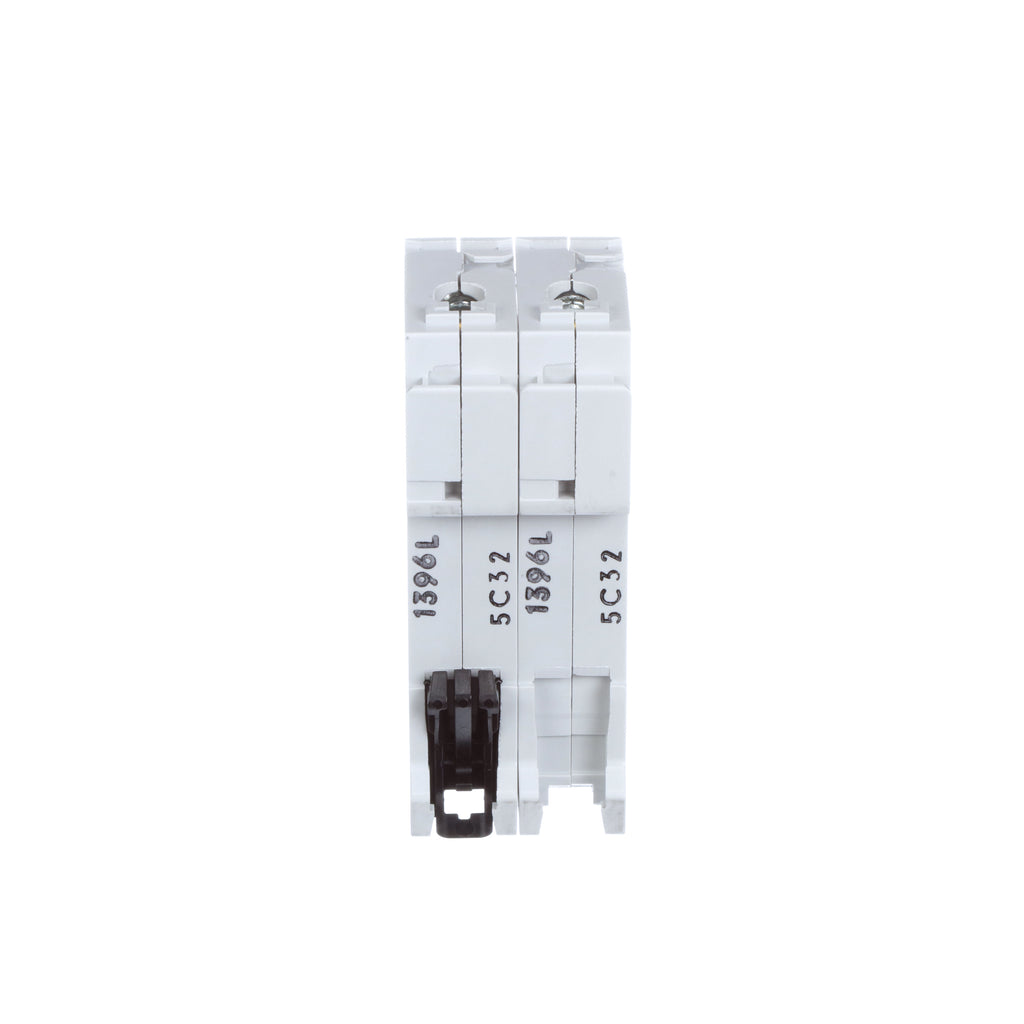

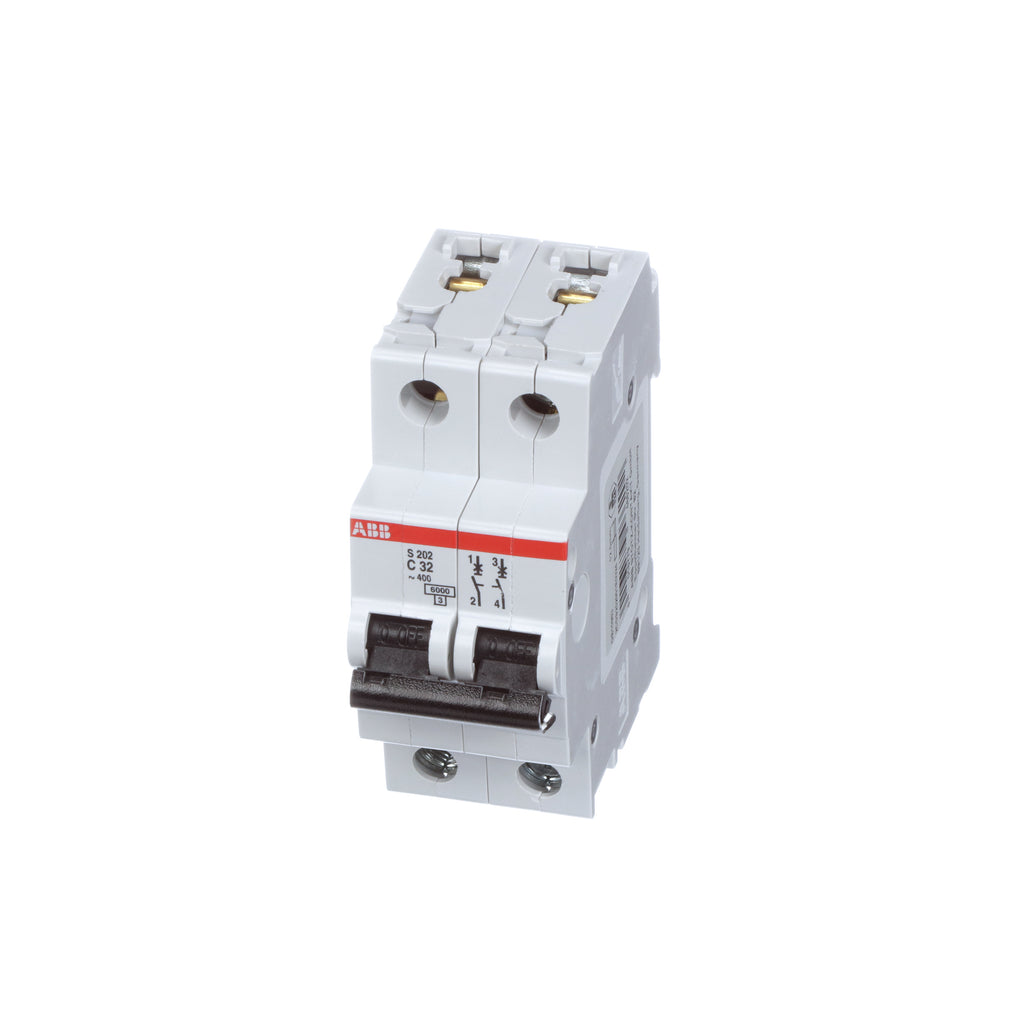

S202-C32
S202-C32 is a 32 amp, 2-pole miniature circuit breaker from ABB designed for reliable electrical protection.The S202-C32 features a thermal-magnetic trip unit with a Curve C tripping characteristic, suitable for general-purpose circuit protection. It supports a rated operational voltage of 480Y/277V AC and has a 6 kA interrupting rating. The breaker mounts on a DIN rail and complies with IEC standards for safety and performance.
- Amperage: 32 A
- Poles: 2
- Voltage Rating: 480Y/277 V AC
- Mounting Type: DIN Rail
- Interrupt Rating: 6 kA
- Trip Unit: Thermal Magnetic, Curve C
- Series/Frame: S200
- Standards: IEC 60898-1, IEC 60947-2
- Energy Limiting Class: 3
- Pollution Degree: 3
- Rated Frequency: 50/60 Hz
Specifications
- Part Number: S202-C32
- Manufacturer : ABB
- Brand : ABB
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : S 200 Series
- Type : S202-C
- Voltage : 480
- Amperage : 32
- Phase : 1
- Poles : 2
- AIC rating : 6kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 4016779466202
- GTIN : 04016779466202
- Dimensions : Depth / Length 69 mm X Height 88 mm X Width 35 mm
- Weight : 0.6
- Certification : EN IEC UL
