S202-C20 - ABB 2 Pole 20A 480V Feed-Thru Circuit Breaker, 6kA Interrupt, C Curve, DIN Rail Mount, System Pro M Compact S200 Series, UL1077

SKU: S202-C20-New
Condition: New
Price:
$39.20
Stock:
Low inventory, please call for stock check
Factory Lead Time: 17 business days. Ships based on manufacturer availability when out of stock. All factory-ordered products are non-cancelable and non-returnable.

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

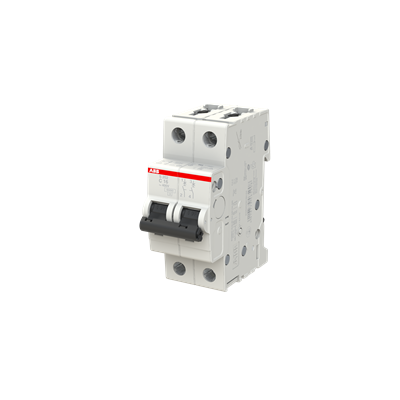

S202-C20 - ABB 2 Pole 20A 480V Feed-Thru Circuit Breaker, 6kA Interrupt, C Curve, DIN Rail Mount, System Pro M Compact S200 Series, UL1077 - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
S202-C20 - ABB 2 Pole 20A 480V Feed-Thru Circuit Breaker, 6kA Interrupt, C Curve, DIN Rail Mount, System Pro M Compact S200 Series, UL1077 - Essential Electric Supply

Description

S202-C20


S202-C20 is a 2-pole, 20A, 480V feed-thru circuit breaker from ABB, designed for reliable protection in commercial and industrial applications.

This miniature circuit breaker features a thermal-magnetic trip unit with C curve for balanced overload and short-circuit protection, current limiting design, and DIN rail mounting for easy installation. It is part of the System Pro M Compact S200 series, recognized for robust performance and compliance with key safety standards.

    Key Specifications
  • Part Number: S202-C20
  • Manufacturer: ABB
  • Amperage: 20A
  • Voltage: 480V AC (480Y/277V), 125V DC
  • Poles: 2
  • Mounting Type: DIN Rail
  • Interrupt Rating: 6kA at 480V AC
  • Series/Frame: System Pro M Compact S200
  • Trip Unit: Thermal-Magnetic, C Curve
  • Certifications: UL1077 Recognized
  • Application: Feed-Thru
  • Environmental: RoHS Compliant

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: S202-C20
  • Manufacturer : ABB
  • Brand : ABB
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : S 200 Series
  • Type : S202-C
  • Voltage : 480
  • Amperage : 20
  • Phase : 1
  • Poles : 2
  • AIC rating : 6kA@480V
  • Connection : Feed-Thru
  • Functions : LI - Long-Time and Instantaneous
  • Protection : Thermal Magnetic

Product Data

  • GTIN : 04016779466004
  • Dimensions : Depth / Length 69 mm X Height 88 mm X Width 35 mm
  • Weight : 5
  • Certification : EN IEC UL
