Product Info
- Manufacturer:ABB
- Sub-Category:Molded Case
Description

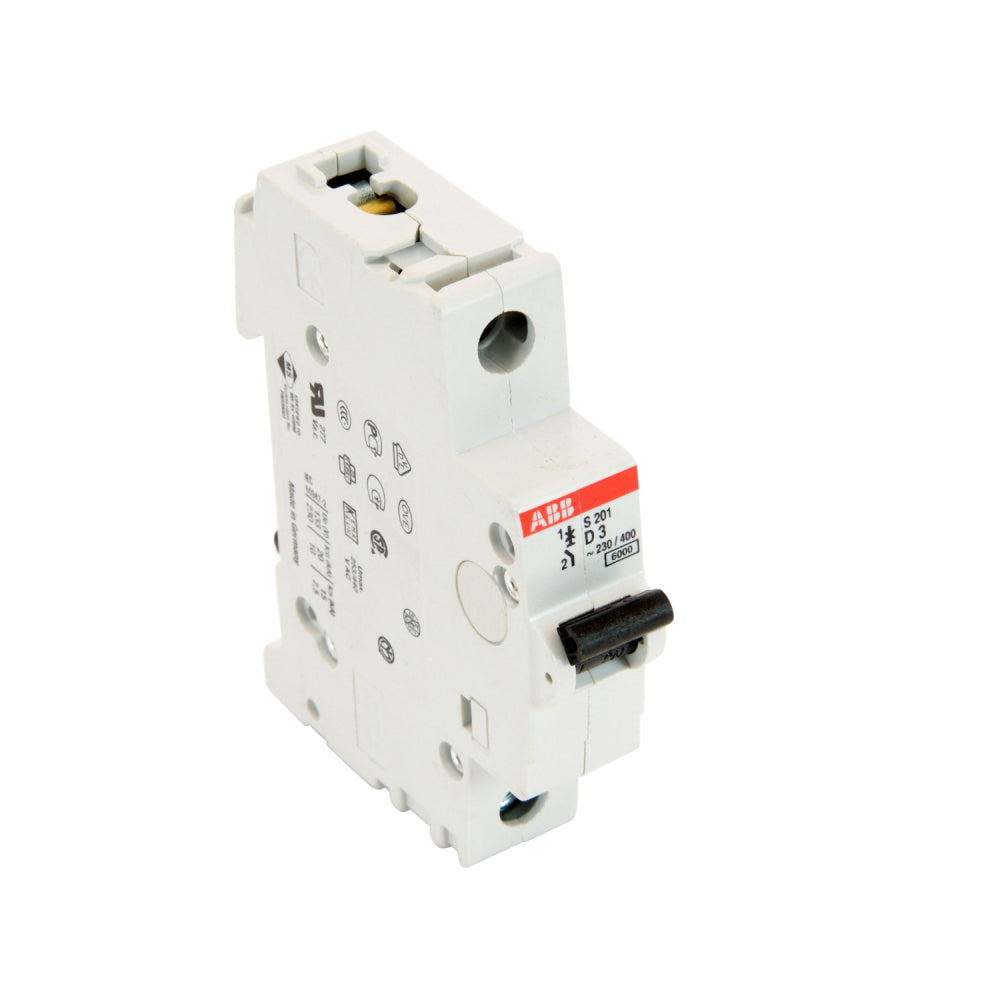

S201-D3
S201-D3 is a 1-pole miniature circuit breaker from ABB's System Pro M Compact S200 series, rated for 3 amperes at 480Y/277VAC with D trip curve characteristics and 6kA interrupt rating. This current-limiting MCB features thermal-magnetic tripping mechanisms with fast breaking time of 2.5 to 3.5 milliseconds, designed for reliable protection in control circuits and cable applications. The breaker is DIN rail mounted with a compact footprint of 17.5mm width, 88mm length, and 69mm depth, offering finger-safe terminals and multi-function terminal options suitable for reverse feed applications.
- 1 Pole Configuration
- 3 Ampere Rated Current
- 480Y/277VAC Voltage Rating
- D Trip Curve Characteristic
- 6kA Short Circuit Breaking Capacity
- Thermal-Magnetic Trip Unit
- DIN Rail Mounting
- UL 1077 Certified
- IEC 898 Compliant
- Current Limiting Design
Specifications
- Part Number: S201-D3
- Manufacturer : ABB
- Brand : ABB
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : S 200 Series
- Type : S201-D
- Voltage : 277
- Amperage : 3
- Phase : 1
- Poles : 1
- AIC rating : 6kA@277V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- GTIN : 04016779529976
- Weight : 0.03
