Product Info
- Manufacturer:ABB
- Sub-Category:Molded Case
Description
S201-C32

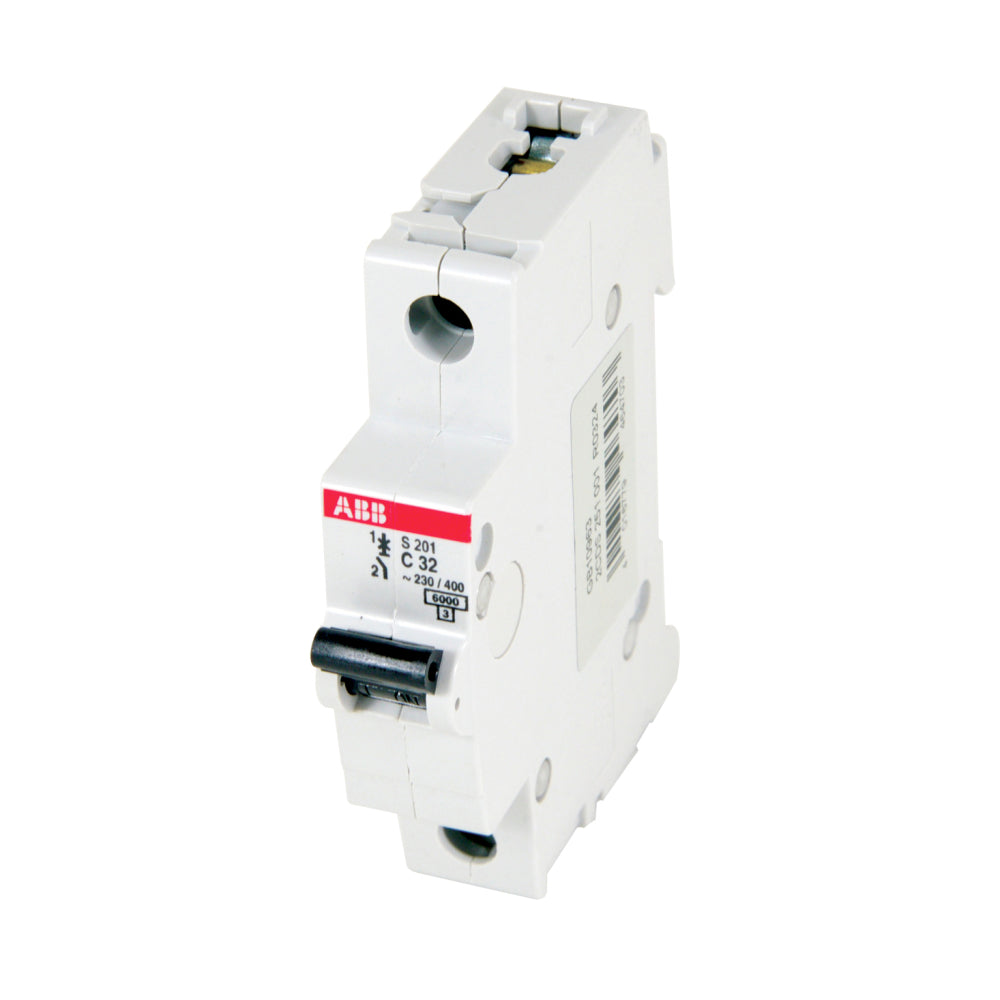

S201-C32 is a 1 pole, 32 amp, 277V miniature circuit breaker from the ABB S200 Series, designed for reliable branch circuit protection in commercial and industrial applications. This feed-thru breaker features delayed thermal and electromagnetic tripping mechanisms for overload and short-circuit protection. It is current-limiting, DIN rail mounted, and suitable for use in control panels and distribution boards. The S201-C32 is rated for 6kA interrupting capacity at 277V and complies with UL 489 and IEC 60947-2 standards.
- Part Number: S201-C32
- Manufacturer: ABB
- Series: S200
- Poles: 1
- Rated Current: 32A
- Rated Voltage: 277V AC
- Interrupt Rating: 6kA @ 277V
- Mounting Type: DIN Rail
- Tripping Characteristic: C Curve
- Standards: UL 489, IEC 60947-2
- Application: Branch Circuit Protection
- Feed-Thru Design
Specifications
- Part Number: S201-C32
- Manufacturer : ABB
- Brand : ABB
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : S 200 Series
- Type : S201-C
- Voltage : 277
- Amperage : 32
- Phase : 1
- Poles : 1
- AIC rating : 6kA@277V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 016779464707
- Weight : 0.2
