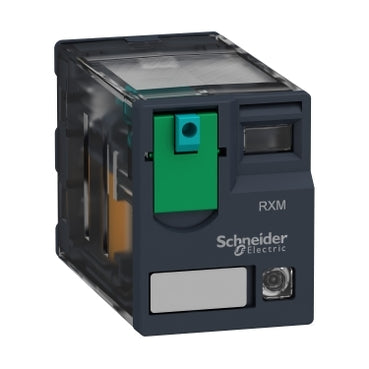

RXM4AB2BD - Schneider Electric 6A 24V DC 4PDT Miniature Plug-In Relay with LED and Lockable Test Button

RXM4AB2BD

RXM4AB2BD is a Schneider Electric 6A, 4PDT miniature plug-in relay with LED indication and a lockable test button designed for industrial control applications.This relay operates with a 24 V DC coil voltage and features four changeover (4 CO) contacts rated for 6 A at 250 V AC or 28 V DC. It includes a mechanical indicator and a green LED for clear contact status display. The relay is designed for plug-in mounting on RXZE sockets and supports faston/flat pin terminals. It offers high durability with 10 million mechanical cycles and 100,000 electrical cycles for resistive loads. The device has an IP40 protection rating and meets international standards including IEC, UL, CSA, CE, and Lloyd's certifications. Its compact design suits applications in industrial machines, HVAC, automation control panels, motor controls, and more.

Key Specifications
• Contact Form: 4PDT (4 Changeover Contacts)
• Current Rating: 6 A
• Coil Voltage: 24 V DC
• Mounting Type: Plug-in on RXZE socket
• Contact Material: Silver Alloy (AgNi)
• Maximum Switching Capacity: 1500 VA / 168 W
• Operating Rate: ≤ 1200 cycles/hour under load
• Mechanical Durability: 10,000,000 cycles
• Electrical Durability: 100,000 cycles (resistive load)
• Protection Rating: IP40
• Operating Temperature Range: -40 to 55 °C
• Certifications: IEC, UL, CSA, CE, Lloyd's
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: RXM4AB2BD
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Motor Control Part And Accessory
• Section : Relays
• Family : Zelio
• Type : RXM



Product Data

• UPC : 038911940381
• GTIN : 03389119403818
• Country of Origin : China
• Weight : 0.077
• Certification : CE Certified, CSA C22.2 No 14, CSA Certified, EN/IEC 61810-1, GOST, Lloyd's, UL 508, UL Listed
