Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Molded Case
Description
RGH325035E

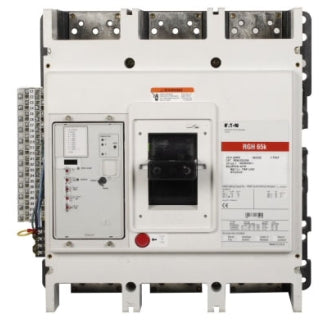

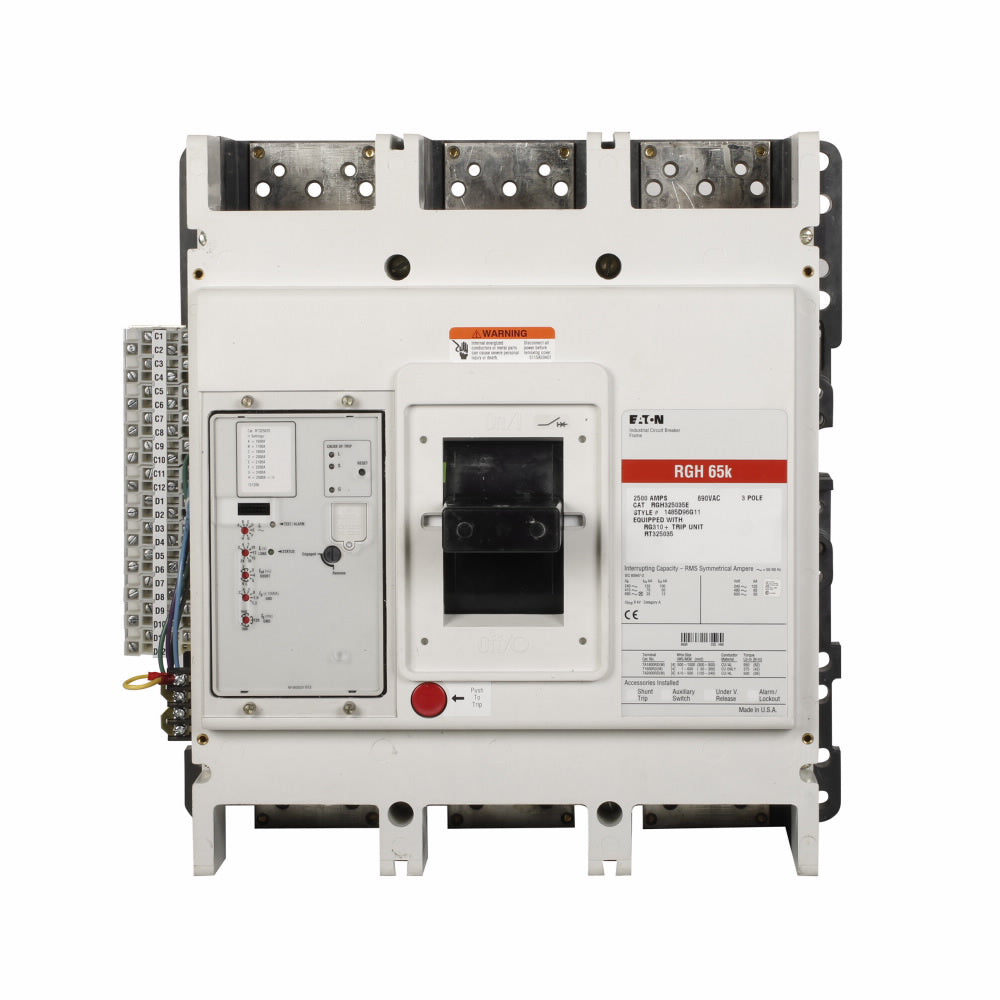

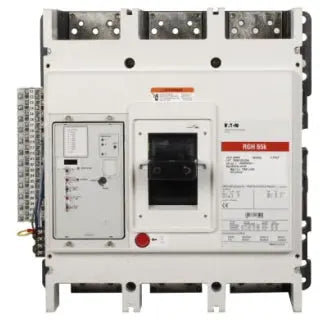

RGH325035E is a Cutler Hammer Series G RG-frame molded case circuit breaker rated for 2500 amps and 600 volts AC with 3 poles.This circuit breaker features electronic trip unit technology with long time, short time, and ground fault trip functions. It offers a 65kA interrupt rating at 480V and 125kA at 240V, suitable for heavy-duty industrial applications. The breaker includes line and load side lug terminals and is designed for feed-thru mounting. It uses a thermal magnetic trip mechanism with a non-interchangeable trip unit.
- Key Specifications
- Amperage: 2500A
- Voltage Rating: 600V AC
- Poles: 3
- Frame Type: RG
- Series: Series G
- Interrupt Rating: 65kA @ 480V, 125kA @ 240V
- Trip Unit: Electronic LSG (Long time, Short time, Ground fault)
- Mounting Type: Feed-Thru
- Trip Mechanism: Thermal Magnetic
- Terminals: Line & Load Side Lug
- Non-Interchangeable Trip
Specifications
- Part Number: RGH325035E
- Manufacturer : Cutler Hammer
- Brand : Eaton
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Series G
- Type : RGH
- Voltage : 600
- Amperage : 2500
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Bolt-On
- Functions : LSG - Long-Time, Short-Time and Ground Fault
- Protection : Solid State
Product Data
- UPC : 786685574592
- GTIN : 00786685574592
- Country of Origin : United States
- Dimensions : 9.75 in x 15.5 in x 15.5 in (Length/Depth x Height x Width)
- Weight : 115
- Certification : UL Listed
