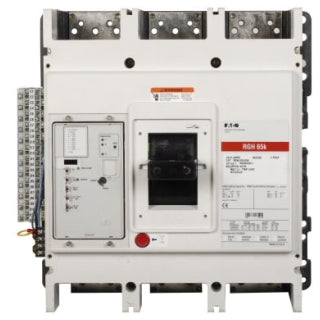

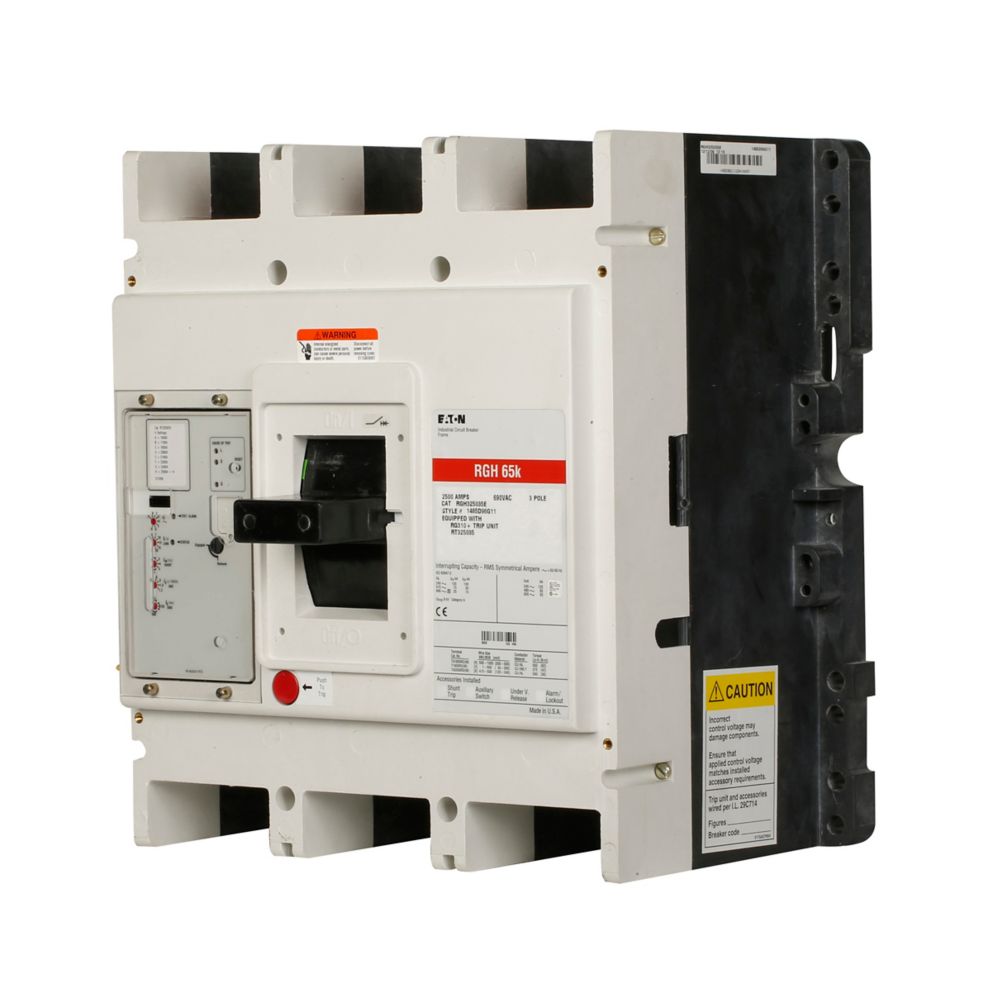

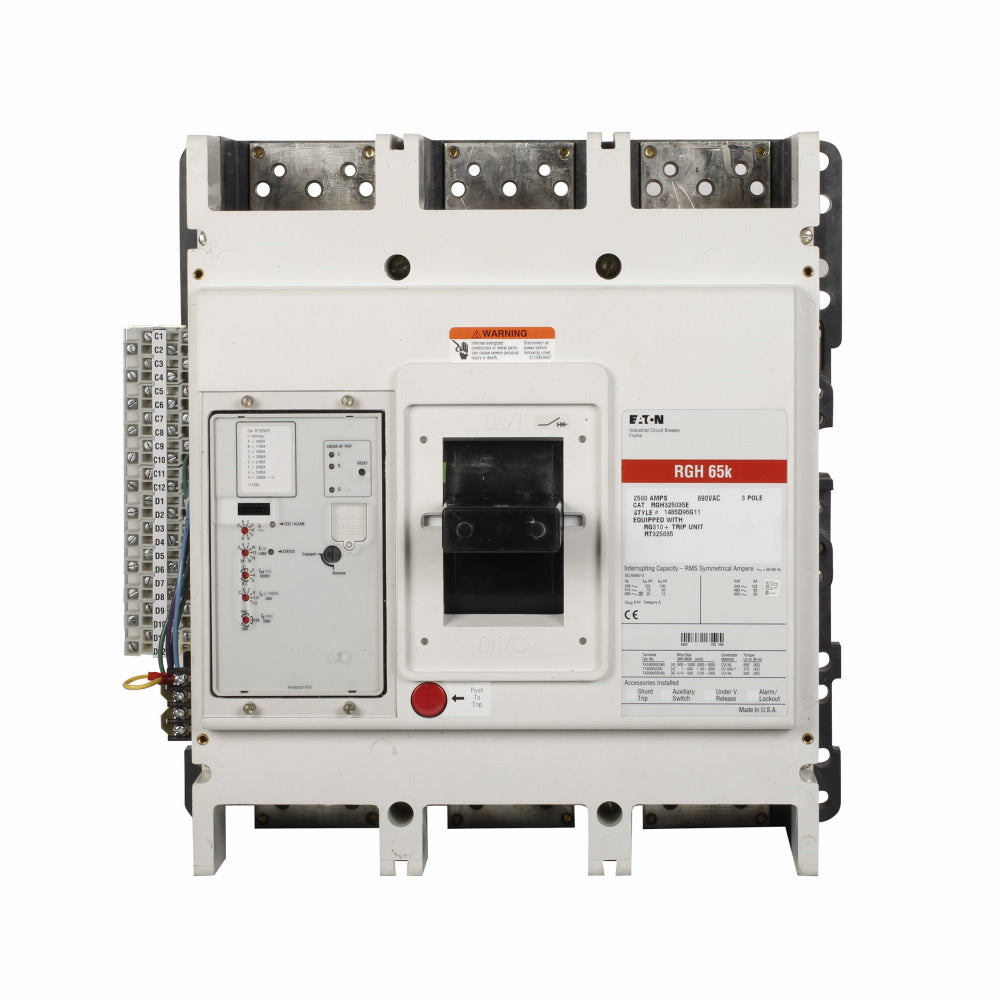

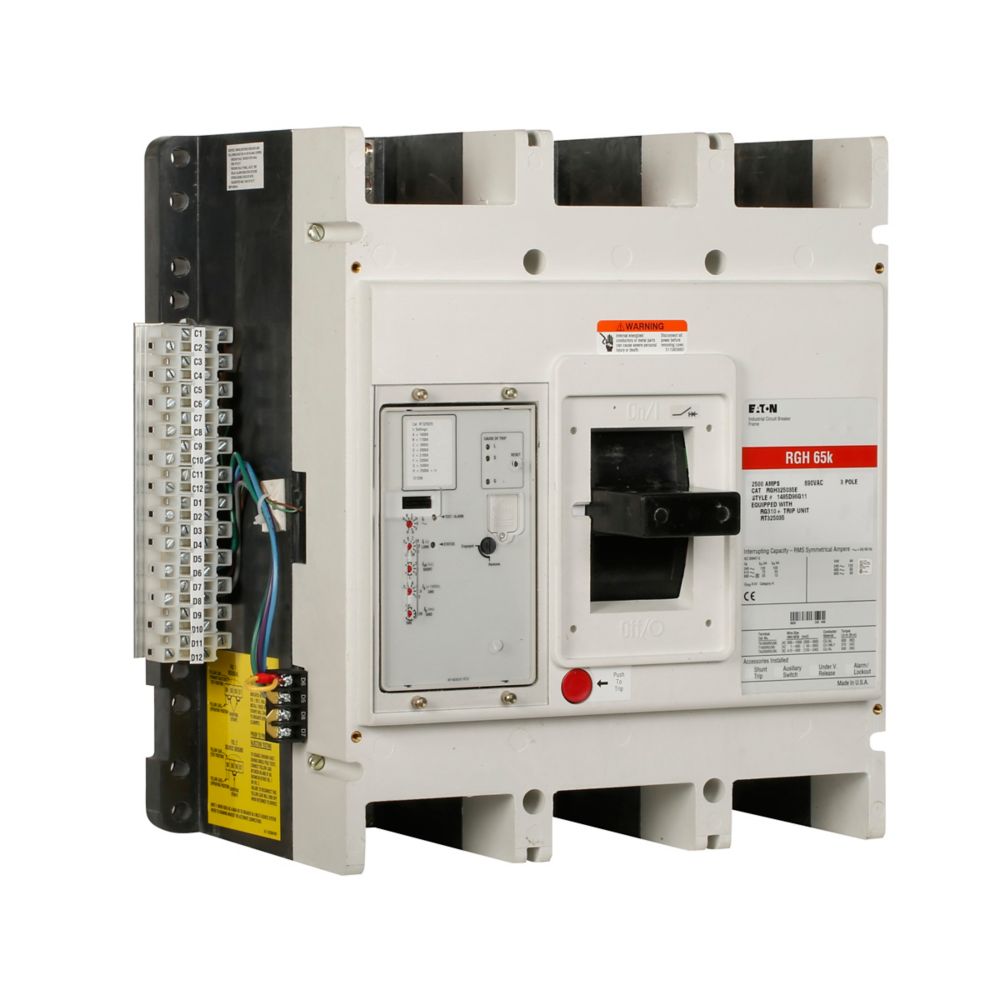

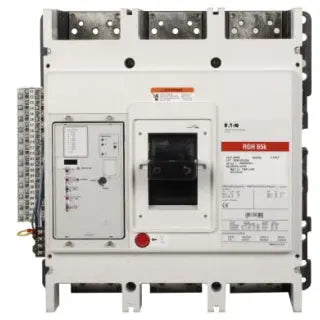

RGH320035E - Cutler Hammer 2000A 600VAC 3-Pole RG Frame Electronic LSG Circuit Breaker

RGH320035E

RGH320035E is a Cutler Hammer 3-pole electronic molded case circuit breaker with a 2000 Amp rating and 600VAC voltage capacity.This RG-frame Series G breaker features an electronic LSG trip unit providing long time, short time, and ground fault protection. It has a bolt-on mounting type with line and load side lug connections. The breaker offers a high interrupt rating of 65kAIC at 480VAC and 125kAIC at 240VAC, suitable for demanding industrial applications. UL and CSA certifications ensure compliance with safety standards.

Key Specifications
• Amperage: 2000 A
• Voltage: 600 VAC
• Poles: 3
• Frame Type: RG
• Series: G
• Trip Unit: Electronic LSG (Long time, Short time, Ground fault)
• Interrupt Rating: 65kAIC at 480VAC, 125kAIC at 240VAC
• Mounting Type: Bolt-On
• Connection Type: Line and Load Side Lug
• Certifications: UL Listed, CSA
• Phase: 3
• Temperature Rating: 40°C

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: RGH320035E
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series G
• Type : RGH
• Voltage : 600
• Amperage : 2000
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : LSG - Long Time, Short Time, Ground Fault
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Solid State

Product Data

• UPC : 786685574714
• GTIN : 00786685574714
• Country of Origin : United States
• Dimensions : 9.75 in x 15.5 in x 15.5 in (Length/Depth x Height x Width)
• Weight : 102
• Certification : UL Listed
