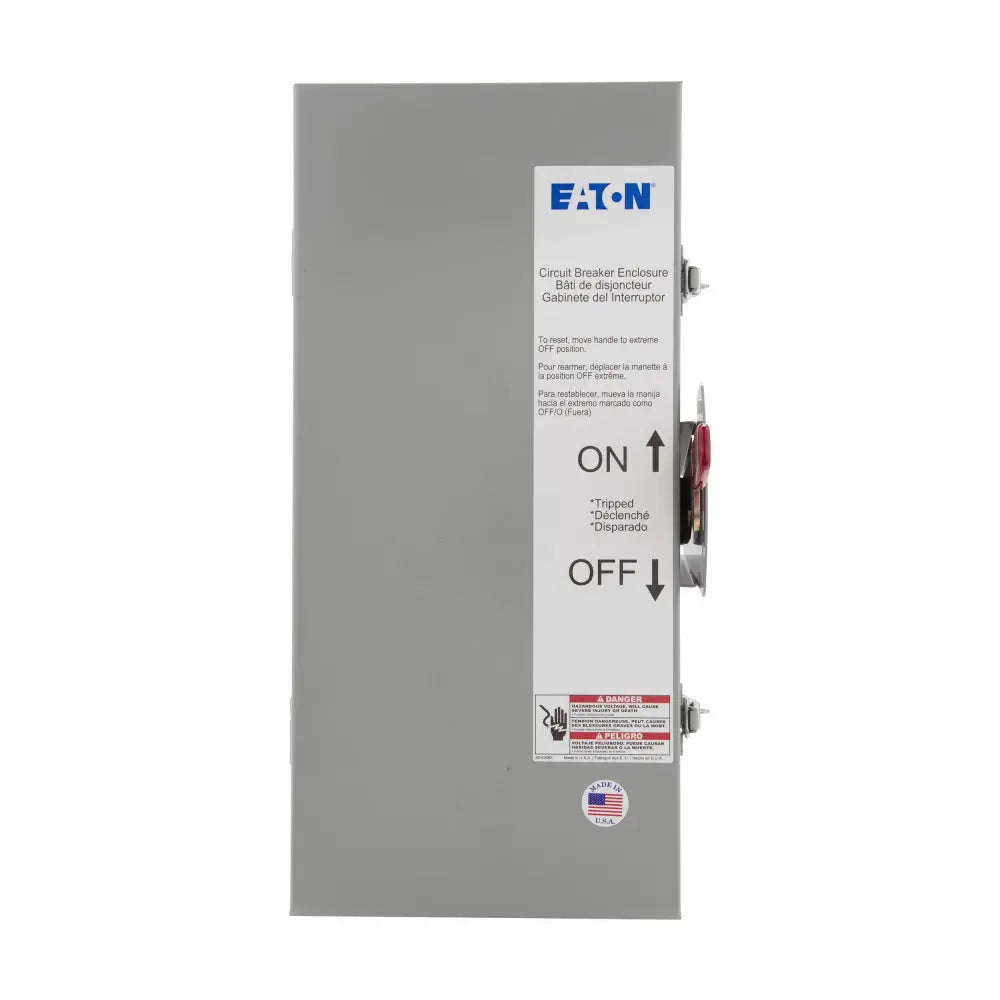

RGDN100 - Cutler Hammer Series C Circuit Breaker Enclosure 15-100A NEMA 3R

RGDN100

RGDN100 is a Cutler Hammer Series C circuit breaker enclosure designed for surface mounting applications with NEMA 3R rating and support for multiple frame types.

This circuit breaker enclosure accommodates amperage ratings from 15A to 100A and is compatible with GHC, GD (two- and three-pole configurations), and GHCGFEP (single-pole only) frames. The enclosure features a robust stainless steel construction and is rated for multiple NEMA classifications including NEMA 3R, 4, 4X, 5, 12, and 12K, making it suitable for various indoor and outdoor environments. The unit measures 19-29/32 inches in length, 8-27/32 inches in width, and 9-5/16 inches in depth, with knockout provisions for flexible installation.

• Part Number: RGDN100
• Manufacturer: Cutler Hammer (Eaton)
• Series: C Series
• Amperage Rating: 15-100A
• Mounting Type: Surface
• NEMA Rating: 3R, 4, 4X, 5, 12, 12K
• Compatible Frames: GHC, GD, GHCGFEP
• Material: Stainless Steel
• Length: 19-29/32 inches
• Width: 8-27/32 inches
• Depth: 9-5/16 inches
• Features: Knockout provisions for flexible installation

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: RGDN100
• Manufacturer : Cutler Hammer
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Parts And Accessories
• Family : Series G
• Type : RGDN
• Voltage : 600
• Amperage : 100
• Nema Rating : 3R

Product Data

• UPC : 782114221037
• GTIN : 00782114221037
• Country of Origin : United States
• Dimensions : 20.25 in x 9 in x 10 in (Length/Depth x Height x Width)
• Weight : 13.74
• Certification : UL Listed,CSA Certified
