Product Info
- Manufacturer:ExTe Connectivity Toolsch
- Sub-Category:Low Voltage Fuse
Description

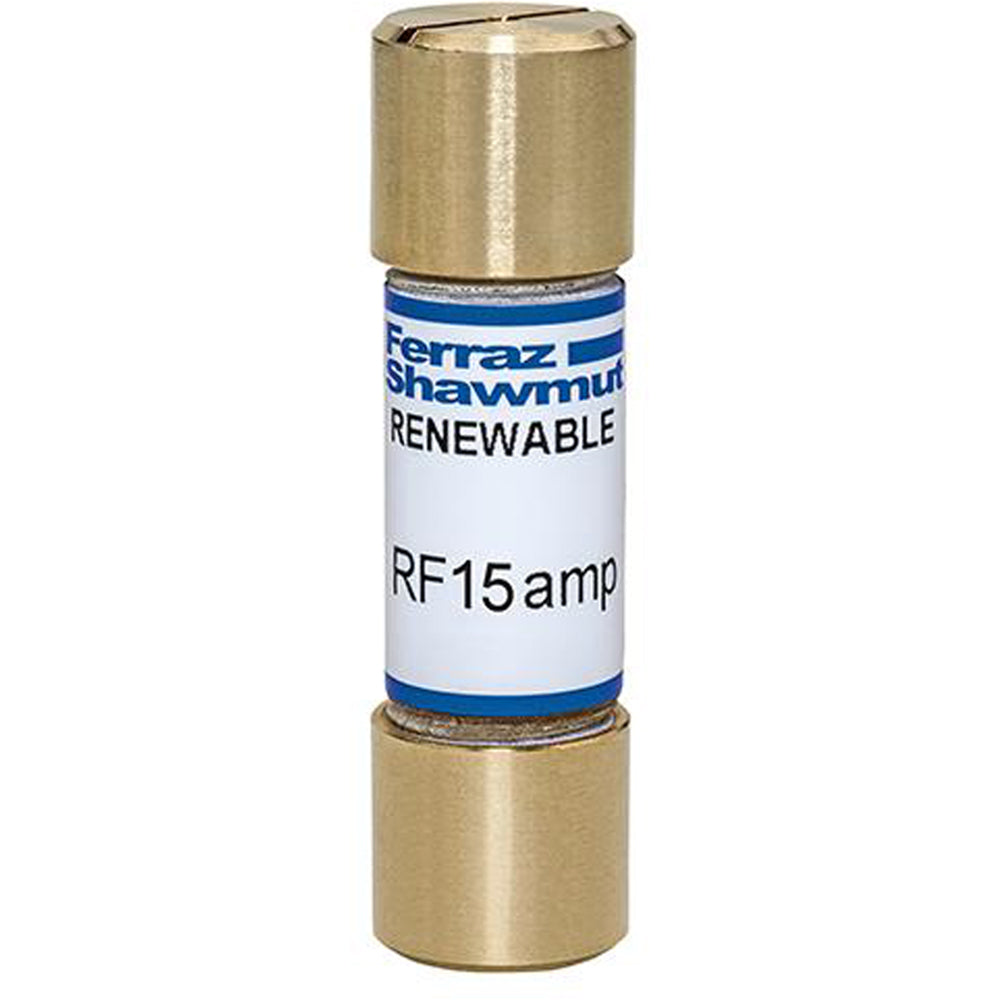

RF15
RF15 is a Class H fast-acting power fuse designed for reliable circuit protection in industrial and commercial applications. This fuse features a 250VAC rating and 15A current capacity, making it suitable for general purpose use where short circuit currents do not exceed 10,000 amperes. The RF15 is constructed with a brass ferrule terminal and FWGE insulating material for durability and safe operation. The RF15 fuse is clip-mounted for easy installation and replacement. It is ideal for use in fuse blocks and panels requiring fast-acting protection. The fuse is renewable, utilizing matched RL and RLS die-cut zinc links for consistent performance across its rated range.
- Part Number: RF15
- Manufacturer: Mersen / Ferraz Shawmut
- Rated Voltage AC: 250VAC
- Rated Current: 15A
- Fuse Class: H
- Speed/Characteristic: Fast-Acting
- Mounting Type: Clip
- Terminal Type: Ferrule
- Connection Material: Brass
- Body Material: FWGE
- Interrupt Rating: 10,000A
- Height: 15mm
- Width: 15mm
- Depth (Length): 51mm
Specifications
- Part Number: RF15
- Brand : ExTe Connectivity Toolsch
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Voltage : 250
- AIC rating : 10kA@250VAC
- Diameter : 0.56
- Class Rating : H
- Barrels : 1
Product Data
- UPC : 06893872007
- GTIN : 00068938720070
- Weight : 0.05
