Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description

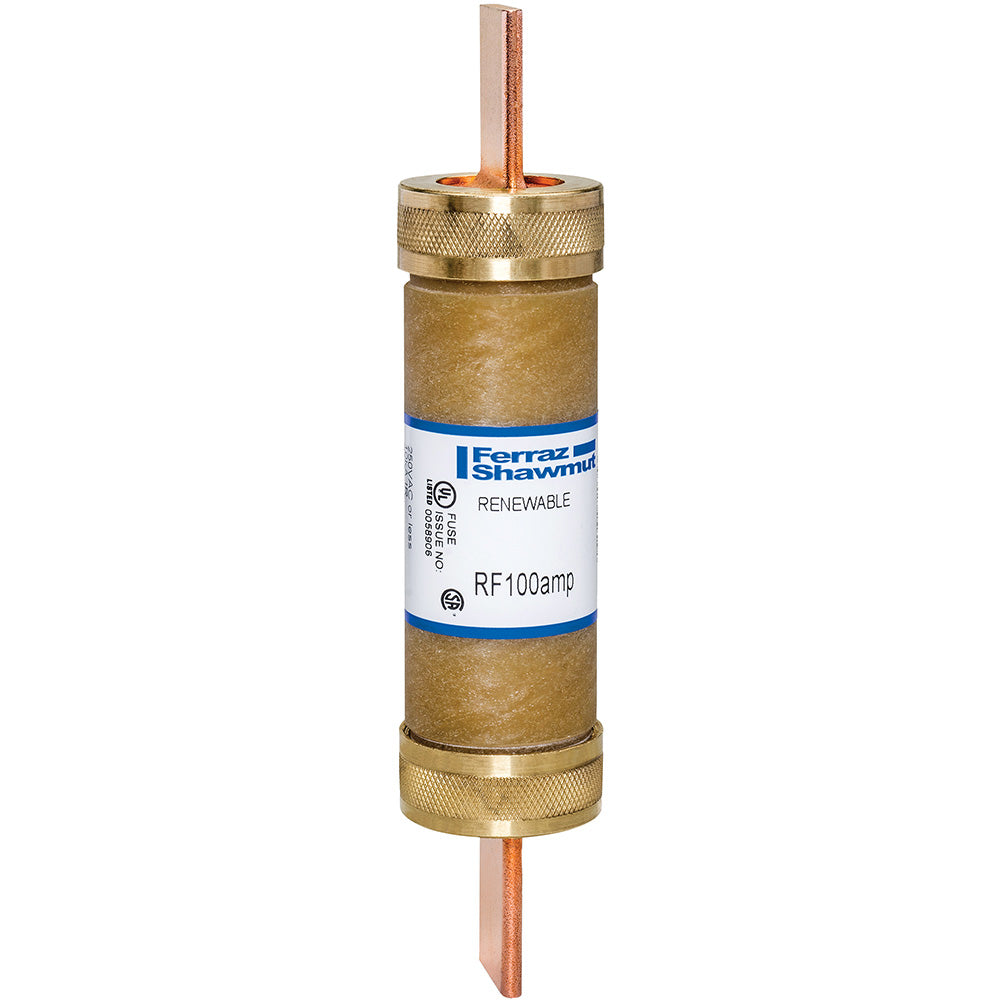

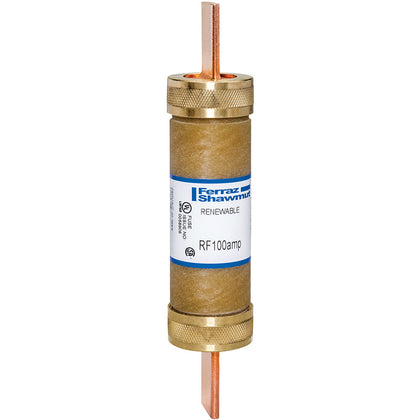

RF100
RF100 is a Class H fast acting renewable fuse designed for general purpose circuit protection in low voltage applications. This Mersen RF100 fuse features a cylindrical body and is engineered for reliable performance in demanding electrical environments. The RF100 fuse is rated for 100 amps and 250 volts AC, with a 10 kA interrupt rating. It is a non-current limiting, fast acting fuse suitable for use in a variety of industrial and commercial power distribution systems. The fuse is constructed with a brass contact material and utilizes a clip mounting type for secure installation.
- Part Number: RF100
- Manufacturer: Mersen
- Amperage: 100 A
- Voltage: 250 VAC
- Fuse Class: Class H
- Interrupt Rating: 10 kAIC
- Mounting Type: Clip
- Response Time: Fast Acting
- Body Type: Cylindrical
- Connection Type: Blade
- Physical Size: 1 1/16" x 5 7/8"
- Approvals: UL 248-7, CSA C22.2
Specifications
- Part Number: RF100
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : RF Series
- Type : RF
- Voltage : 250
- Amperage : 100
- AIC rating : 10kA@250VAC
- Diameter : 1.06
- Class Rating : H
- Barrels : 1
Product Data
- UPC : 68938720353
- GTIN : 00068938720353
- Country of Origin : Mexico
- Dimensions : x 5.88 in x
- Weight : 1.65
- Certification : UL Certified; CSA Certified
