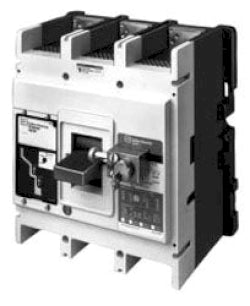

RD320T36W - Eaton Series C Electronic Molded Case Circuit Breaker 2000A 600V 3-Pole

RD320T36W

RD320T36W is an Eaton Series C electronic molded case circuit breaker designed for industrial power distribution applications requiring high-capacity protection and advanced trip functionality. This RD-frame, three-pole breaker delivers 2000 amperes at 600 volts AC with electronic LSIG (Long Short Instantaneous Ground) trip protection via the Digitrip 310 RMS trip unit, providing precise overcurrent and ground fault detection. The complete breaker assembly features solid-state electronics for reliable performance in demanding electrical systems and is UL Listed for safety compliance. Bolt-on connection type and without terminals configuration allow flexible integration into switchgear and panelboards. Interrupt rating of 65 kAIC at 480 Vac and 50 kAIC at 600 Vac ensures safe fault clearing capacity across standard industrial voltage levels.

• Amperage Rating: 2000 A
• Voltage Rating: 600 Vac
• Number of Poles: Three-pole
• Frame Type: RD (R-frame)
• Trip Unit: Digitrip 310 RMS Electronic
• Trip Type: LSIG (Long Short Instantaneous Ground)
• Interrupt Rating: 65 kAIC at 480 Vac, 50 kAIC at 600 Vac
• Connection Type: Bolt-On
• Terminals: Without terminals
• Certifications: UL Listed
• Product Weight: 125 lb
• Warranty: One year from installation or eighteen months from shipment, whichever occurs first

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: RD320T36W
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : RD
• Voltage : 600
• Amperage : 2000
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : LSIG - Long Time, Short Time, Instantaneous and Ground Fault Trip
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Solid State

Product Data

• UPC : 786679547168
• GTIN : 00786679547168
• Country of Origin : United States
• Dimensions : 9.75 in x 15.5 in x 15.5 in (Length/Depth x Height x Width)
• Weight : 125
• Certification : UL Listed
