Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
QRH23B125L

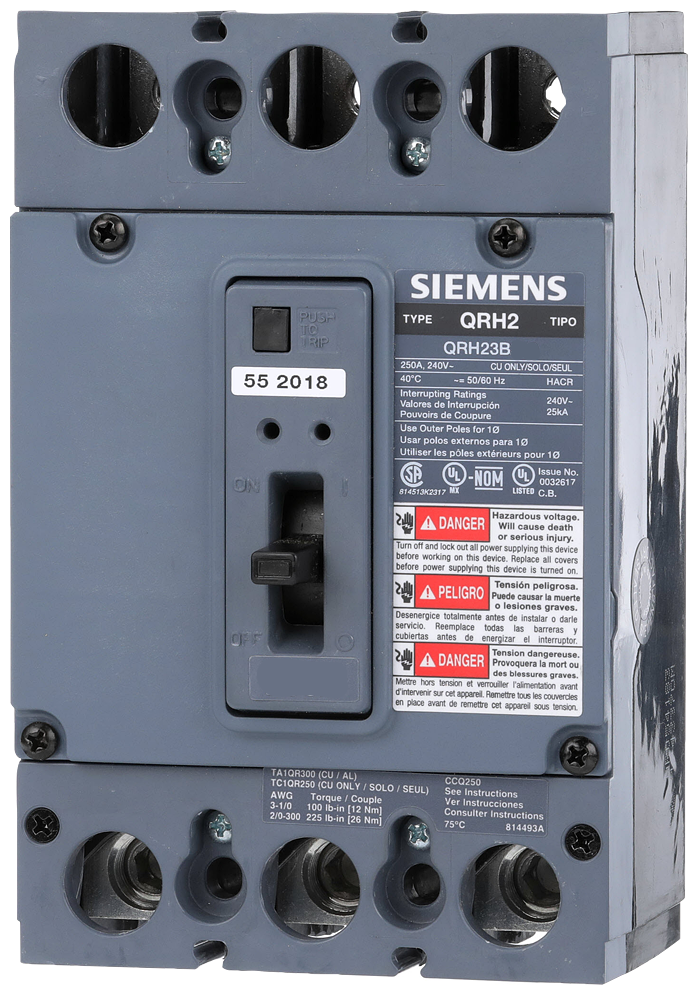

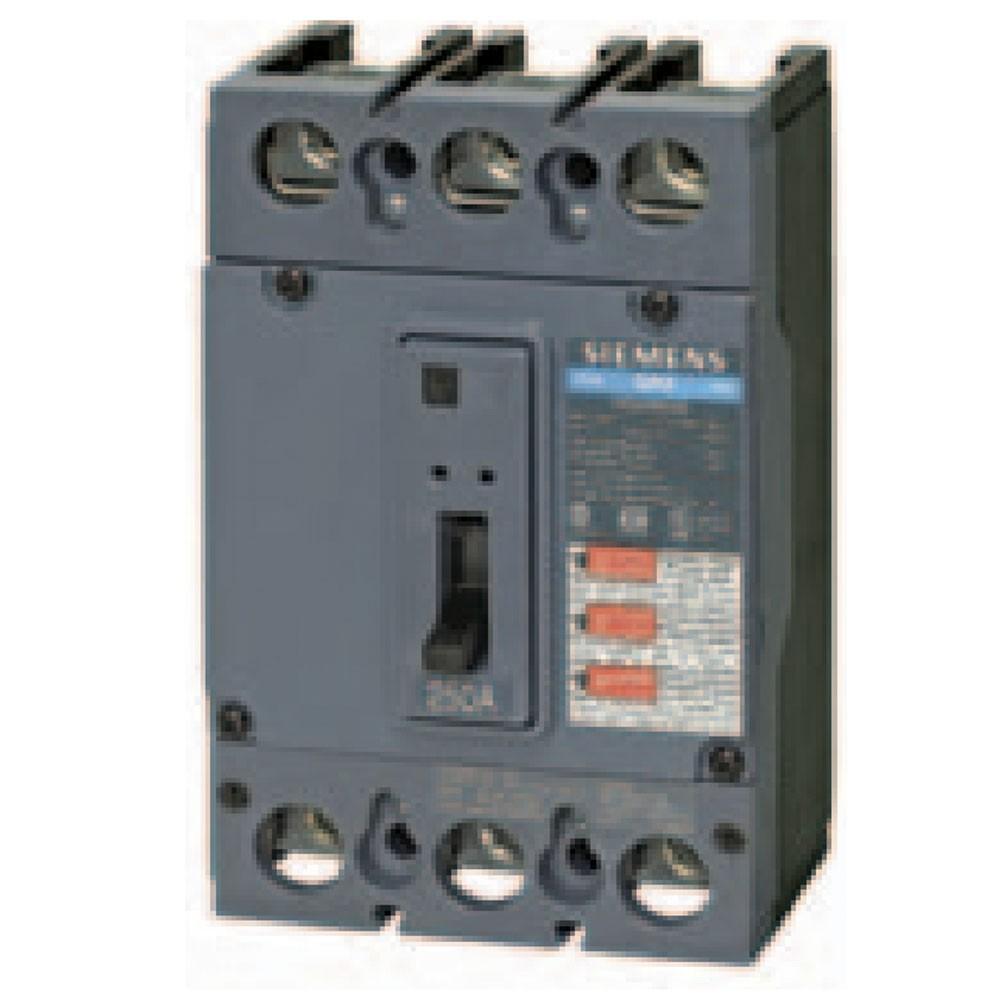

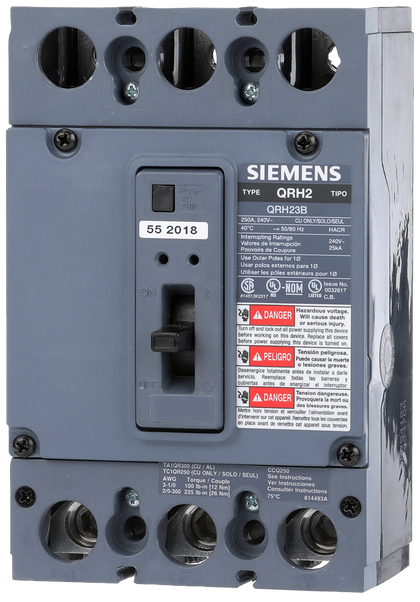

QRH23B125L is a Siemens 3 pole molded case circuit breaker rated for 125 amps and 240 volts with a 25kA interrupting capacity.This Siemens QR Series breaker features a bolt-on mounting type and thermal magnetic trip unit designed for reliable protection in panelboards, load centers, and powerpanels. It supports 3-phase applications with a high interrupt rating of 25kA at 240V, ensuring safety and compliance with UL, CSA, and NOM certifications. The breaker includes feed-thru connections and a compact design suitable for North American electrical systems.
- Amperage: 125A
- Voltage: 240V AC
- Poles: 3
- Mounting Type: Bolt-On
- Interrupt Rating: 25kA @ 240V
- Series/Frame: QR Series
- Trip Unit: Thermal Magnetic
- Certifications: UL489, CSA, NOM
- Connection Type: Feed-Thru
- Phase: 3
Specifications
- Part Number: QRH23B125L
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : QR Series
- Type : QRH2
- Voltage : 240
- Amperage : 125
- Phase : 3
- Poles : 3
- AIC rating : 25kA@240V
- Connection : Feed-Thru
- Functions : Long Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 804766136849
- GTIN : 00804766136849
- Country of Origin : Mexico
- Dimensions : 7.087 x 4.331 x 3.937 inch
- Weight : 4.519
