QRH23B100L - Siemens 100A 240V 3 Pole Molded Case Circuit Breaker QR Series 25kAIC NEMA 1/3R

QRH23B100L

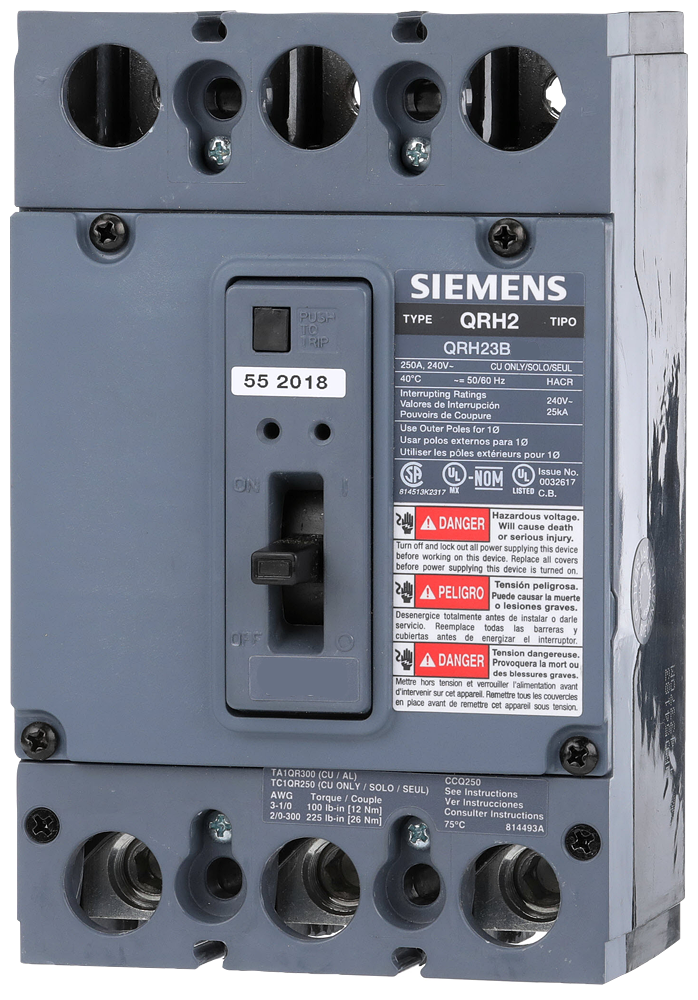

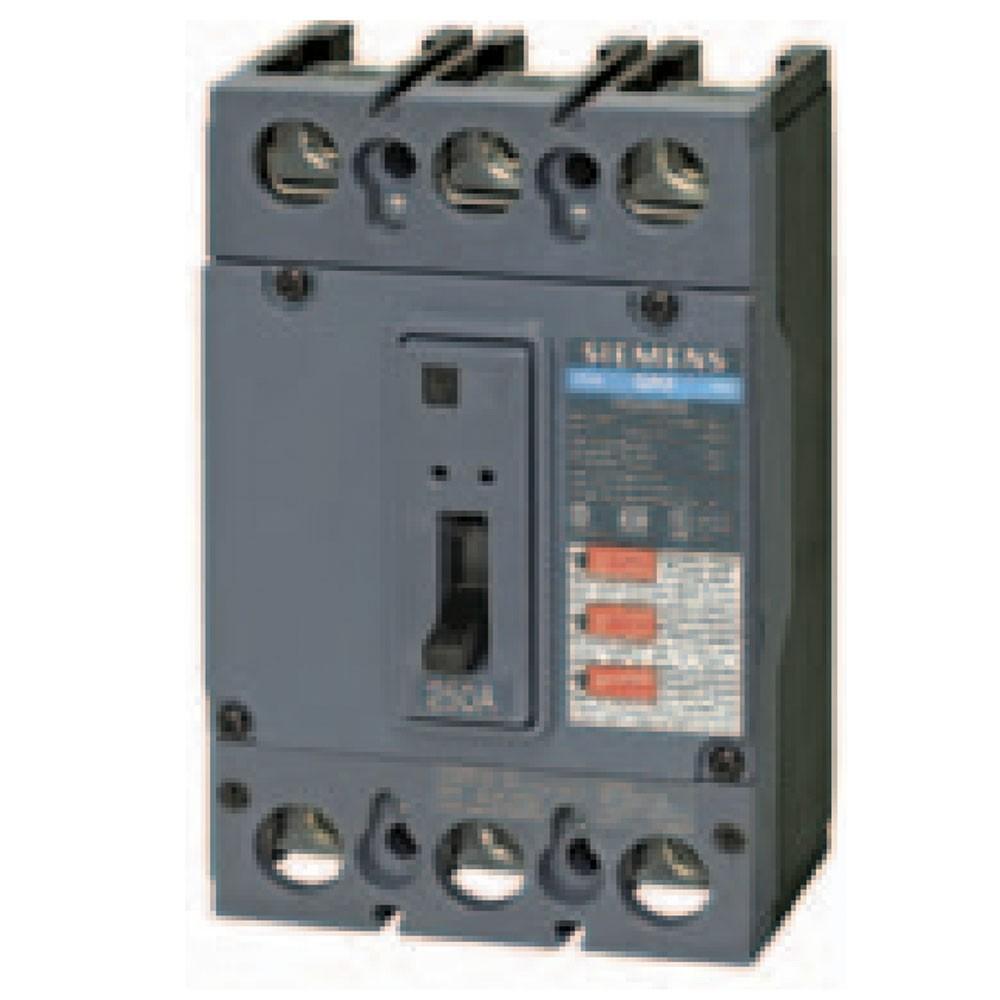

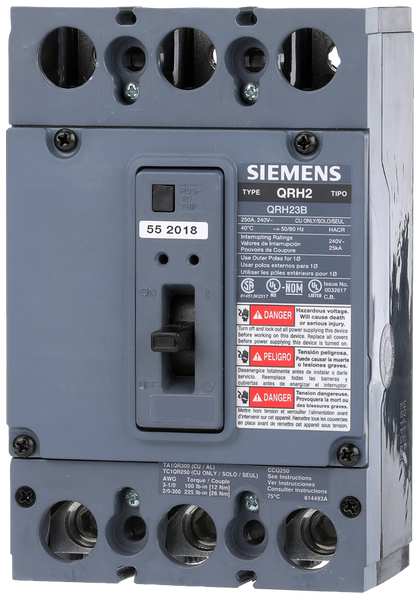

QRH23B100L is a Siemens 100A, 240V, 3 pole molded case circuit breaker from the QR Series, designed for reliable protection in commercial and industrial applications. This breaker features a bolt-on mounting style, high interrupting capacity, and is suitable for use in load centers, panelboards, and switchboards. Engineered for durability and safety, the QRH23B100L offers a 25kA interrupt rating at 240V AC, a non-interchangeable LI trip unit for long-time and instantaneous protection, and is certified to UL, CSA, and NOM standards. Its compact design and field-installable accessories provide flexibility for a wide range of installations.

• Part Number: QRH23B100L
• Manufacturer: Siemens
• Amperage: 100A
• Voltage: 240V AC
• Poles: 3
• Mounting Type: Bolt-On
• Interrupt Rating: 25kAIC @ 240V
• Series/Frame: QR Series
• Frame Type: QRH2
• Series Rating: QRH
• Frame Size: 250A
• Enclosure: NEMA 1/3R
• Trip Unit: Non-Interchangeable LI (Long-Time/Instantaneous)
• Certifications: UL, CSA, NOM
• Standards: UL489, CSA-C22.2, NOM-003
• Operating Temp: 40°C ambient
• Accessories: Field Installable Internal/External
• Applications: Load Centers, Panelboards, Switchboards, Meter Centers, OEM Panels

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QRH23B100L
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QR Series
• Type : QRH2
• Voltage : 240
• Amperage : 100
• Phase : 3
• Poles : 3
• AIC rating : 25kA@240V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Protection : Thermal Magnetic

Product Data

• UPC : 804766136832
• GTIN : 00804766136832
• Country of Origin : Mexico
• Dimensions : 7.087 x 4.331 x 3.937 inch
• Weight : 4.519
