Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
QRH22B225L

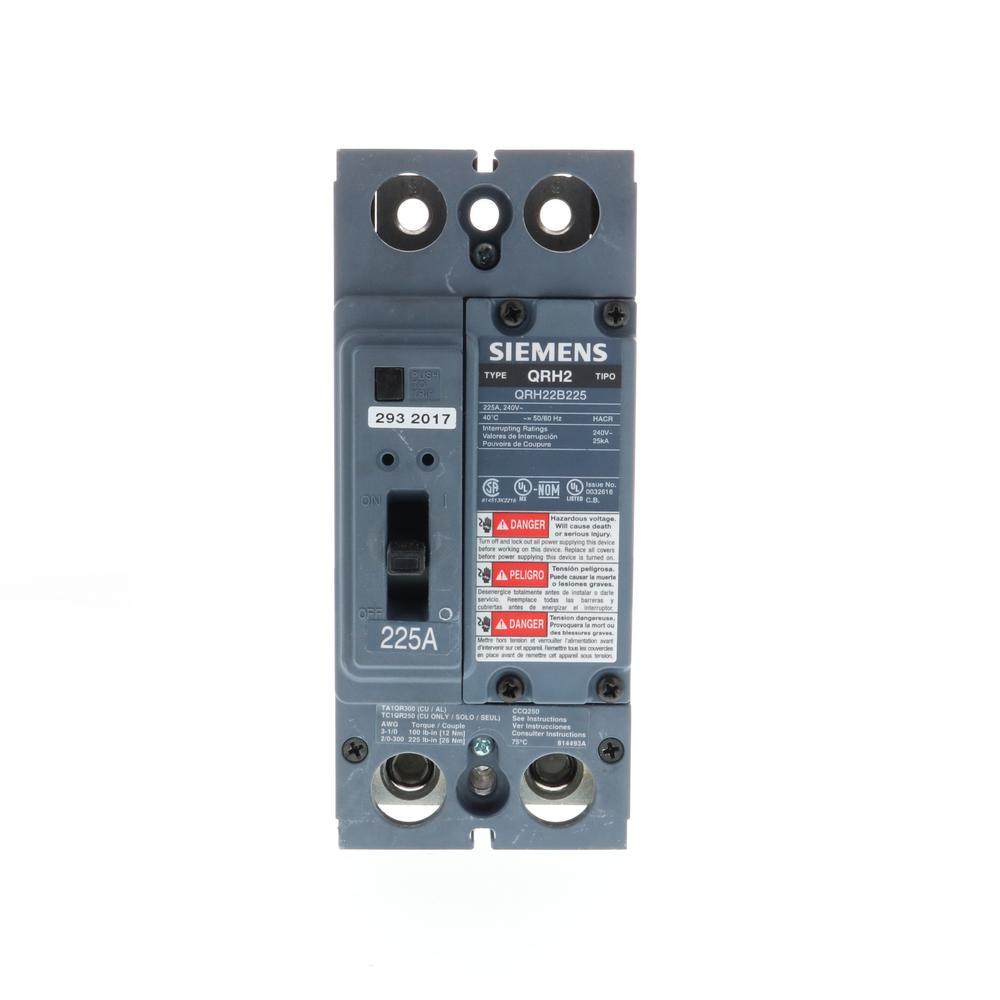

QRH22B225L is a Siemens 2-pole molded case circuit breaker rated for 225 amps and 240 volts AC with a bolt-on mounting type.This Siemens QRH22B225L circuit breaker features a 25kA interrupting rating at 240V, suitable for general purpose circuit protection. It is HACR rated and UL listed for reverse feed applications, with aluminum load side lugs installed. The breaker belongs to the QRH2 series/frame and is designed for single-phase systems.
- Key Specifications
- Amperage: 225A
- Voltage: 240V AC
- Number of Poles: 2
- Mounting Type: Bolt-On
- Interrupt Rating: 25kA at 240V
- Series/Frame: QRH2
- Trip Unit: Thermal Magnetic
- Certifications: UL Listed, HACR Rated
- Phase: Single Phase
- Load Side Lugs: Aluminum
Specifications
- Part Number: QRH22B225L
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : QR Series
- Type : QRH2
- Voltage : 240
- Amperage : 225
- Phase : 1
- Poles : 2
- AIC rating : 25kA@240V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 804766136306
- GTIN : 00804766136306
- Country of Origin : Mexico
- Dimensions : 7.087 x 4.331 x 3.937 inch
- Weight : 3.197
