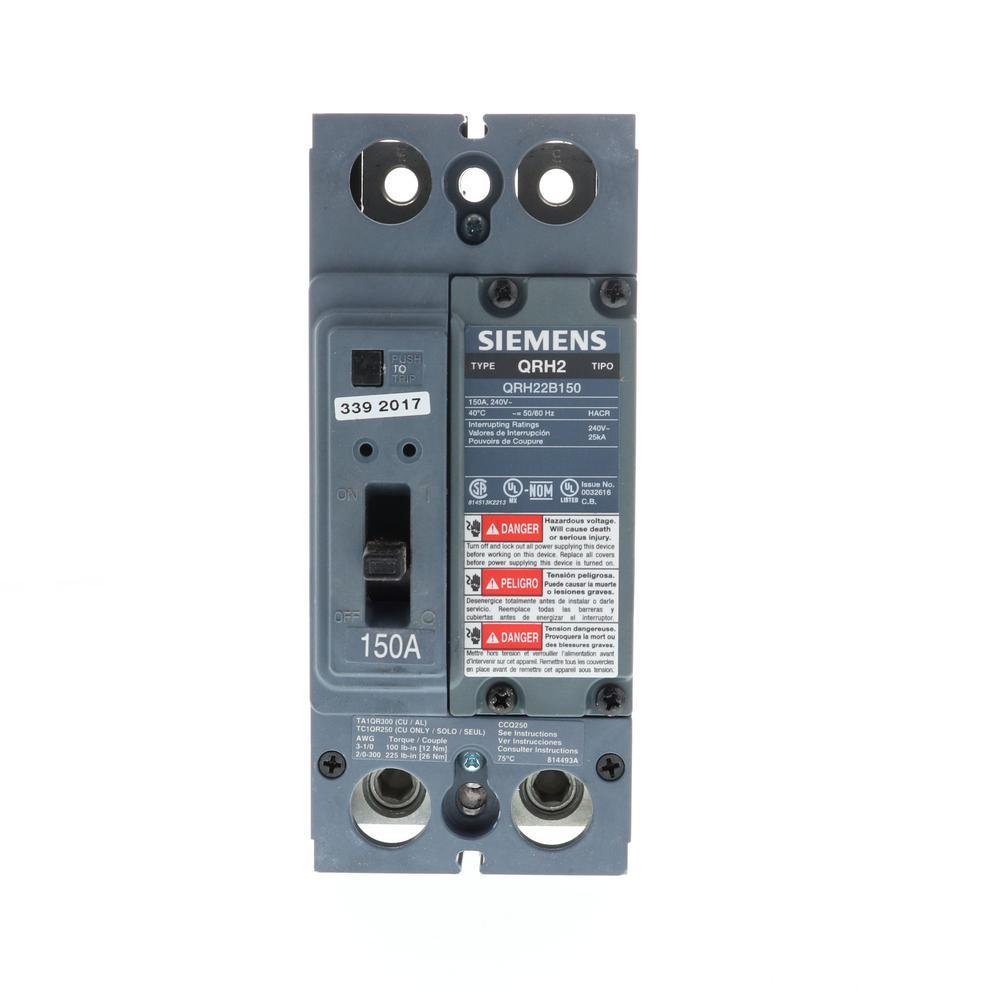

QRH22B150 - Siemens 150A 240V 2-Pole Molded Case Circuit Breaker, Bolt-On, 25kA Interrupt Rating

QRH22B150

QRH22B150 is a Siemens 2-pole molded case circuit breaker rated for 150 amps and 240 volts with bolt-on mounting.This Siemens QRH22B150 circuit breaker features a 2-pole design with a 150 ampere rating and 240V voltage rating. It has a bolt-on mounting type and a 25kA interrupting rating at 240 volts. The breaker is HACR rated and UL listed for reverse feed applications. It uses a thermal magnetic trip unit and complies with UL489, CSA, and NOM certifications. The breaker includes a push-to-trip button and supports field-installable accessories for enhanced flexibility.

Key Specifications
• Amperage: 150A
• Voltage: 240V AC
• Poles: 2
• Mounting Type: Bolt-On
• Interrupt Rating: 25kA at 240V
• Series/Frame: QRH2
• Trip Unit: Thermal Magnetic
• Certifications: UL489, CSA, NOM
• HACR Rated
• UL Listed for Reverse Feed
• Push-to-Trip Button
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: QRH22B150
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QR Series
• Type : QRH2
• Voltage : 240
• Amperage : 150
• Phase : 1
• Poles : 2
• AIC rating : 25kA@240V
• Connection : Bolt-On
• Functions : LI - Long Time and Instantaneous
• Protection : Thermal Magnetic



Product Data

• UPC : 804766136221
• GTIN : 00804766136221
• Country of Origin : Mexico
• Dimensions : 7.087 x 4.331 x 3.937 inch
• Weight : 3.197
• Certification : UL, CSA, NOM
