Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
QRH22B100

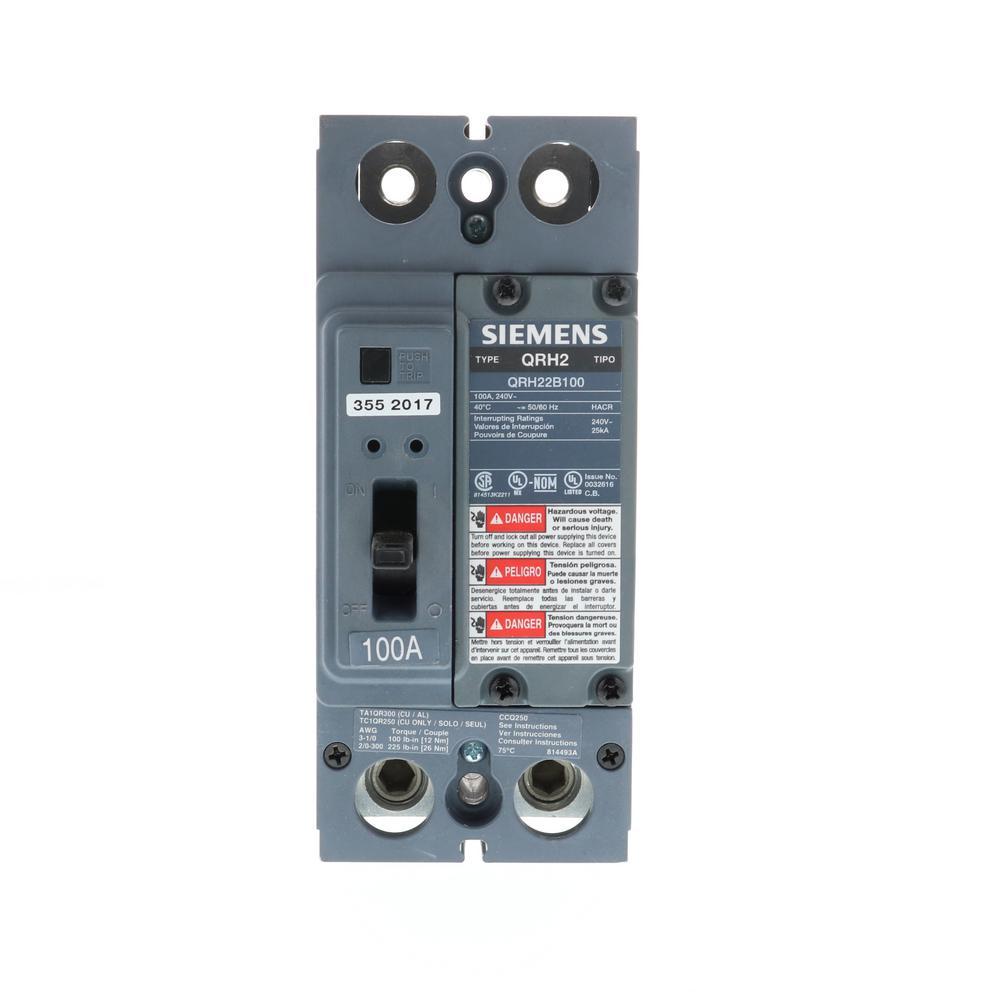

QRH22B100 is a Siemens 2-pole, 100 amp, 240 volt bolt-on circuit breaker designed for reliable circuit protection.This Siemens QRH22B100 molded case circuit breaker features a thermal magnetic trip unit and a compact QR frame. It is rated for 100 amps and 240 volts AC with a bolt-on mounting type. The breaker is UL489, CSA, and NOM certified, suitable for use in load centers, panelboards, power panels, and switchboards. It includes a push-to-trip button and supports field-installable internal and external accessories for enhanced flexibility and security.
- Key Specifications
- Amperage: 100 Amps
- Voltage: 240 Volts AC
- Poles: 2
- Mounting Type: Bolt-On
- Frame Type: QR
- Trip Unit: Thermal Magnetic
- Interrupt Rating: Up to 10kA (typical for QR frame at 240V)
- Certifications: UL489, CSA, NOM
- Push-to-Trip Button Included
- Field Installable Accessories Supported
Specifications
- Part Number: QRH22B100
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : QR Series
- Type : QRH2
- Voltage : 240
- Amperage : 100
- Phase : 1
- Poles : 2
- AIC rating : 25kA@240V
- Connection : Bolt-On
- Functions : Long Time and Instantaneous Trip
- Protection : Thermal Magnetic
Product Data
- UPC : 804766136207
- GTIN : 00804766136207
- Country of Origin : Mexico
- Dimensions : 7.087 x 4.331 x 3.937 inch
- Weight : 3.197
