2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
QPJ3200

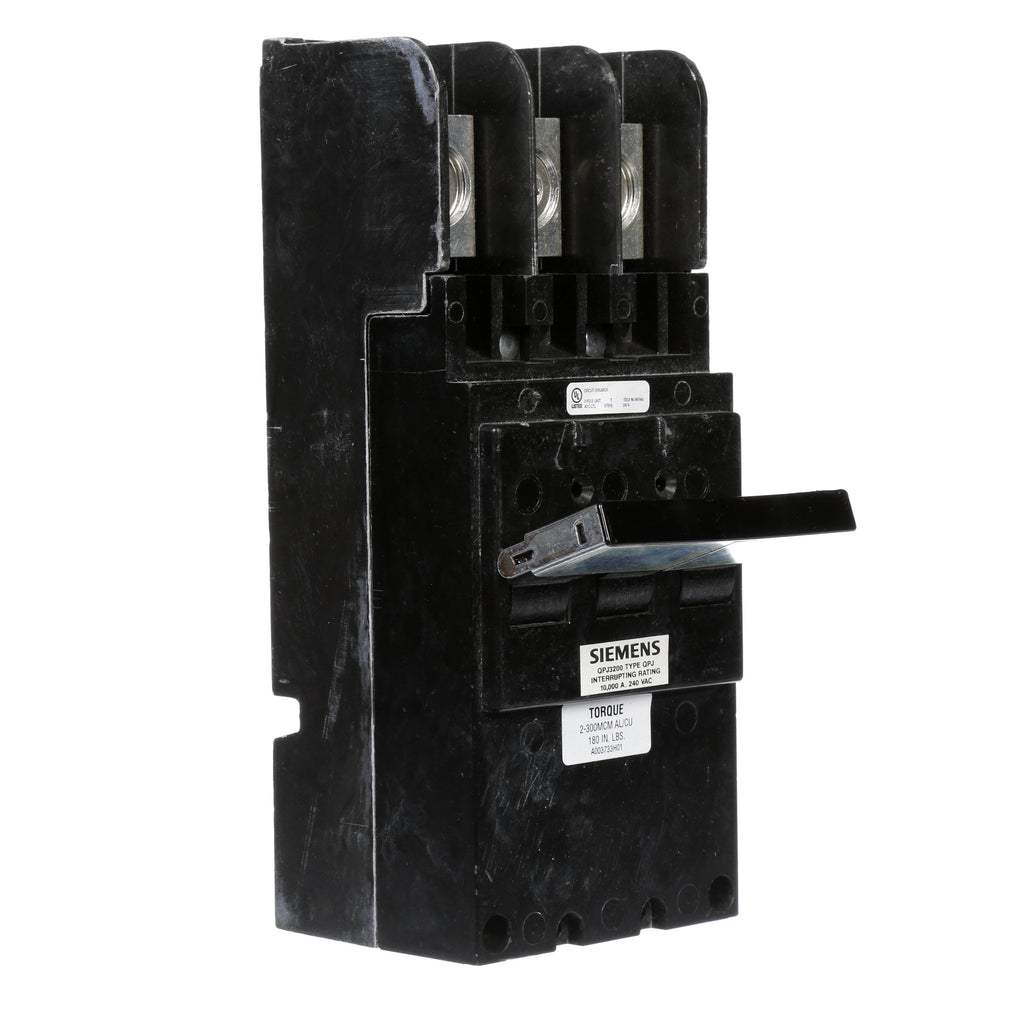

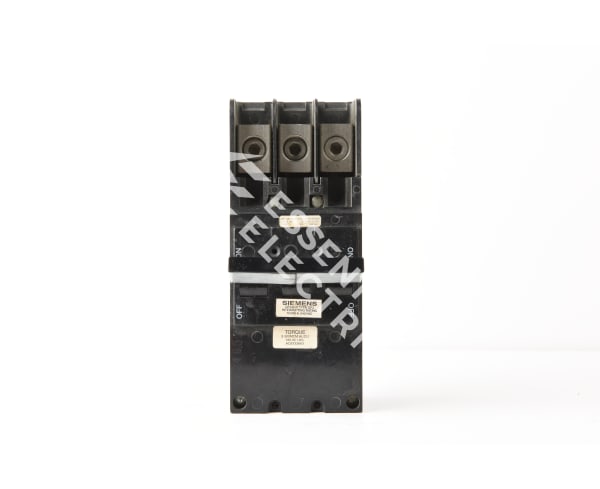

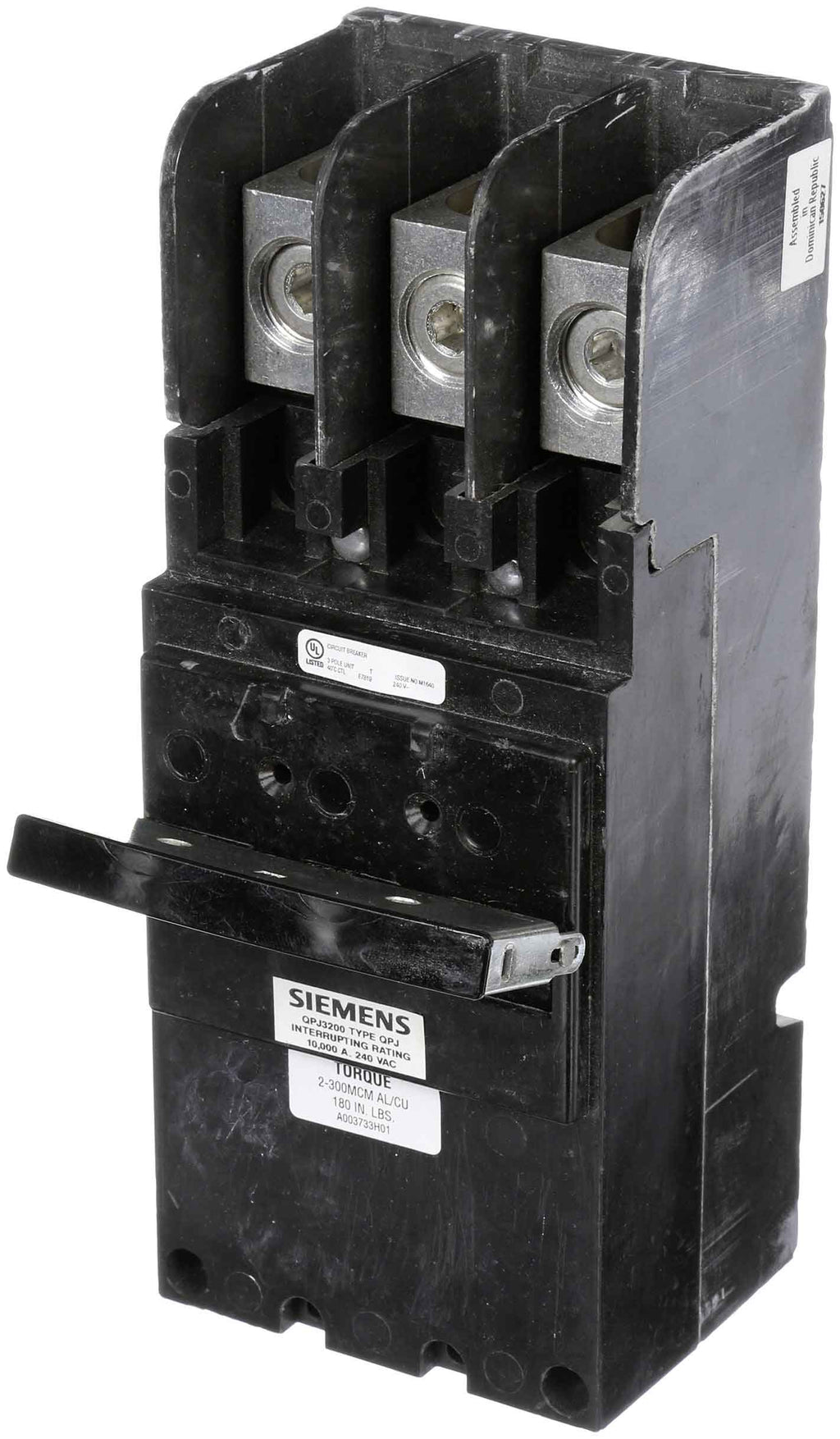

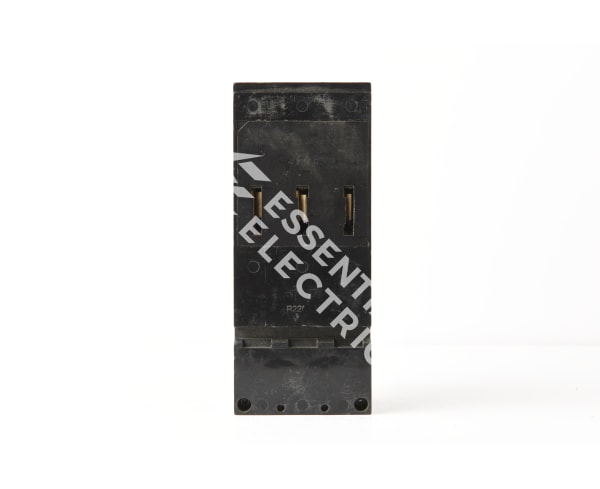

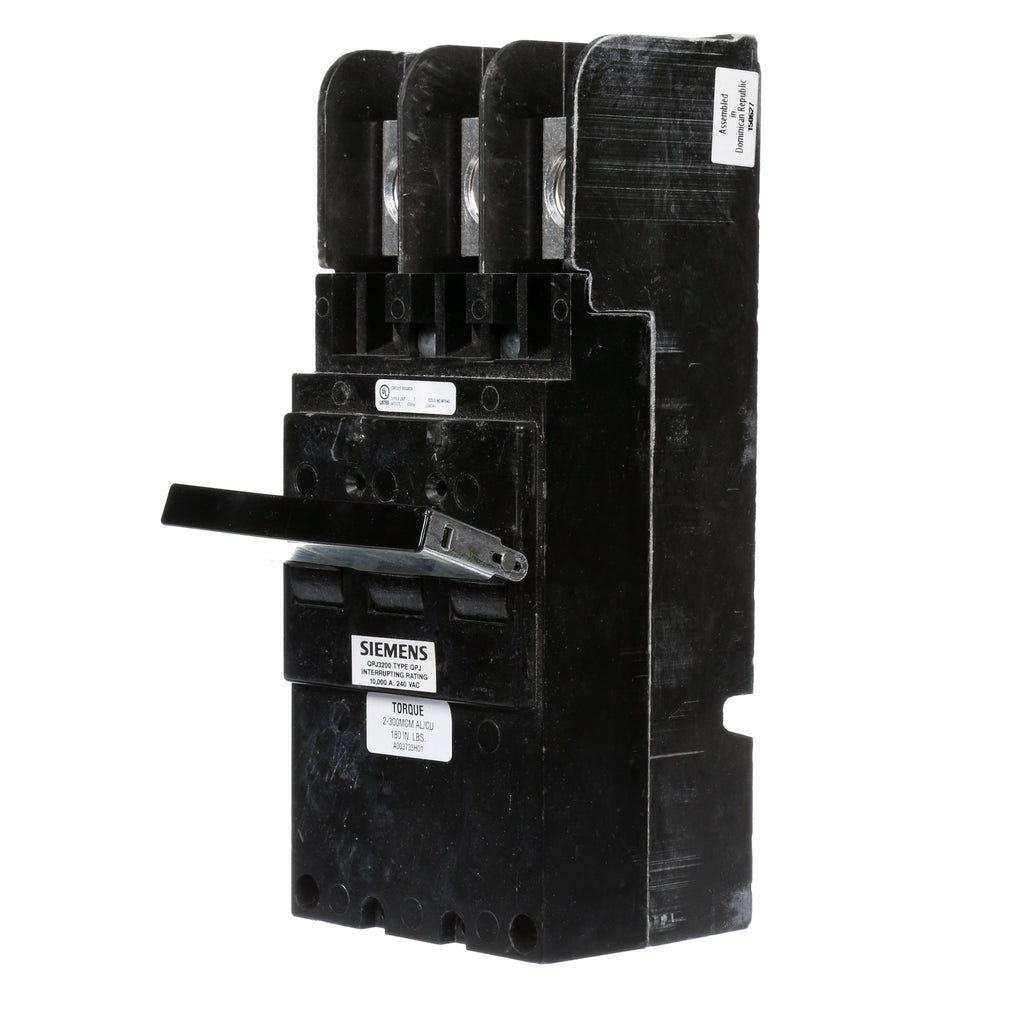

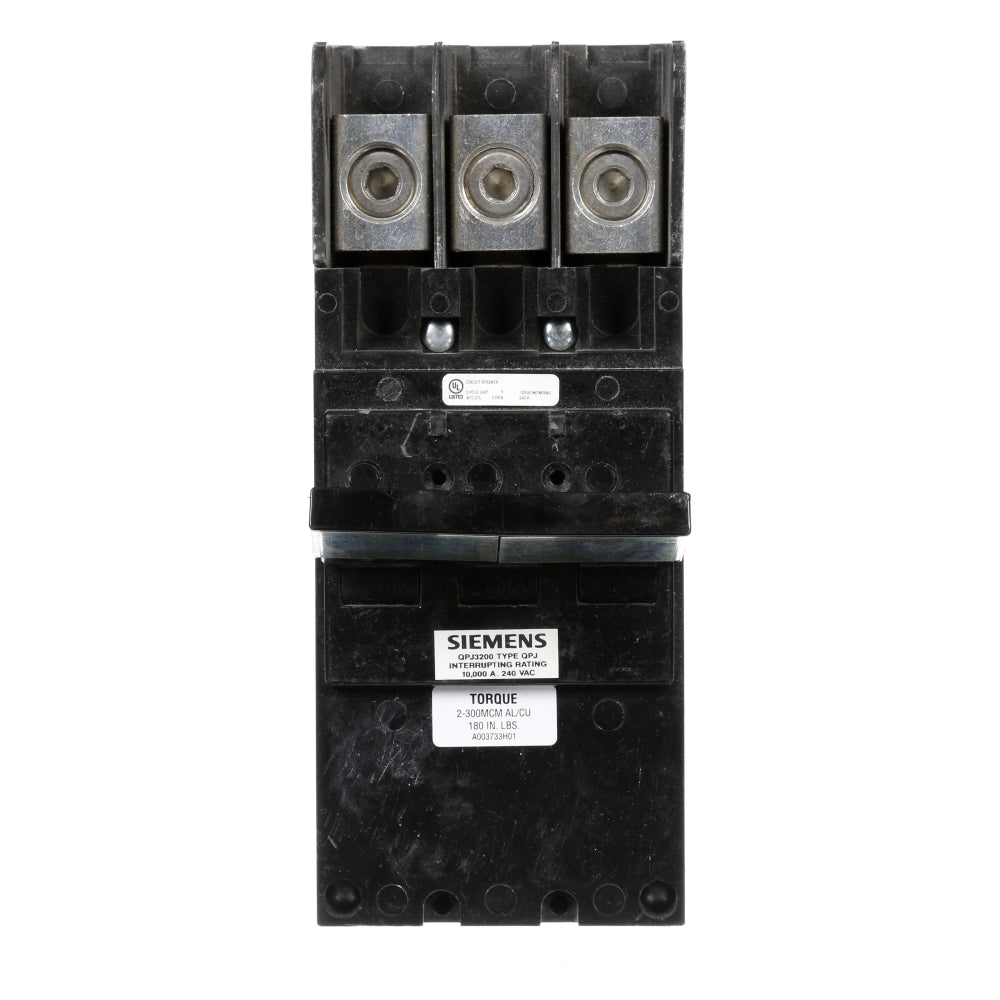

QPJ3200 is a 200 Amp, 3 Pole, 240V plug-in main circuit breaker designed for Siemens EQIII load centers. This molded case breaker features a thermal magnetic trip unit and is UL listed for commercial and residential applications.
- Part Number: QPJ3200
- Manufacturer: Siemens
- Amperage: 200 Amps
- Number of Poles: 3
- Voltage Rating: 240V AC
- Mounting Type: Plug-In
- Interrupting Rating: 10 kAIC
- Series/Frame: QPJ
- Trip Unit: Thermal Magnetic
- Standards: UL Listed, CSA Certified
- Wire Size: #2 to 300 kcmil Cu-Al
- Application: Main Breaker for EQIII Load Centers
Specifications
- Part Number: QPJ3200
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Q Series
- Type : QPJ
- Voltage : 240
- Amperage : 200
- Phase : 3
- Poles : 3
- AIC rating : 10kA@240V
- Connection : Bolt-On
- Functions : Long Time and Instantaneous Trip
- Protection : Thermal Magnetic
Product Data
- UPC : 783643264977
- GTIN : 00783643264977
- Country of Origin : Dominican Republic
- Dimensions : 7.874 x 2.756 x 3.937 inch
- Weight : 3.285
