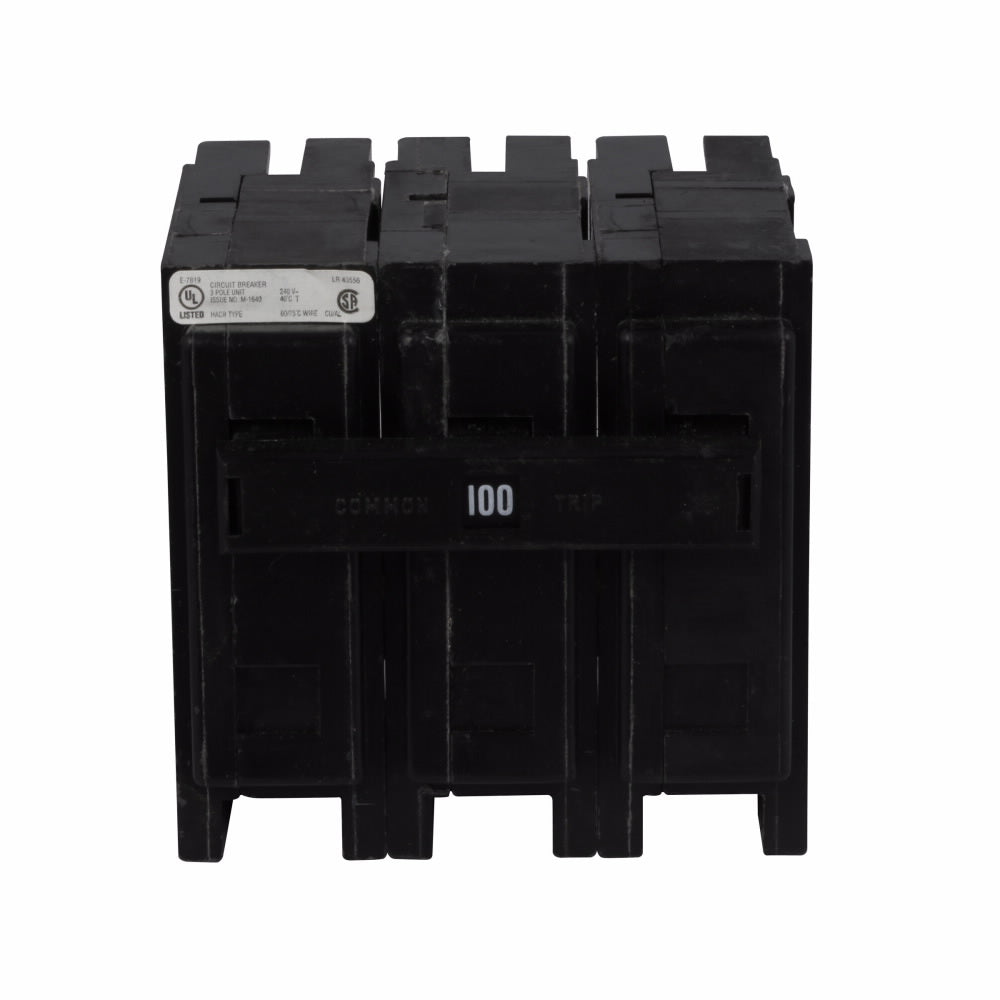

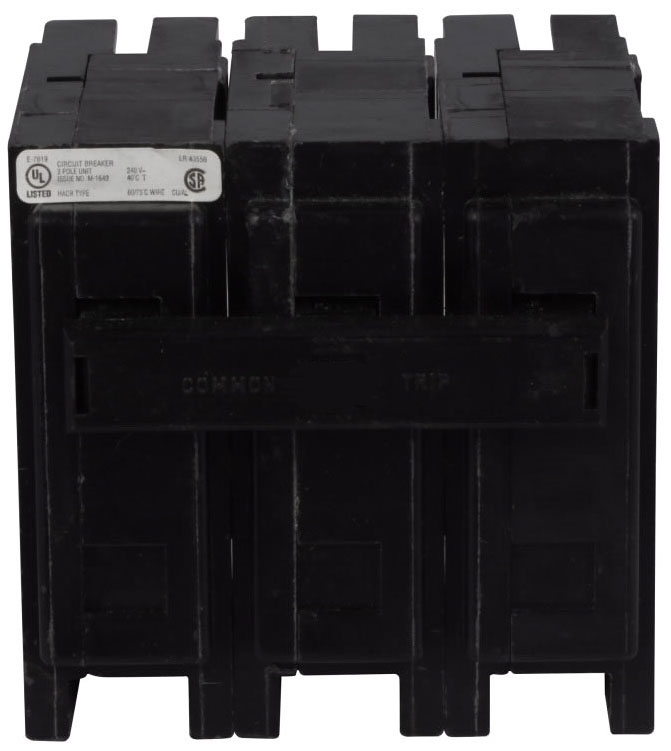

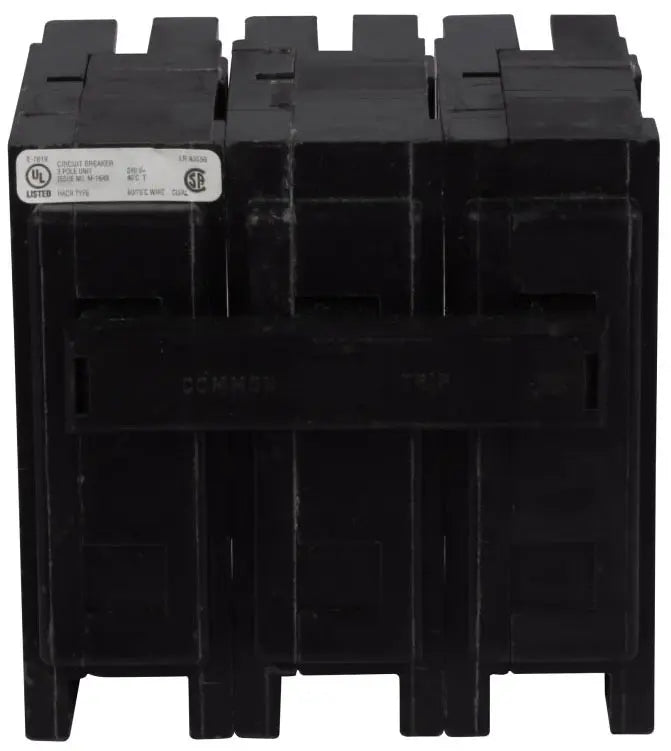

QPHW3100H - Cutler Hammer 100A 240V 3-Pole Plug-On Thermal Magnetic Circuit Breaker 22kAIC

QPHW3100H

QPHW3100H is a Cutler Hammer 3-pole, 100 amp, 240 volt plug-on thermal magnetic circuit breaker designed for industrial applications.This QPHW series circuit breaker features a 22 kA interrupt rating at 240 volts, fixed terminals, and a thermal-magnetic trip unit (T268). It is HACR rated, CSA certified, and UL listed, ensuring compliance with industry standards. The breaker is non-interchangeable and mounts via a plug-on method for secure installation.

• Amperage: 100 A
• Voltage: 240 V
• Poles: 3
• Interrupt Rating: 22 kAIC
• Mounting Type: Plug-On
• Trip Unit: Thermal-Magnetic (T268)
• Terminals: Fixed
• Series/Frame: QPHW
• Certifications: CSA Certified, UL Listed
• HACR Rated
• Non-Interchangeable

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QPHW3100H
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QUICKLAG
• Type : QPHW
• Voltage : 240
• Amperage : 100
• Phase : 3
• Poles : 3
• AIC rating : 22kA@240V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous
• Protection : Thermal Magnetic

Product Data

• UPC : 786679387351
• GTIN : 00786679387351
• Country of Origin : Dominican Republic
• Dimensions : 3.8 in x 4.9 in x 3.3 in (Length/Depth x Height x Width)
• Weight : 1.1
• Certification : CSA Certified,UL Listed,HACR Rated
