Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Molded Case
Description
QPHW3055H

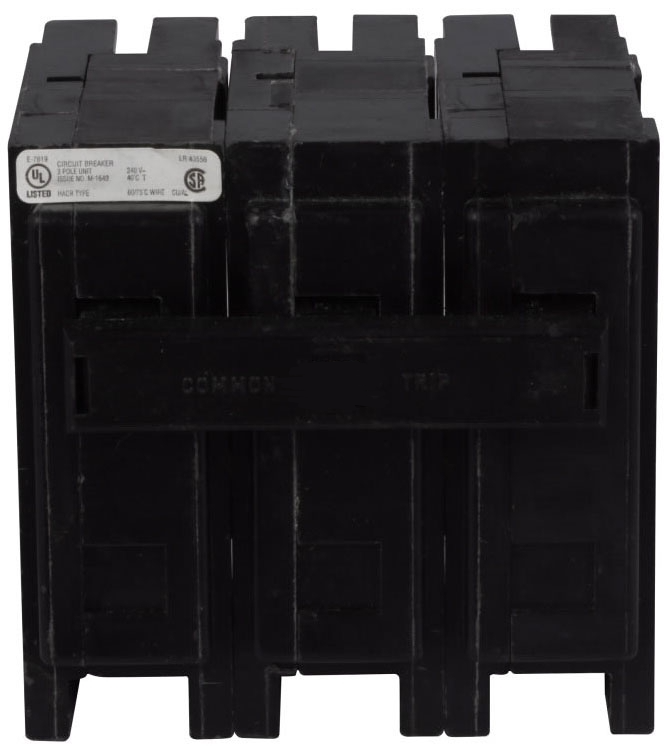

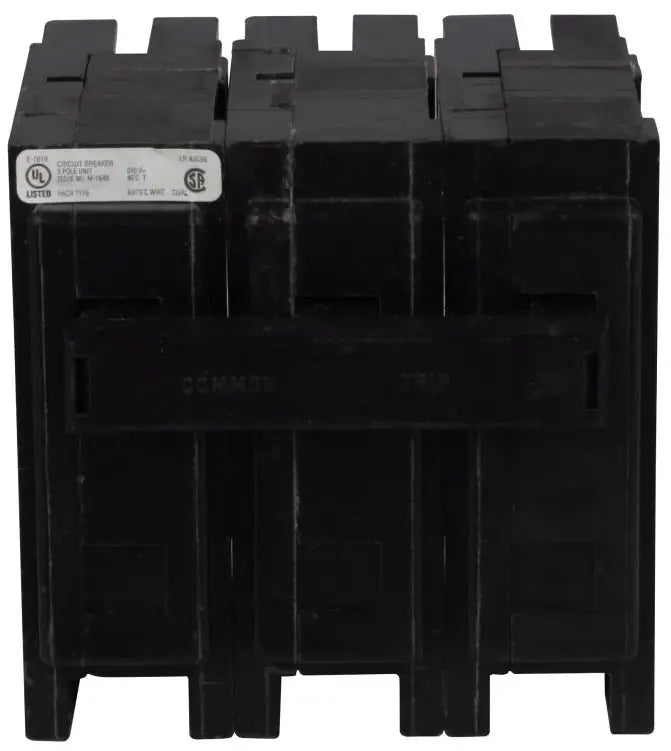

QPHW3055H is a 3 pole, 55 amp, 240 volt plug-in circuit breaker from Cutler Hammer designed for reliable circuit protection.This thermal-magnetic breaker features a plug-in mounting type and is part of the QUICKLAG QPHW series. It offers a 22,000 AIC interrupting rating at 240 volts, suitable for a wide range of commercial and industrial applications. The breaker is HACR rated and switching duty rated for 120 VAC fluorescent light applications. It is built and listed to UL 489 and CSA standards, ensuring compliance with industry safety requirements.
- Key Specifications
- Amperage: 55 Amp
- Voltage: 240 Volt
- Poles: 3
- Mounting Type: Plug-In
- Interrupt Rating: 22,000 AIC @ 240V
- Series/Frame: QUICKLAG QPHW
- Trip Unit: Thermal Magnetic
- Certifications: UL 489, CSA Listed
- HACR Rated
- Switching Duty Rated for 120 VAC Fluorescent Light Applications
Specifications
- Part Number: QPHW3055H
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Quicklag
- Type : QPHW
- Voltage : 240
- Amperage : 55
- Phase : 3
- Poles : 3
- AIC rating : 22kA@240V
- Connection : Plug-In
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- Weight : 1
