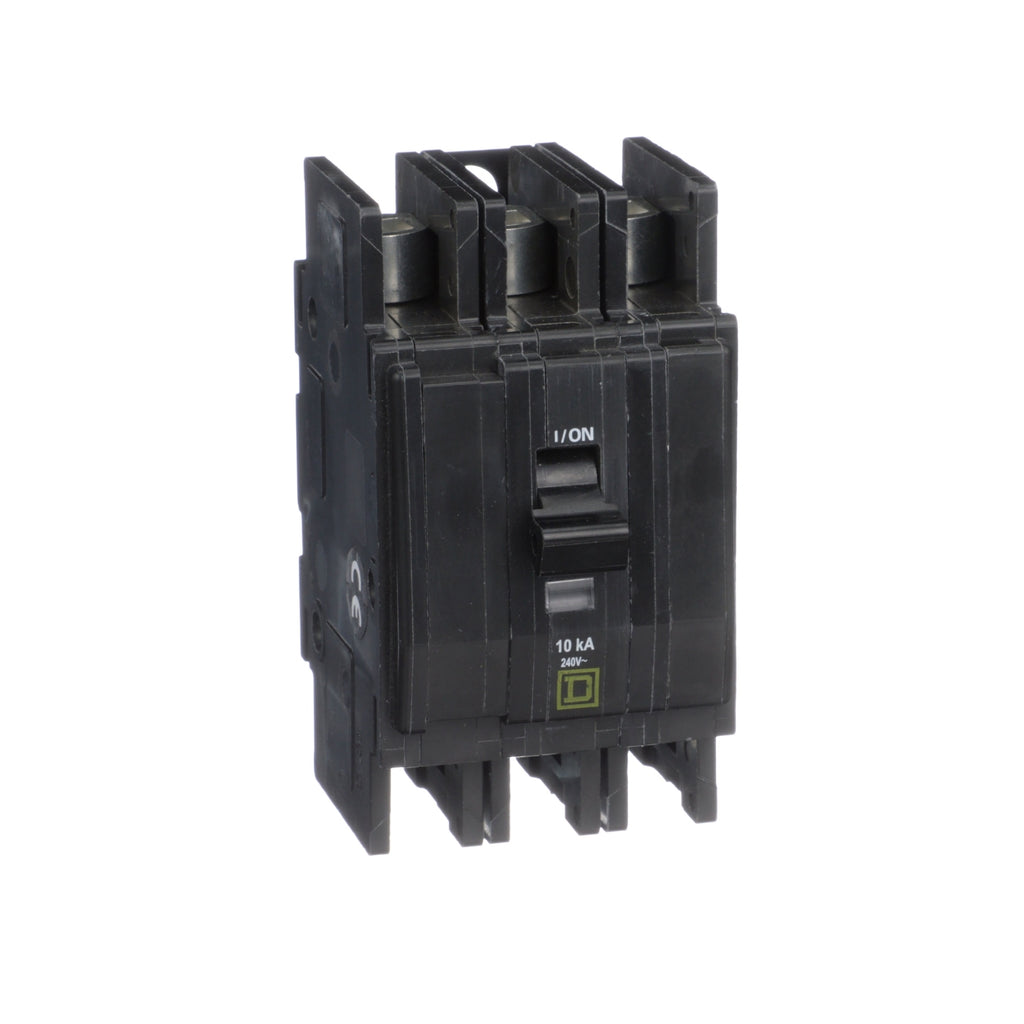

QOUR320 - Square D 20 Amp 240V 3 Pole QO Series Circuit Breaker Plug-In Mounting

QOUR320

QOUR320 is a 20 Amp, 240 Volt, 3 Pole circuit breaker from Square D's QO Series designed for plug-in mounting.QOUR320 features a thermal magnetic trip unit with long time and instantaneous trip functions, a 10kA interrupting rating at 120/240VAC, and is UL and CSA certified. It supports wire sizes from AWG 14 to AWG 8 with pressure plate terminal connections and is compatible with QO load centers and NQ panelboards.

Key Specifications
• Amperage: 20 Amps
• Voltage: 120/240 VAC, 48 VDC
• Poles: 3
• Mounting Type: Plug-In
• Interrupt Rating: 10 kAIC at 120/240 VAC
• Series/Frame: QO
• Trip Unit: Thermal Magnetic
• Certifications: UL, CSA, RoHS, REACh, HACR
• Connection Type: Pressure Plate
• Wire Gauge: AWG 14 to AWG 8
• Dimensions: 2.9 in L x 2.2 in W x 3 in H
• Breaker Feature: Mercury Free

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QOUR320
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case

Product Data

• UPC : 785901079385
• GTIN : 00785901079385
• Country of Origin : Mexico
• Dimensions : 4.05 in (102.87 mm) x 2.25 in (57.15 mm) x 2.95 in (74.93 mm) (Height x Width x Depth)
• Weight : 1.16
• Certification : CSA - UL listed - IEC
• Wire Size : AWG 14...AWG 2 aluminium/copper
