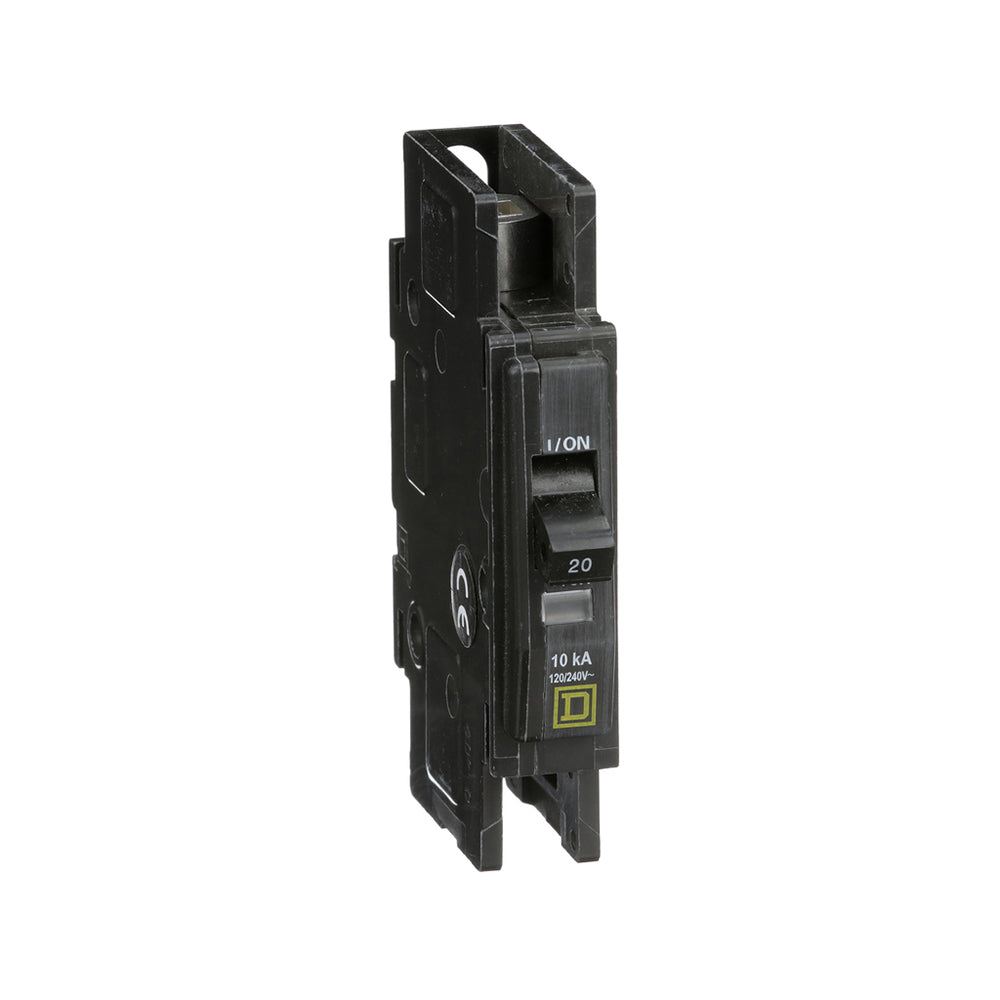

QOUR120 - Square D 20 Amp 1 Pole 120/240V Unit Mount Circuit Breaker with 10kA Interrupt Rating

QOUR120

QOUR120 is a Square D 20 Amp 1 Pole unit mount circuit breaker designed for reliable overcurrent protection.This miniature circuit breaker features a 120/240 Volt AC voltage rating and a 10 kilo-Amp interrupting rating. It is a thermal magnetic type with lug terminals supporting 14 to 2 AWG aluminum or copper wiring. The breaker is HACR and switching duty rated, UL and CSA listed, and IEC certified. It mounts easily in unit mount applications and provides protection against short circuits and overloads.

• Manufacturer: Square D
• Series: QOU
• Amperage: 20 Amps
• Voltage Rating: 120/240 VAC, 48 VDC
• Number of Poles: 1 Pole
• Mounting Type: Unit Mount
• Interrupt Rating: 10 kA at 120/240 VAC
• Trip Unit: Thermal Magnetic
• Wire Size: 14 to 2 AWG Aluminum/Copper
• Certifications: UL Listed, CSA, IEC
• Dimensions (H x W x D): 4.05 x 0.75 x 2.95 inches
• Application: HACR and Switching Duty Rated

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QOUR120
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case

Product Data

• UPC : 785901079262
• GTIN : 785901090410
• Country of Origin : Mexico
• Dimensions : 4.05 in (102.87 mm) x 0.75 in (19.05 mm) x 2.95 in (74.93 mm) (Height x Width x Depth)
• Weight : 0.36
• Certification : IEC, CSA, UL Listed
• Wire Size : AWG 14...AWG 2 aluminium/copper
