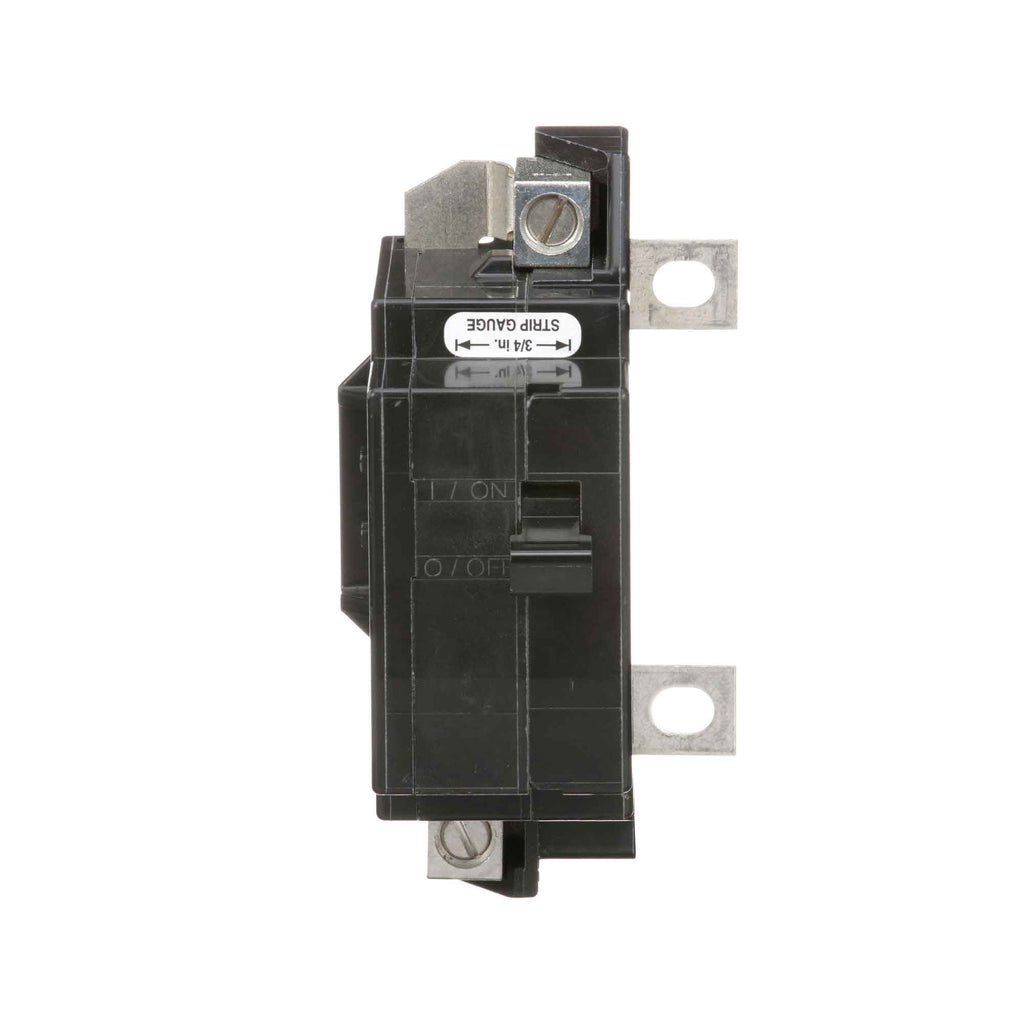

QOM80VH - Square D 80A 2-Pole 120/240V Molded Case Circuit Breaker Bolt-On

QOM80VH

QOM80VH is a Square D molded case circuit breaker designed for reliable circuit protection in residential and commercial applications.This 2-pole breaker is rated for 80 amps at 120/240 volts AC with a 22kA interrupting rating. It features a bolt-on mounting type and belongs to the QO series/frame. The breaker is UL listed and designed for fast installation with a plug-on neutral and compact footprint.

Key Specifications
• Amperage: 80A
• Voltage: 120/240 VAC
• Poles: 2
• Mounting Type: Bolt-On
• Interrupt Rating: 22kA
• Series/Frame: QO
• Trip Unit: Thermal Magnetic
• Certifications: UL Listed
• Dimensions: Approx. 5.09" H x 3.47" W x 5.00" D
• Country of Origin: Mexico

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QOM80VH
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QOM Series
• Type : QOM
• Voltage : 240
• Amperage : 80
• Phase : 1
• Poles : 2
• AIC rating : 22kA@240V
• Connection : Bolt-on
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Lug
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 4 AWG (Cu/Al) Max. Wire Size 2/0 AWG (Cu/Al)
• Breaker Type : Standard
• Protection : Thermal Magnetic

Product Data

• UPC : 785901054726
• GTIN : 00785901054726
• Country of Origin : Mexico
• Dimensions : 5.08 in (129 mm) x 3.5 in (88 mm) x 5 in (127 mm) (Height x Width x Depth)
• Weight : 1.27
• Panel Type : QO Load Center, Homeline Load Center
• Standards : UL Listed, CSA
• Certification : UL Listed, CSA
• Wire Size : AWG 4 to AWG 2/0, Aluminum/Copper
